PTFE Lined Diaphragm Valve Manufacturer for Chemical Industry Pune

FlowBiz PTFE Lined Diaphragm Valves: Engineered Corrosion Resistance for High-Purity Isolation

In industrial chemical processing, water treatment plants, and corrosive utility handling, standard metal valves can fail due to rapid chemical corrosion or line contamination. FlowBiz Exports Pvt. Ltd. eliminates these operational risks with our premium PTFE Lined Diaphragm Valves.

A diaphragm valve features a flexible, chemically inert elastomeric or fluoropolymer diaphragm that is driven down by an internal compressor into a smooth, weir-style body bed. When fully pressed down, the diaphragm forms a tight mechanical seal across the flow stream.

By lining the entire internal cavity of the cast iron or stainless steel body with a thick layer of high-density PTFE (Polytetrafluoroethylene), the fluid pathway is completely isolated from the supporting metal housing. This pocketless, cavity-free design prevents aggressive acids, volatile solvents, or ultra-pure liquids from interacting with raw metal. It stops localized corrosion while completely eliminating dead zones where fluid can stagnate, ferment, or crystallize.

Technical Specifications & Parameter Matrix

FlowBiz lined diaphragm valves are engineered, assembled, and rigorously tested to conform to international design norms and structural parameters.

Key Performance & Structural Advantages

1. Exceptional Chemical and Thermal Resistance

The high-purity PTFE liner provides a dense, slick barrier that is highly non-reactive with aggressive media, including concentrated acids, caustic alkalis, and reactive solvents. This non-stick surface helps maintain a clean fluid stream by minimizing leaching or contamination, making these valves ideal for demanding chemical processing environments.

2. True Zero-Leakage Packingless Isolation

Unlike standard gate or globe valves that use compressed stem packing to stop leaks around the moving shaft, a diaphragm valve features a packingless design. The flexible diaphragm physically seals the fluid within the lower body cavity, completely separating the internal fluid path from the upper bonnet and stem threads. This design eliminates fugitive emissions, prevents stem packing leaks, and keeps process fluids from escaping into the environment.

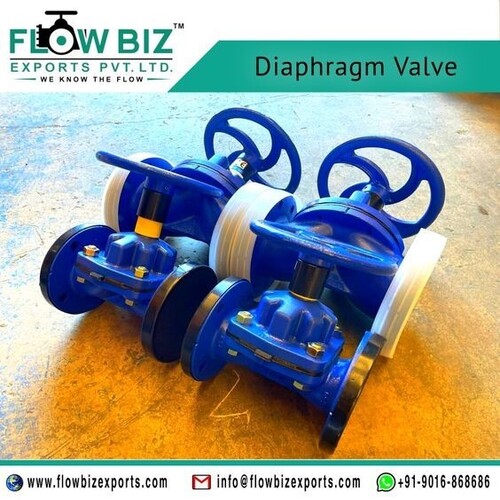

3. Streamlined Flange Type Installation

Our blue PTFE-lined valves feature integrated flanged ends designed to bolt directly onto matching pipe spools. This connection profile distributes physical pipeline bending stresses evenly across the multi-bolt perimeter. This limits the risk of joint distortion and gives technicians a clean way to isolate, unbolt, and maintain downstream assets with minimal facility downtime.

Extensive Pan-India & Global Distribution Matrix

Operating from our primary distribution and manufacturing corridors in Pune and Thane, India, FlowBiz Exports Pvt. Ltd. leverages a highly responsive logistical network. We serve as a trusted partner for chemical plants, refineries, and water distribution networks across India and international markets, supplying to:

• Maharashtra: Thane, Pune, Mumbai, Nashik, Pune, Aurangabad, Satara, Sangli, Nagpur, Kolhapur

• Gujarat: Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch

• Pan-India Hubs: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and all major industrial zones.

Every single valve lot undergoes strict quality testing, including mandatory high-voltage spark testing to confirm liner thickness integrity, hydrostatic shell validation, and pneumatic seat diagnostics to ensure zero structural weeping before site dispatch.

Frequently Asked Questions (FAQs)

Q: Why is a PTFE-lined diaphragm valve preferred over a standard ball valve for handling abrasive chemical slurries?

A: Standard ball valves feature internal body pockets that trap media when the valve cycles. When handling fluids with abrasive particulates or crystalline chemicals, these materials settle into the dead zones, drying out and forming hard scale that jams the ball and tears up the soft seats. A diaphragm valve features a smooth, cavity-free flow channel. The flexible diaphragm continuously sweeps against the weir bed, physically wiping particulates away during rotation to prevent clogs or scale accumulation.

Q: What is the recommended step-by-step installation process for a flanged diaphragm valve?

A: 1. Thoroughly clean the faces of both the valve flanges and the pipeline flanges to remove dirt, scale, or welding slag.

2. Align the pipeline piping to ensure it sits parallel with the valve face, preventing alignment stresses.

3. Insert a compatible industrial gasket between the sealing faces.

4. Pass high-tensile fasteners through the bolt holes and tighten the nuts progressively in an alternating star-pattern sequence using a torque wrench to ensure uniform gasket compression and a leak-proof mechanical joint.

5. Manually cycle the handwheel to verify smooth, unhindered operation.

Q: How does high-voltage spark testing verify the quality of a lined valve?

A: During our factory quality control audits, a non-destructive high-voltage spark tester is passed over the entire surface of the internal PTFE lining. If there are any hidden pinholes, micro-cracks, or thin spots within the fluoropolymer barrier, an electrical arc will bridge the gap to the underlying metal body. This rigorous test ensures that only 100% continuous, defect-free linings are dispatched to the field.

Q: Can these manual diaphragm valves be converted to automated control networks later?

A: Yes. While outfited with ergonomic manual handwheels for precise, direct human control, the top-bonnet and yoke geometries are designed to accept technical modifications. The manual assembly can be removed to mount automated linear pneumatic actuators or digital electric motors, allowing for seamless integration into automated process loops.

Q: What is the streamlined process for requesting a technical quotation or ordering bulk allocations?

A: Simply contact our project sales desk with your specific pipeline parametersincluding nominal size ( to 12 inches ), fluid chemical composition, operating temperatures, and pressure baselines. Our engineering team will evaluate your bill of materials, compile a transparent price quotation, and coordinate production scheduling to ensure your assets are tested and dispatched to align perfectly with your facility's installation timeline.
