FlowBiz PTFE Lined Diaphragm Valves: Precision Throttling and Advanced Chemical Isolation Solutions

In aggressive chemical processing and ultra-pure fluid industries, valves must handle two challenging demands simultaneously: managing highly corrosive media (such as hot acids, caustics, and reactive solvents) while providing precise, micro-adjustable flow throttling. Standard gate or ball valves can struggle with fine flow modulation and are prone to trapping media in internal cavities, which leads to fluid degradation and dangerous cross-contamination.

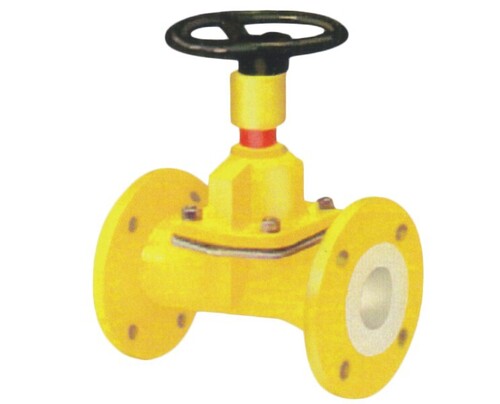

PTFE Lined Diaphragm Valves provide a high-performance solution to these issues. By combining a flexible, chemical-resistant elastomeric diaphragm with a heavy-duty metallic body completely encapsulated in a thick, uniform layer of PTFE (Polytetrafluoroethylene), these valves achieve complete isolation of all working parts from the process stream. The fluid never makes contact with the bonnet assembly, stem threads, or upper mechanical internals, ensuring leak-free performance and zero product contamination.

Technical Specifications & Compliance Engineering

FlowBiz PTFE Lined Diaphragm Valves are precision-cast and lined in strict compliance with international pressure containment and face-to-face metrics.

Key Engineering Parameters

Robust Body Material Options

• Ductile Iron: GGG40.3 / ASTM A395 (Excellent impact and pressure shock resistance)

• Cast Carbon Steel: ASTM A216 Gr. WCB (Standard for heavy-duty industrial infrastructure)

• Stainless Steel 304: ASTM A351 Gr. CF8 / S.S. 304 (Superior external atmospheric corrosion protection)

• Stainless Steel 316: ASTM A351 Gr. CF8M / S.S. 316 (Premium grade for marine and highly acidic plant environments)

Critical Engineering Features & Process Benefits

1. Exceptional Throttling and Linear Flow Control

Unlike standard turn-isolation valves that exhibit erratic flow behavior when cracked open, the linear travel of a diaphragm valve offers excellent throttling performance. The flexible diaphragm can be positioned smoothly at intermediate travel points, allowing operators to modulate flow volumes with high repeatability and minimal localized turbulence.

2. Complete Component Isolation & Zero Cavity Design

The weir-style or straight-through interior structure features a smooth, cavity-free profile. Because the diaphragm is clamped tightly between the valve body and the bonnet, it forms a dynamic fluid boundary. This configuration prevents fluid from pooling or stagnating inside the valve body, making it the premier choice for high-purity applications, sticky slurries, and viscous media.

3. Advanced 3mm to 5mm Fluoropolymer Lining

Our specialized lining facility applies a thick 3mm to 5mm layer of pure PTFE, securely bonding it to the shot-blasted interior of the cast metal body. This creates an inert barrier that stops aggressive chemical attacks. Supported by an SS 304 internal core support disc, the assembly handles high thermal loads up to 200C without delamination or vacuum collapse.

Comprehensive Industrial Application Scope

Our heavy-duty, manual PTFE lined diaphragm valves deliver safe, dependable service across diverse sectors:

• Chemical & Petrochemical Complexes: Isolating and throttling concentrated sulfuric, nitric, and hydrochloric acids, chlor-alkali fluids, and solvents.

• Nuclear Power Utilities: Regulating high-purity auxiliary loops and demineralized water headers where zero leakage is mandatory.

• Oil & Gas Refineries: Managing aggressive wastewater treatment, sour gas treatment, and chemical injection lines.

• Industrial Water & Effluent Handling: Controlling highly abrasive chemical dosing solutions, flocculants, and corrosive industrial slurry streams.

Elite Manufacturing Footprint & Global Supply Network

FlowBiz Export Private Limited coordinates a highly synchronized manufacturing and logistics network from our primary technical hub in Gandhinagar, Gujarat, India. We serve as a certified manufacturer, supplier, and exporter across major industrial corridors throughout the nation and globally:

Pan-India Supply Footprint: Rajkot, Ahmedabad, Vapi, Valsad, Surat, Gandhinagar, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur, Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and all primary industrial zones.

Frequently Asked Questions (FAQ)

Q: What is the main operational advantage of a weir-style diaphragm valve in throttling service?

A: In a weir-style design, the valve body features an internal raised ridge or "weir" that reduces the required travel distance for the diaphragm to achieve a full shut-off. This design minimizes mechanical strain on the flexible elastomeric element during throttling, lowers operating torque on the handwheel, and provides highly sensitive, linear flow control across the first and last quadrants of valve opening.

Q: Why is a thick 3mm to 5mm PTFE lining required, and how is it quality-tested?

A: Aggressive chemicals can migrate through ultra-thin polymer coatings over time via molecular permeation. A robust 3mm to 5mm thickness provides a deep barrier that completely stops permeation. To ensure absolute integrity before shipping from Gandhinagar, every lined body undergoes a high-voltage non-destructive spark test to detect any microscopic pinholes, cracks, or lining discontinuities.

Q: What is the exact workflow for ordering a customized port size or connection standard?

A: Custom integration is built directly into our production pipeline:

1. Parameter Submission: Sourcing teams provide their exact layout specsincluding preferred drilling templates (ASA #150, DIN, or BS), face-to-face dimensions, media chemistry, and specific port sizing requirements.

2. Engineering Review: Our design division models the valve body casting and thickness matrix to match your piping specs.

3. Fabrication & Testing: The valve body is cast from your chosen material (Ductile Iron, WCB, CF8, or CF8M), lined, assembled with an SS 304 disc core, and hydrostatically tested per BS EN 12266-1&2 before global export dispatch.

Q: How often does the flexible diaphragm element need to be inspected or replaced?

A: Because the diaphragm is a wearable component, maintenance intervals depend on your system's cycle frequency, fluid abrasiveness, and temperature levels. Since the manual handwheel design features a simple top-entry bonnet, maintenance teams can quickly unbolt the bonnet nuts, lift off the upper assembly, inspect or replace the flexible diaphragm, and re-torque the boltsall without removing the valve body from the pipeline framework.
