Pot Strainer Manufacturer in Vadodara

Price 1700 INR/ Unit

Get a Price/Quote

MOQ : 1 Number

Pot Strainer Manufacturer in Vadodara Specification

Valve Size
DN25 to DN600

Connection Type
Flanged, Screwed/BSP/NPT

Features
Corrosion resistant, easy maintenance, high dirt holding

Control System
Manual

Material
Stainless Steel 304/316, Carbon Steel, Mild Steel

Valve Type
Strainer

Structure
Pot/basket type strainer body

Voltage
Not required (manual)

Application
Liquid and gas flow systems, chemical processing, water treatment, industrial pipelines

Sealing
Gasket (EPDM/NBR/PTFE as per fluid)

Type
Pot Strainer

Power
Manual operation

Pressure
Up to 16 bar

Media
Water, oil, chemicals, gases

Port Size
1 to 24 (customizable as per requirement)

Temperature
Up to 220°C

Disc
Removable strainer mesh basket

Pin
Stainless steel pin

Finish
Shot blasted, painted, or polished

End Connections
ASME/ANSI/DIN/BS

Lining Option
Rubber or PTFE lining available on request

Design Standards
ASME B16.5, IS 2825

Body Thickness
As per design standard

Mesh Size
10 to 500 micron (customized)

Inspection Port
Provided for cleaning

Installation
Horizontal/vertical orientation

Flow Direction
Uni-directional

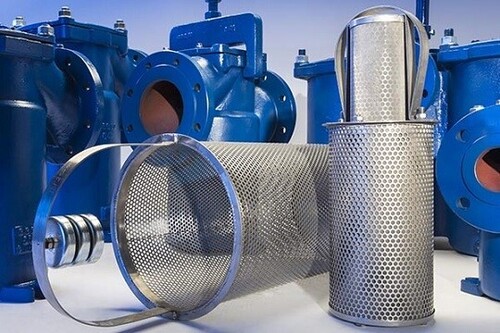

About Pot Strainer Manufacturer in Vadodara

FlowBiz Pot Strainers are made in a wide variety of needed specifications, Temperatures, Force Rating & various types to meet the specific needs of Straining applications in the HVAC System, Water Line, Oil Field, and Agriculture.

Features:

It is stopping a regular clean-up process.
Keep constant system pressure drop.
The strainer body has two sufficiently different chambers.
They are sealed to avoid mixing filtered and unfiltered water provided with two drain pipes at the base and side of the chambers.
To wash out deposits and foreign particles.
For cleaning the strainer filter, a nylon brush/nylon rod is provided along with the strainer filter, which is connected to a centric stick and is operated electrically by a motorized gearbox.
This arrangement avoids the frequent opening of the pot strainer for cleaning the filter element.

Premium Quality Pot Strainers

Manufactured in Vadodara, our pot strainers are built to international standards (ASME/ANSI/DIN/BS) and offer reliable filtration for diverse industrial applications. Each unit is customizable for mesh size, port configuration, and lining, ensuring compatibility with specific fluid types and operational needs. Opt for shot blasted, painted, or polished finishes for enhanced durability and appearance.

Versatile Applications

Pot strainers are widely used in liquid and gas flow systems, chemical processing, water treatment facilities, and industrial pipelines. Their adaptable design and robust construction make them suitable for demanding environments, providing consistent protection against contaminants and prolonging system life.

Easy Maintenance and Operation

Designed for manual operation, our pot strainers incorporate features such as inspection ports for easy cleaning and removable mesh baskets for swift replacement. Horizontal and vertical installation options, along with various sealing and connection types, simplify integration into existing pipeline configurations.

FAQ's of Pot Strainer Manufacturer in Vadodara:

Q: How is a pot strainer installed in a pipeline system?

A: Pot strainers can be installed in either horizontal or vertical orientations using flanged or screwed connections (BSP/NPT), compatible with diverse pipeline designs. Installation is straightforward and supports customization for port size and end connection standards.

Q: What is the process for cleaning and maintaining the pot strainer?

A: The strainer features an inspection port that allows for convenient access and cleaning. Maintenance involves manually removing the mesh basket to clear accumulated debris, ensuring optimal flow and minimal downtime.

Q: Where are these pot strainers commonly used?

A: Our pot strainers are utilized in liquid and gas flow systems, chemical processing units, water treatment plants, and various industrial pipelines across India and global markets. Their design facilitates efficient contaminant removal in challenging environments.

Q: When should you consider using a lined pot strainer?

A: Lining options such as rubber or PTFE are recommended when handling aggressive chemicals or corrosive fluids, to extend the strainer's lifespan and maintain sealing integrity. These linings are available upon request based on application needs.

Q: What are the benefits of choosing this pot strainer manufacturer in Vadodara?

A: Benefits include high dirt holding capacity, corrosion resistance, customizable features, compliance with international design standards (ASME B16.5, IS 2825), and after-sales support from an experienced exporter, manufacturer, supplier, and trader.

Q: How does mesh size affect strainer performance?

A: Mesh size, ranging from 10 to 500 microns, determines the filtration level. Finer meshes capture smaller particles, which is crucial for applications requiring higher purity, while larger meshes provide less restriction to flow for general filtration needs.
