High-Performance Industrial Globe Valves FlowBiz Exports

Welcome to FlowBiz Exports, a premier manufacturing benchmark for high-precision fluid isolation and regulation technology. Operating out of our advanced production center in Kalol, Gujarat, we are a leading manufacturer, supplier, and global exporter of heavy-duty Industrial Globe Valves.

Our comprehensive sales and logistics network seamlessly supplies critical industrial zones across Indiaincluding Kalol, Rajkot, Ahmedabad, Vapi, Surat, Mumbai, Pune, and Chennaialongside dedicated freight shipping to global international markets.

Technical Specifications & Pattern Matrix

FlowBiz Globe Valves are specialized linear-motion instruments explicitly engineered to start, stop, and continuously throttle fluid streams. Characterized by a rugged, spherical body geometry, these valves feature an internal cavity divided into two halves by a robust metallic baffle.

Core Engineering Features & Design Advantages

1. Advanced Throttling & Modulating Mastery

The primary advantage of a globe valve over a ball or gate valve is its superb fluid-modulating capability. Because the distance between the plug disc and the stationary seat ring is directly proportional to the linear rotation of the stem, plant operators gain uniform, incremental control over fluid velocity, pressure drops, and system temperature gradients.

2. Shorter Linear Stroke & Fast Seating

Compared to a standard gate valve of an equivalent port diameter, a globe valve requires significantly fewer turns of the manual handwheel to shift from fully closed to fully open. This shorter linear stroke reduces routine operation time, minimizes packing friction wear, and speeds up plant sectionalization.

3. Simplified Inline Maintenance & Re-facing

The internal seating architecture of a globe valve makes it highly economical over its lifetime. Because the stationary seat ring is easily accessible from the top bonnet cavity, plant technicians can easily machine, lap, or resurface the seating faces inline without cutting the entire valve body out of the steel pipeline.

4. Stop-Check Multi-Utility Configuration

When configured with a floating, unattached stem-disc design, our globe valve can function simultaneously as a stop-check valve. In this mode, it can be mechanically driven down to isolate flow entirely, or backed out to allow forward fluid flow while automatically preventing catastrophic downstream backflow (reversal of media) if system pressure suddenly drops.

Strategic Industrial Cross-Industry Applications

FlowBiz cast iron globe valves are highly sought after by procurement engineers and utility managers across critical process networks:

• Cooling Water Utilities: Regulating large-volume chiller lines, heat exchanger flows, and auxiliary cooling tower grids.

• Fuel Oil Management: Critical control points, burner supply manifolds, and heavy fuel oil transmission loops.

• Steam & Condensate Returns: Managing auxiliary steam lines, boiler feed networks, and low-pressure system drains.

• Process Chemical Loops: Safely isolating and throttling stable liquid compounds and light industrial gases.

Frequently Asked Questions (FAQ)

Q: Why must engineers analyze pressure drop when specifying a globe valve?

A: Inside a globe valve, fluid cannot pass in a straight line; it is forced to make two sharp 90 turns up and through an internal baffle seat. While this tortuous path creates an exceptional environment for precise fluid throttling and control, it inherently introduces a higher pressure drop (head loss) compared to full-bore gate or ball valves. This hydraulic resistance must be accounted for during pump sizing.

Q: What upgrades are required if a globe valve is subjected to high-differential pressure throttling?

A: Under severe high-differential pressures, the fluid velocity passing across the seat increases exponentially, which can cause standard metals to wash away via cavitation or wire-drawing. For these intense duties, FlowBiz replaces standard seating components with a specially engineered valve trim that utilizes hardened alloys, such as Stellite facings or 13% Chrome overlays, protecting the valve internals from premature failure.

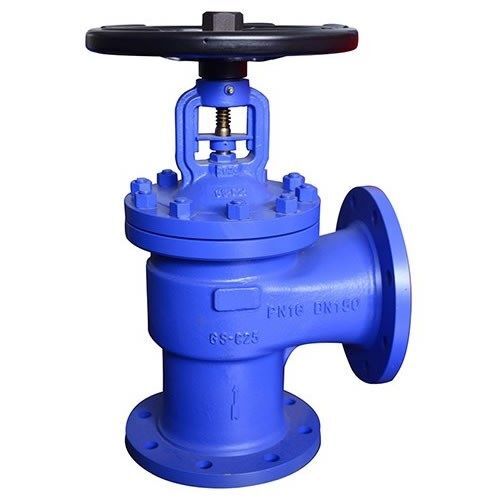

Q: Why is a blue epoxy coating applied over the cast iron body instead of a polished finish?

A: For structural pressure containment in water and fuel utilities, high-strength cast iron provides excellent vibration damping and rigidity. Because cast iron is prone to external rust when exposed to humid ambient plant conditions, we sandblast the housings and bake on a heavy-duty blue epoxy protective coating. This coating seals the metallurgy away from ambient moisture, preventing chemical oxidation and simplifying external washdowns.

Q: Why is it critical to install a globe valve in accordance with the directional body arrow?

A: Unlike bi-directional gate valves, globe valves are designed to receive fluid forces in a specific orientationtypically underneath the plug disc. Installing the valve in reverse forces the pipeline pressure to push down on top of the disc when closed, putting immense stress on the stem threads and gland packing, which can lead to premature structural packing failure and difficult manual operation.

Q: How can procurement teams in industrial manufacturing hubs like Kalol source custom lots?

A: FlowBiz Exports manages a fully integrated supply framework. Industrial buyers, traders, and engineers can contact our Kalol sales headquarters directly via phone or digital portal. Our technical application team will analyze your systems exact flow coefficient (Cv), fluid dynamics, and pressure variables to deliver certified technical datasheets and highly competitive factory-direct B2B pricing.

Are you balancing a centralized cooling tower manifold or upgrading a heavy-duty fuel oil blending loop? Contact our Kalol engineering office today to receive complete dimensional layouts and a personalized commercial quotation.
