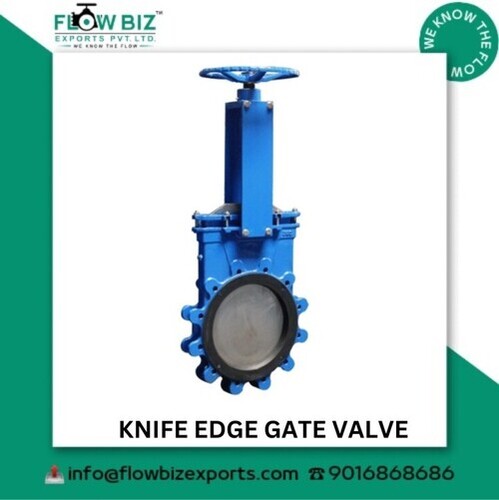

FlowBiz Premium Knife Edge Gate Valves: High-Performance Slurry and Water Isolation from Surat

Managing industrial process lines that carry suspended solids, fibrous wastewater, thick pulp, or high-temperature water requires a valve designed to cut through obstructions. Standard gate valves feature bottom pockets where particles accumulate, preventing complete closure. FlowBiz Exports Pvt. Ltd. eliminates this operational bottleneck with our matchless Knife Edge Gate Valves (KEGV).

Precision-engineered at our advanced manufacturing hub in Surat, Gujarat, these heavy-duty linear isolation valves are explicitly designed to handle challenging media. Featuring a sharpened, polished gate edge, the valve shears through thick slurries, scale, and viscous materials to seal tightly against a resilient or metal seat. This makes them a critical asset for heavy industries where absolute reliability is non-negotiable.

Technical Specifications & Parameter Matrix

Our Surat-manufactured knife edge gate valves are built, tested, and certified to meet high industrial safety and pressure containment benchmarks.

Key Performance & Design Advantages

1. True Shearing Gate Mechanics

The bottom edge of the carbon steel gate is precision-machined into a sharp bevel. As the manual handwheel is turned to close the valve, the descending gate actively slices through thick fluid columns, fibers, and hard scale. The body features a cavity-free base; instead of settling into a groove, solids are pushed aside into the flowing stream, ensuring a positive, tight seal every time.

2. Robust Carbon Steel Structural Rigidity

Unlike lightweight alternatives, our valves are cast from premium carbon steel to withstand intense pipeline forces, piping misalignments, and continuous system vibrations. The polished gate face minimizes mechanical friction against the internal packing gland, drastically reducing the physical torque required to operate the handwheel.

3. Secure Flange Type Installation

Large-diameter pipelines handling high-temperature media can experience mechanical stresses from thermal expansion. The integrated flanged connection profile bolts directly to matching pipe spools, distributing physical joint stresses uniformly. This design simplifies inline asset management, allowing technicians to inspect or repack the valve packing box efficiently.

Transparent Procurement, Packaging, and Sample Controls

FlowBiz Exports Pvt. Ltd. supports industrial procurement managers with transparent, business-friendly supply services from our Surat production hub:

• Strict Packaging Standards: Every valve lot undergoes thorough cleaning and is packed in high-strength, impact-resistant materials. This preserves the polished exterior finish and protects critical seating faces during long-distance domestic transit or maritime export.

• Streamlined Technical Samples: To help your engineering team evaluate structural tolerances firsthand before initiating a large-scale project bill of materials, physical valve samples are available on request at a competitive, nominal sale price.

• Comprehensive Nationwide Network: Operating as a celebrated manufacturer, exporter, supplier, and trader, we leverage an agile distribution network to ensure prompt delivery across India's primary industrial zones.

Frequently Asked Questions (FAQs)

Q: Why is a knife edge gate valve specified over a standard wedge gate valve for wastewater and slurry lines?

A: Standard wedge gate valves feature a deep wedge pocket at the very bottom of the valve body where the disk lands to seal. In water processing, slurry, or effluent lines, heavy solids settle into this pocket and compress over time. This prevents the wedge from driving down completely, causing continuous down-line leaking and seat scoring. A knife edge gate valve features a straight-through, pocketless bottom. The gate slides down between tight guide lugs, scraping its own path clean and pushing solids back into the line to ensure a true bubble-tight isolation.

Q: What is the recommended step-by-step installation process for a flanged knife edge gate valve?

A: 1. Thoroughly clean the faces of both the valve flanges and the pipeline flanges to remove dirt, scale, or welding slag.

2. Confirm the pipeline flow arrow marked on the valve body points in the direction of the media travel (for standard uni-directional models).

3. Align the pipeline to sit perfectly parallel with the valve face to prevent body distortion or alignment stresses.

4. Insert a compatible high-temperature industrial gasket between the sealing faces.

5. Pass high-tensile fasteners through the bolt holes and tighten the nuts progressively in a star-pattern sequence using a torque wrench to ensure uniform gasket compression.

Q: How do the polished surface finish and blue coating benefit the valve's operational lifespan?

A: Industrial processing plants, water treatment facilities, and pump houses frequently experience high humidity, moisture condensation, and chemical vapors. The specialized, non-porous industrial blue coating applied to our valves acts as a durable physical shield. This stops oxygen and atmospheric moisture from interacting with the underlying carbon steel body, preventing external rust, pitting, and environmental degradation.

Q: When should an industrial facility choose a manual valve over an automated version?

A: Manual handwheel knife edge gate valves are highly recommended for isolation points that are cycled primarily during maintenance turnarounds, safety checks, or system modifications. Because these valves do not rely on electrical wiring, pneumatic air lines, or digital control loops, they remain 100% operational during total plant power failures, providing a dependable and cost-effective mechanical safety barrier.

Q: What steps are included in the quality validation process at the Surat manufacturing plant?

A: Every single valve batch undergoes non-destructive examination (NDE) alongside mandatory hydrostatic shell and pneumatic seat-leakage testing. We verify that each valve holds pressures well beyond its rated class without structural weeping or drop-by-drop seat bypass, supplying every batch with material traceability and test certificates before field dispatch.

Optimize Your Fluid Control Grid with FlowBiz Engineering

Are you configuring a new industrial cooling loop, upgrading a wastewater processing header, or replacing an unreliable utility valve? Contact the engineering and sales desk at FlowBiz Exports Pvt. Ltd. today. Share your sizing requirements, pressure ratings, and media characteristics to receive a detailed technical evaluation and a competitive, fast quotation.
