High-Performance Fully Jacketed Ball Valves | FlowBiz Valves

FlowBiz Valves is a premier, engineering-driven manufacturer, supplier, and global exporter of high-integrity Jacketed Ball Valves. Operating through advanced heavy engineering and production infrastructure, we precision-engineer these temperature-control isolation systems. They are developed specifically for chemical processing, pharmaceuticals, petrochemical refining, polymers, and food & beverage production pipelines requiring precise, uncompromised thermal management.

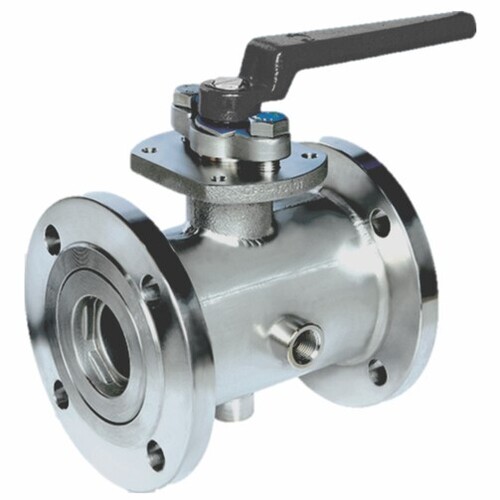

The FlowBiz Fully Jacketed Ball Valve series features a robust thermal encapsulation jacket fabricated or cast directly onto the outer pressure-containment body. By continuously circulating hot utility steam, thermal oils, or cooling media through this secondary outer layer, heat is transferred uniformly across the internal fluid boundaries. This high-performance insulation structure eliminates internal cold spots, preventing thermal shock, crystallization, or instantaneous media seizing within the line.

We maintain a highly responsive logistics and distribution matrix supplying critical process infrastructure across India and international markets, including:

• Maharashtra: Mumbai, Pune, Nashik, Nagpur, Aurangabad.

• Gujarat: Ahmedabad, Gandhidham, Kutch, Vapi, Valsad, Ankleshwar, Kalol.

• Madhya Pradesh: Indore, Dewas, Bhopal.

• Global Export Footprint: Pan-India logistics centers and comprehensive distribution networks across Africa.

Technical Specifications & Compliance Matrix

Our fully jacketed production series is precision-machined from traceable stock to satisfy strict international pressure vessel and pipeline criteria:

Target Viscous Media & Industrial Applications

Our fully jacketed ball valves serve as a critical alternative for transport networks carrying highly viscous media that solidify or freeze at normal atmospheric temperatures. They provide constant heat transfer and ensure a smooth liquid state for:

• Heavy Hydrocarbons & Binder Stocks: Asphalt, Bitumen, Tar, and Wax lines.

• Volatile Chemical Aromatics: Benzene, liquid elemental Sulphur, and Molten Sulphur lines.

• Industrial Polymers & Synthetics: Polyurethane, Liquid Resins, and thick industrial glues.

• Process Food Chemistry: Chocolate mass, Edible Oils, Fats, Greases, and Fatty Alcohols.

 FlowBiz Jacket Fluid Circulation [Hot Steam / Thermal Oil Inlet] Full-Length External Heat Preservation Jacket Eliminates micro-gaps and internal cold spots Maintains aggressive or sensitive media (Resins, Bitumen, Chocolate) uniformly liquid and flowing. [Hot Steam / Thermal Oil Outlet]

Strategic Design & Mechanical Safety Features

1. Oversized Flange Architecture for Bolting Clearance

Because the external heating jacket extends fully from one flange face to another, the outer diameter of the valve body is wider than a standard valve. To accommodate this extra width while giving maintenance crews plenty of room to tighten line fasteners, FlowBiz utilizes a specialized oversized flange layout.

For example, a valve with a 2" nominal bore size (DN50) is engineered with 3" pipeline flanges (DN80). This design provides plenty of space for bolting clearance and tool access, ensuring straightforward manual installation and easy alignment with matching pipe flanges.

2. Multi-Channel Versatility & Port Dynamics

To accommodate varied piping specifications and plant space constraints, our jacketed valves offer excellent design flexibility:

• Two-Piece & Three-Piece Configurations: Available in two-piece configurations for a compact profile with fewer body seams, or three-piece swing-out configurations to allow rapid inline seat servicing.

• Single & Double Channels: Can be supplied with single or double internal utility channels to precisely control thermal flow distribution.

• Bore Selection: Offered in Full Bore designs (inner diameter matches the pipeline exactly to reduce fluid friction and keep pressure drops near zero) or standard bore profiles for non-critical pipelines.

3. High-Safety Fire-Safe Design & Antistatic Function

Handling flammable hydrocarbons, benzene, or molten sulphur at high temperatures requires uncompromised personal and process safety boundaries:

• Fire-Safe Design: Built to protect assets in high-risk zones. If an unexpected facility fire destroys the primary soft polymer seats, secondary metal-to-metal contact boundaries automatically engage. This maintains tight inline containment and prevents volatile fluid from fueling the fire.

• Antistatic Function: High-velocity fluid movement through process lines can generate significant electrostatic charges. Our built-in antistatic grounding features maintain permanent electrical continuity across the valve trim, safely discharging static build-up to eliminate spark risks in volatile environments.

Metallurgy & Premium Sealing Matrix

Achieving an operational lifecycle with minimal maintenance requires selecting the ideal material configuration for your fluid's chemical and thermal profiles:

• High-Grade Body Materials: Cast or forged from premium Carbon Steel for heavy mechanical strength, Stainless Steel (SS304, SS316) for superior chemical resistance, or Alloy Steel for specialized high-temperature profiles.

• External Jacket Construction: Fabricated using heavy-gauge Carbon Steel, SS304, or SS316 to match your facility's utility line metallurgy and resist atmospheric corrosion.

• Internal Ball & Trim: High-precision floating balls machined from solid SS316 or premium chrome-plated steel, ground to a mirror finish to minimize operational friction.

• Advanced Sealing Seats: Fitted with high-grade polymer seats tailored to provide dependable chemical compatibility and Class VI leak-tight performance under demanding pressure loads.

Frequently Asked Questions (FAQs)

Q: How does the steam jacket enhance the performance of jacketed ball valves over standard tracking?

A: Standard external heat tracing tape or thermal wraps often distribute heat unevenly, creating localized cold spots inside the valve body where viscous media can solidify and jam the ball mechanism. A FlowBiz fully jacketed ball valve features a welded or cast outer jacket that completely encapsulates the valve body from flange face to flange face. By continuously circulating utility steam or hot thermal oil through the jacket, heat transfers uniformly across the internal fluid boundaries. This uniform heating provides reliable freeze protection, prevents media crystallization, and ensures a smooth, uninterrupted product flow.

Q: What is the benefit of adhering to the API 598 standard for jacketed valve testing?

A: Adhering to the API 598 standard means that 100% of our jacketed production line undergoes strict quality control and pressure testing before leaving our facilities. This testing matrix includes high-pressure hydrostatic casing assessments and pneumatic seat leakage tests for both the primary process flow channel and the independent outer heating jacket loop. This ensures that every shipped valve delivers a certified Class VI bubble-tight shut-off performance and operates safely under high-pressure, high-temperature conditions.

Q: When and where are fire-safe and antistatic features required in jacketed lines?

A: Fire-safe and antistatic features are essential safety requirements wherever flammable, volatile, or explosive media are presentsuch as in chemical plants, petrochemical refineries, and oil and gas tank farms. Jacketed valves frequently handle hazardous fluids like benzene or molten sulphur at elevated operational temperatures. The antistatic function prevents static electricity build-up and spark discharge during operation, while the fire-safe design ensures tight isolation during fire exposure, protecting plant personnel and facility assets.

Q: Why partner with FlowBiz as your long-term jacketed ball valve manufacturer?

A: FlowBiz Valves balances precision severe-service engineering with strict compliance to global validation benchmarks like ASME, DIN, JIS, and API 598. By providing fully traceable material grades (Carbon Steel, SS316, Alloy Steel), utilizing specialized oversized flange structures to ensure easy bolting clearance, and offering flexible power options (Manual lever, Electric motorized, or Pneumatic actuation), we eliminate operational risks in the field. Our capacity to deliver robust, low-maintenance jacketed ball valves makes us a highly dependable supply chain partner across India, Africa, and global export markets.

• What is the size of your pipeline, and will your heating process utilize high-temperature utility steam or hot thermal oil?
