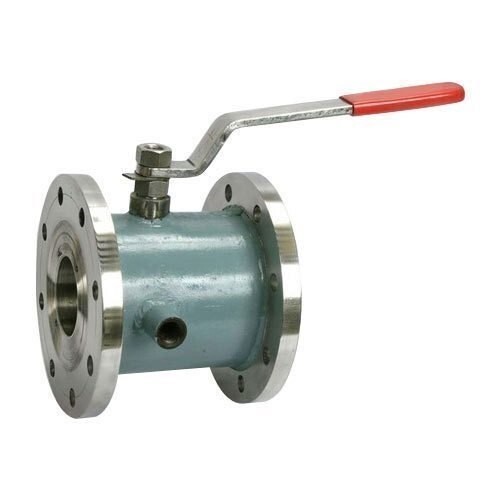

High-Integrity Jacketed Ball Valves | FlowBiz Valves

FlowBiz Valves is a premier, engineering-driven manufacturer, supplier, and global exporter of industrial Jacketed Ball Valves in India. Operating from our advanced manufacturing infrastructurewith core production and heavy engineering divisions in Vadodara, Gujaratwe precision-engineer these temperature-retaining valves. They are specifically built to anchor fluid pathways where process media must be maintained at a stable, elevated temperature to prevent thermal shock, viscous sluggishness, or line crystallization.

Certain highly viscous chemical compounds, organic resins, and heavy petroleum by-products cannot flow at ambient room temperatures; exposure to minor temperature drops causes them to rapidly solidify, freeze, or crystallize inside the valve cavity, locking the mechanism. The FlowBiz Jacketed Ball Valve series addresses this challenge by welding a secondary steel encapsulation layer (the thermal jacket) directly over the outer pressure-containment body. This design allows hot utility media to circulate continuously around the internal ball trim, keeping the process media completely molten and flowing smoothly.

We maintain a highly responsive distribution matrix supplying critical process industries across India and global export markets, including:

• Gujarat: Vadodara, Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch.

• Maharashtra: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur.

• Pan-India Logistics Hubs: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and all over India.

Technical Specifications & Compliance Matrix

Our thermal jacket production series is precision-machined from traceable stock to satisfy strict international pressure vessel and pipeline criteria:

Target Applications & Viscous Media Compatibility

FlowBiz jacketed ball valves are highly effective alternatives for heavy refinery lines, chemical skids, food-processing loops, and polymer facilities. They prevent crystallization and ensure efficient flow control when handling demanding process fluids:

• Heavy Hydrocarbons & Binder Stocks: Asphalt, Bitumen, Tar, and Wax lines.

• Volatile Chemical Aromatics: Benzene, Molten Sulphur, and liquid elemental Sulphur lines.

• Industrial Polymers & Adhesives: Polyurethane, Liquid Resins, and thick industrial glues.

• Food & Process Chemistry: Chocolate mass, Fats, Greases, and Fatty Alcohols.


                      FlowBiz Thermal Circulation Matrix


                         [Hot Steam / Thermal Oil Inlet]



              External Carbon / Stainless Steel Heat Jacket
               Continuously bathes the inner valve body



                Keeps viscous media (Bitumen, Sulphur, Wax)
                molten and flowing smoothly to prevent clogging


                         [Hot Steam / Thermal Oil Outlet]

Strategic Design & Mechanical Engineering Features

1. Oversized Flange Architecture for Bolting Clearance

Because the external heating jacket extends fully from one flange to another, the outer diameter of the valve body is naturally wider than a standard valve. To accommodate this extra width while allowing maintenance crews sufficient room to tighten line bolts, FlowBiz utilizes a specialized oversized flange layout.

For example, a valve with a 2" nominal bore size (DN50) is engineered with 3" pipeline flanges (DN80). This deliberate size increase ensures proper tool clearance and straightforward alignment with matching pipe flanges, speeding up field installation and removal during maintenance.

2. Full-Body Heat Transfer Jacket Coverage

Our jackets are meticulously welded to cover the valve body completely from flange face to flange face. This comprehensive design eliminates cold spots inside the valve cavity where media could accumulate and freeze. The internal floating ball sits on premium, temperature-resistant polymer or metal seats, ensuring smooth quarter-turn rotation and consistent operating torque even during long-term exposure to high heat.

3. Streamlined Global Export and Quality Protocols

As an established industrial supplier, every individual jacketed valve undergoes strict quality checks before leaving our Vadodara facility. This includes full pressure assessments under API 598 protocols to verify zero leakage across both the primary process path and the independent utility jacket loop. Our logistics team handles export documentation and coordinates shipping arrangements, ensuring prompt global delivery for international infrastructure projects.

Frequently Asked Questions (FAQs)

Q: Why are jacketed ball valves preferred over external heat tracing tape or wraps?

A: External heat tracing tape or thermal blankets often distribute heat unevenly, creating localized cold spots inside the valve body where viscous media can solidify and jam the ball mechanism. Additionally, tracing cables are easily damaged during routine maintenance. A FlowBiz welded heating jacket forms a permanent part of the valve structure, providing direct, uniform heat transfer across the entire internal fluid boundary. This ensures consistent temperature maintenance, minimizes maintenance downtime, and keeps uninterrupted industrial operations running smoothly.

Q: What types of thermal media can be safely circulated through the jacket?

A: The robust stainless steel or carbon steel jacket is engineered to handle a variety of utility heating and cooling mediums. It safely accommodates high-pressure utility steam, hot thermal oil, or hot water for heating processes, as well as chilled water or glycol mixes for precise cooling control in volatile chemical applications.

Q: How do I select the correct material configuration for a jacketed valve?

A: Selection is based on the chemical corrosiveness and temperature profile of both your process fluid and your utility media. For aggressive organic acids, resins, or pharmaceutical batches, a premium Stainless Steel body and internal trim configuration is recommended to prevent product contamination and rust. For non-corrosive media like asphalt or wax, a Carbon Steel configuration provides excellent structural strength and efficient heat transfer.

A single relevant question to help guide your system layout selection:

• What is the primary process fluid you will be handling, and what heating medium (such as steam or thermal oil) will your system use?
