FlowBiz Valves is a premier, engineering-driven manufacturer, supplier, and global exporter of ultra-compact Wafer-Type Ball Valves in India. Operating from our key industrial and manufacturing infrastructure in Ahmedabad, Gujarat, we engineer this specialized space-saving series to provide highly efficient fluid isolation within tight, high-density piping footprints.

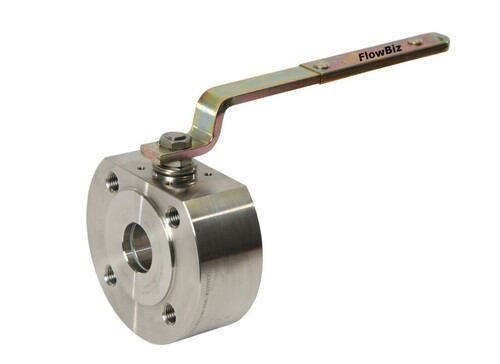

A wafer-type ball valve features an ultra-short face-to-face dimension, allowing it to be clamped directly between two standard pipeline flanges. Unlike traditional bulky flanged valves that take up significant space and add heavy dead weight to the line, the wafer structure minimizes physical footprints and material usage. This makes it an exceptionally lightweight, solid, and cost-effective solution for managing compressed air, process liquids, utilities, and gases without compromising on structural pressure containment or system safety.

Technical Specifications & Compliance Matrix

Our wafer-type production series is precision-machined from high-grade materials and verified against strict international engineering codes:

Strategic Design & Mechanical Trim Features

1. Unified Space-Saving Wafer Design

The defining advantage of the FlowBiz wafer series is its ultra-compact, single-piece casing. By eliminating the extended bolted neck and dual outer flange structures found on conventional valves, the wafer profile slides easily between existing pipeline gaps. It is secured using extended through-bolts that sandwich the valve body firmly between the pipe flanges. This design radically reduces structural stress on thin-walled pipelines and removes the need for heavy, expensive overhead pipe hangers or support brackets.

2. Premium Material Integrity (Forged vs. Cast)

To match specific industrial requirements, our Ahmedabad foundry produces these valves using dual manufacturing methodologies:

• Cast Configurations: Ideal for standard utility lines, providing smooth internal flow passage paths that lower fluid turbulence.

• Forged Material Trims: For high-pressure Class 600 or Class 900 lines, the valve body is machined from a solid, forged block. This removes any risk of internal casting porosities or sand holes, guaranteeing maximum structural density and pressure boundary containment.

3. Pressure-Assisted Floating Ball Mechanics

The internal mirror-polished stainless steel ball floats between pre-compressed resilient polymer seats. When the valve is closed, the fluid or gas pressure pushes the ball slightly downstream into the opposing seat. This pressure-assisted sealing concept achieves a strict Class VI bubble-tight shut-off, self-compensating for micro-wear over thousands of operational cycles.

4. Broad Thermal Envelope Resilience

Engineered with precise internal tolerances, these stainless steel valves handle extreme temperature shifts seamlessly, from cryogenic lows of -40F up to intense heat lines reaching 392F. The internal parts expand and contract symmetrically during sudden thermal shocks, preventing the ball from binding, seizing, or cold-flowing.

Advanced Quality Assurance & Global Export Standards

Every wafer-type valve manufactured at our Ahmedabad facility undergoes a rigorous quality validation sequence before dispatch:

• Compliance Testing (BS-6755 & API-607): Our valves are subjected to strict pressure testing and fire-test validations to confirm that the pressure boundaries maintain external sealing and shut-off capability even under high-temperature or emergency fire conditions.

• Customization and Finishing: To protect the raw metallurgy against coastal humidity or corrosive atmospheric chemical vapors, valves are treated with advanced anti-corrosive finishes, available in custom colors to match specific facility aesthetic layouts or piping code rules.

Frequently Asked Questions (FAQs)

Q: How exactly is a wafer-type ball valve installed within a pipeline?

A: Wafer-type ball valves do not feature integrated bolt holes on their own flanges. Instead, they are designed with a smooth, compact cylindrical body that sits directly inside the bolt circle of your existing pipeline flanges. To install it, technicians align the valve between two matching pipe flanges and insert extended studs through the flange holes, running them along the outside of the valve body. Tightening the nuts clamps the valve tightly between the gaskets, creating a fast, reliable, and leak-proof joint.

Q: When is a wafer-type ball valve preferred over a standard flanged valve?

A: A wafer-type ball valve should be selected when physical space is tight, when working inside compact skid packages, or when the overall weight of the piping network must be kept to a minimum. Because a wafer valve is significantly shorter face-to-face than an ASME B16.10 flanged valve, it reduces the overall footprint and structural weight of the assembly. This makes it ideal for clean fluid, air handling, and gas loops where space and structural load limits are critical.

Q: What advantages do the BS-6755 and API-607 certifications provide?

A: These international standards certify that the valve has been tested under extreme operational conditions. BS-6755 governs rigorous industrial testing for pressure integrity and leakage rates, while API-607 certifies that the valve is fire-safe. This means that if an unexpected plant fire destroys the soft internal polymer seats, the valve will automatically shift to a secondary metal-to-metal boundary to prevent catastrophic external product leakage.

Q: Why choose FlowBiz as your long-term wafer-type ball valve partner in Ahmedabad?

A: FlowBiz Valves balances precision industrial metallurgy with a highly adaptable approach to customer specifications. By verifying 100% of our production lines for zero-leakage pressure containment, offering advanced material options from Class 150 up to Class 900, and managing a responsive global logistics infrastructure directly from Ahmedabad, we ensure a seamless procurement experience. Our ability to deliver durable, space-saving, and highly reliable fluid control equipment makes us a trusted supply chain partner for critical process installations across India and worldwide.
