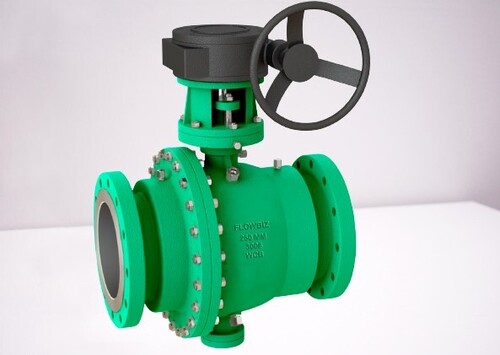

High-Performance Trunnion Mounted Ball Valves | FlowBiz Valves

FlowBiz Valves is a premier, engineering-driven manufacturer, supplier, and global exporter of heavy-duty Trunnion Mounted Ball Valves in India. Operating from our major industrial manufacturing hubs in Ahmedabad, Mumbai, and Gandhidham, we engineer these high-capacity valves to anchor critical high-pressure fluid isolation across large-diameter pipeline grids.

In standard floating ball valves, the ball is supported only by the two seating rings, meaning the upstream fluid pressure pushes the entire ball directly into the downstream seat. While highly effective for smaller line sizes, this design creates excessive operating torque and seat wear in large-diameter, high-pressure pipelines. The FlowBiz Trunnion Mounted Ball Valve addresses this by anchoring the ball securely using a mechanical trunnion stem support bar and bearings. Under line pressure, the ball remains completely fixed in position, and the fluid pressure forces the upstream seat assembly to move dynamically against the ball to form a seal. The mechanical anchoring grips the thrust from the line pressure, keeping the operational torque low and stable even at full working pressure. This allows plant engineers to utilize smaller, more cost-effective actuation packages.

Technical Specifications & Code Compliance

Our trunnion mounted production series is precision-machined from fully certified raw stock to satisfy rigid international safety and pressure containment criteria:

Strategic Design & High-Pressure Trim Features

1. Spring-Energized Floating Seats with Dynamic Sealing

Unlike traditional layouts, our trunnion mounted series features dynamic, spring-loaded seat assemblies. High-yield coil springs are integrated behind the seat rings to maintain a constant mechanical load against the micro-finished face of the ball. This ensures an absolute, bubble-tight seal under low-pressure gas or vacuum conditions, while high-pressure fluids force the upstream center onto the ball, pushing the seat tighter for maximum sealing safety.

2. Integrated Double Block and Bleed (DBB) Protection

The FlowBiz trunnion series provides built-in Double Block and Bleed (DBB) functionality. When the valve is in the fully closed position, it seals both the upstream and downstream ports simultaneously. The fluid trapped inside the center body cavity can be safely drained or vented using an integrated bleed valve plug. This allows maintenance crews to verify seat tightness or replace stem packings safely while the main pipeline remains under full operational pressure.

3. Gearing vs. Rapid Lever Actuation

Manual line regulation adapts easily to your pipeline's physical scale and torque boundaries:

• Ergonomic Manual Levers: Efficient for smaller valve sizes and standard pressure systems where fast manual actuation is needed.

• Mechanical Gear Operators: Highly recommended for large port sizes or high torque requirementsparticularly in intense Class 1500 and Class 2500 ratingsas they require less manual force and provide smoother control.

4. Advanced Anti-Corrosive External Coatings

To protect the raw metallurgy from aggressive chemical vapors, high-temperature washdowns, or harsh coastal humidity, the valves receive an advanced anti-corrosive protective coating. This specialized surface shield offers enhanced protection against environmental degradation, extending valve service life and reducing maintenance costs in tough industrial setups.

Safety Engineering & Severe-Service Durability


                        Trunnion Safety Features
                       =========================


 Fire-Safe Design        Blowout-Proof           Anti-Corrosive
  High-Heat Tech         Stem Construction       Shield Coating


• Certified Fire Containment: Essential for oil & gas terminals, chemical refineries, and power generation plants. The fire-safe design ensures continued valve structural integrity during unexpected high-heat events, preventing hazardous fluid leakage past the pressure boundary.

• Anti-Blowout Stem Architecture: Precision-machined with a bottom-entry internal mechanical shoulder. The stem cannot be ejected or blown out under pressure, contributing to maximum operational safety and regulatory compliance.

• Class VI Bubble-Tight Shutoff: Each unit is precision-tested to ensure zero leakage past the seats under strict testing conditions, safeguarding your process media, downstream machinery, and the surrounding environment.

Frequently Asked Questions (FAQs)

Q: How does a trunnion mounted ball valve function in high-pressure industrial applications?

A: A trunnion mounted ball valve utilizes a fixed ball supported by internal bearings, restricting it to pure rotation. Because the ball is anchored, the massive hydraulic forces generated by high-pressure fluids are transferred directly to the valve's structural body rather than compressing the downstream seat. The line pressure then pushes the upstream floating seat firmly against the stationary ball. This minimizes seat wear, prevents post-fatigue distortion, and maintains consistent sealing performance under extreme pressures.

Q: What seat material options are available, and how do they benefit specific media types?

A: FlowBiz offers both resilient polymer and metallic seat options to match your process variables:

• PTFE Seats: Exhibit exceptional chemical resistance and low friction, making them ideal for standard water, utility air, gas, and light chemical pipelines.

• Metal Seats: Hard-faced metallic boundaries recommended for high-temperature lines or abrasive oil applications. They provide the wear resistance needed to prevent scoring, increasing trim longevity and reliability over time.

Q: Where are these trunnion mounted ball valves most commonly installed?

A: Due to their heavy-duty pressure containment and bubble-tight isolation capabilities, these valves are primarily employed across the oil and gas sector, petrochemical refining networks, chemical processing plants, water treatment facilities, and power generation loops. Their robust construction handles high-velocity fluid distribution safely and efficiently.

Q: Why choose FlowBiz as your long-term trunnion ball valve partner in India?

A: FlowBiz Valves balances precision industrial metallurgy with strict compliance to global engineering codes like API 6D and BS 5351. Operating from major hubs like Ahmedabad, Mumbai, and Gandhidham, we hydrostatically proof-test 100% of our production line to verify Class VI zero-leakage performance before final packing. Our ability to supply high-yield, low-maintenance trunnion valves with flexible automation top works makes us a highly dependable supply chain partner for critical process installations across India and global export markets.
