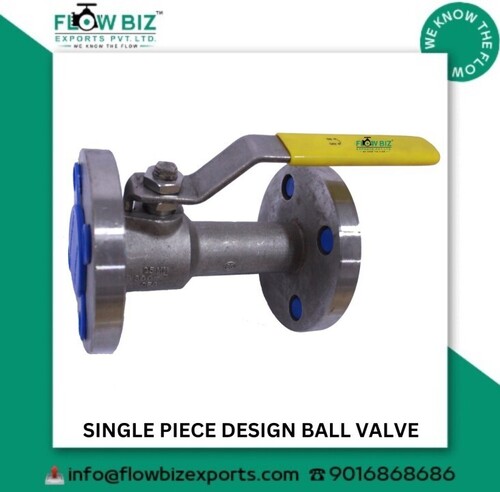

About Industrial Single Piece Ball Valve Supplier Mumbai

High-Strength Single-Piece Design Ball Valves | FlowBiz Exports

FlowBiz Exports is a premier, engineering-driven manufacturer, supplier, and global exporter of industrial Single-Piece Design Ball Valves in India. Operating through an advanced heavy manufacturing footprintwith key technical distribution divisions in Mumbai, Ahmedabad, and Vapiwe precision-engineer these high-integrity isolation valves. They are specifically designed to deliver maximum structural strength and absolute leak prevention across critical, chemical, and severe-service process networks.

A single-piece design (often referred to as a unibody structure) represents the most physically secure and robust configuration available in modern valve engineering. Unlike multi-piece split-body valves that rely on intermediate bolted joints or threaded body seams, the pressure-retaining outer casing and pipeline end connection are cast or forged from a single, solid piece of material. All internal componentsincluding the ball, stem, and sealsare precision-inserted through one of the end connections during manufacturing.

By completely eliminating external body joints, the valve eliminates traditional body leak paths. This makes the single-piece unibody construction highly reliable for handling hazardous, toxic, lethal, or volatile chemicals, where zero environmental emissions are required.

We maintain a highly responsive distribution matrix supplying critical process industries across India and global export markets, including:

• Maharashtra: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur.

• Gujarat: Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch.

• Pan-India Logistics Hubs: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and all over India.

Technical Specifications & Compliance Matrix

Our unibody production series is precision-machined from traceable stock to satisfy strict international pressure vessel and pipeline criteria:

Parameter	Technical Specification & Engineering Limits
Structural Layout	Single-Piece Unibody Casing (Zero external body joints/leak paths)
Bore Configuration	Reduced Bore / Reduced Port (Orifice size sits one size smaller than line)
Size / Port Spectrum	Production range from 15mm to 100mm (Compact and intermediate lines)
Pressure Class Matrix	Comprehensive parameters: PN16, PN25, PN40, and Class 150
Core Design Standard	Fully engineered and compliant with international ISO 17292 parameters
Flange Drill Framework	Precision machined to match global ASME B16.5 specifications
Face-to-Face Standard	Built in strict accordance with ASME B16.10 dimensions
Quality Verification Codes	100% factory verified per strict ISO 5208 and API 598 protocols
Fire Safety Certification	Certified fire-safe per international ISO 10497 and API 607 standards
Isolation Integrity	High-precision bubble-tight shut-off achieving Leakage Class VI
Service Lifecycle Rating	Low-maintenance internals engineered to exceed 100,000 continuous cycles

Strategic Design & Mechanical Engineering Features


                       FlowBiz Unibody Casing Profile




         Solid, Jointless Single-Piece Outer Metallic Casing

         [End Connection 1]                        [End Connection 2]
         (Cast/Forged Solid)                       (Internal Trim Entry)

                  All internal ball trims, stems, and seals
                  are loaded securely from one end only.
                  Result: Zero Bolted Body Seams = Zero Leak Paths

1. Reduced Bore Fluid Dynamics & Cost Efficiency

Because all internal trims are loaded from one side, the ball orifice size sits exactly one size smaller than the connected pipe diameter (e.g., a 50mm valve houses a 40mm ball orifice). This configuration is known as a Reduced Bore layout.

While this design introduces a minor, calculated restriction to full media throughput, it yields a highly robust, compact, and lightweight valve body. This reduction in raw material weight allows FlowBiz to offer a highly economical, cost-effective, and solid solution for process loops where minor pressure drops are acceptable.

2. Double O-Ring Sealing & Blowout-Proof Stem

Managing high-pressure hazardous fluids up to PN40 requires uncompromised internal safety boundaries:

• Double O-Ring Sealing System: The dynamic stem packing is engineered with an advanced double O-ring seal assembly. This provides a redundant layer of defense against fugitive emissions, maintaining a reliable barrier under severe thermal shifts.

• Blowout-Proof Stem: Designed with an internal, bottom-entry mechanical shoulder. The stem cannot be ejected or blown out of the stuffing box under sudden pressure spikes, protecting field personnel.

3. Fast-Acting Quarter-Turn Operation

Manual line regulation features a smooth, intuitive quarter-turn (90 degree) manual lever mechanism. This rapid action allows for swift, easy open-and-close functionality, significantly reducing actuation times compared to multi-turn gate or globe valves. This quick response is vital for isolating critical lines during sudden process upsets.

4. Certified Fire-Safe Architecture

Essential for hazardous industrial chemical networks and fuel transmission lines. If an unexpected facility fire destroys the primary soft polymer seats, our certified fire-safe construction (API 607 / ISO 10497) ensures that backup metal-to-metal contact boundaries automatically engage. This maintains tight inline isolation, prevents hazardous fluid from fueling the fire, and protects facility assets.

Metallurgy & Premium Sealing Matrix

Achieving an operational life cycle exceeding 100,000 continuous runs requires selecting the ideal material configuration for your fluid's chemical and thermal properties:

1. High-Grade Body Metallurgy Options

• High-Grade Stainless Steel: High resistance to pitting and localized chemical attacks; ideal for aggressive acids, volatile solvents, and pharmaceutical utilities.

• Carbon Steel (CS): Delivers excellent tensile strength and high pressure containment for standard hydrocarbons, hot oils, and process lines.

• Cast Iron (CI): An economical, dependable choice for commercial water treatment, low-pressure utilities, and non-corrosive fluids.

• Protective Exterior Shielding: All Cast Iron and Carbon Steel models are treated with a premium high-build epoxy coating. This durable layer shields the outer metal casing from atmospheric moisture, chemical vapors, and corrosive elements, reducing maintenance costs.

2. Advanced Sealing Materials

• PTFE Seats: The standard choice for general industrial utilities, providing near-total chemical inertness and exceptionally smooth operation.

• Reinforced PTFE (RPTFE) Seats: Enhanced with specialized glass fiber or carbon fillers to prevent cold-flow distortion and maintain high wear resistance during intensive cycles or when handling moderate abrasives.

Flexible Connectivity & Pipeline Integration

FlowBiz single-piece valves adapt quickly to your exact facility layout and standard piping requirements:

• Flanged End Connections: Machined in strict accordance with ASME B16.5 standards to bolt directly into universal ANSI, DIN, or IS flanging networks.

• Threaded & Welded Connections: Available with precision-cut BSP or NPT threads for low-profile setups, or Socket Weld (SW) profiles for permanent, leak-free pipeline configurations.

Frequently Asked Questions (FAQs)

Q: Why is a single-piece ball valve preferred over multi-piece split designs for hazardous fluids?

A: Multi-piece ball valves (such as two-piece or three-piece split designs) rely on intermediate body gaskets and bolted flange joints to secure the casing sections together. Under extreme vibration, thermal expansion, or chemical stresses, these joint areas can degrade, leading to hazardous external leaks. A FlowBiz Single-Piece Design completely eliminates these intermediate body joints, creating a seamless metallic envelope. With zero body seams, the potential for hazardous external leakage is minimized, making it an exceptionally safe option for toxic chemicals and lethal media.

Q: What rigorous testing protocols confirm the sealing quality of these unibody valves?

A: At our manufacturing centers, 100% of our production line undergoes strict hydrostatic shell verification and pneumatic seat closure testing in accordance with API 598 and EN 12266 standards. By combining precision-machined internal components with advanced PTFE/RPTFE seat matrices, our unibody ball valves consistently deliver a certified Class VI bubble-tight shut-off performance, preventing internal product loss before shipment.

Q: What is the main operational difference between a full bore and a reduced bore valve?

A: The selection depends entirely on your system's fluid dynamics and pressure limits:

• Full Bore Valves: Feature an internal ball hole diameter equal to the pipe's inner diameter, keeping pressure drops near zero, which is ideal for viscous slurries or lines that require pigging.

• Reduced Bore Valves (Unibody Standard): Feature a ball orifice size that sits one size smaller than the connected pipe diameter. This introduces a minor flow restriction and moderate pressure drop, but allows for a highly compact, robust, and lightweight valve design that significantly lowers upfront component costs while increasing mechanical casing strength.

Q: Why partner with FlowBiz as your long-term single-piece ball valve manufacturer?

A: FlowBiz Exports balances advanced severe-service engineering with strict compliance to global validation benchmarks like ISO 17292, ASME B16.5, and API 607. By offering fully traceable material options (Stainless Steel, Carbon Steel), utilizing robust double O-ring stem safety barriers, and applying protective high-build epoxy coatings, we eliminate field reliability concerns. Our capacity to deliver durable, low-maintenance single-piece ball valves tailored to your exact application layout makes us a highly dependable supply chain partner across India and global export markets.

A single relevant question to help guide your system layout selection:

• What is the chemical composition of the fluid, and what are the specific operating pressures and temperature profiles within your pipeline?
