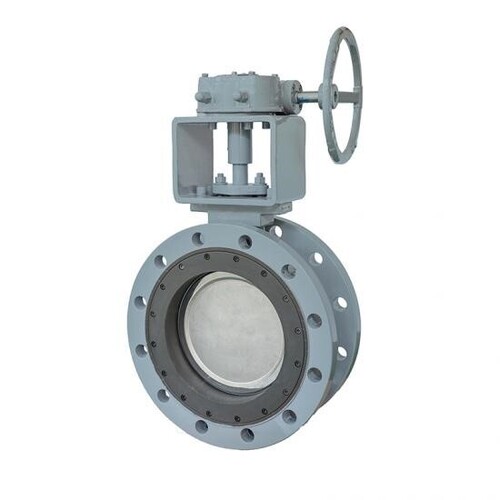

API 609 Double Eccentric (Offset Disc) Butterfly Valves FlowBiz India

Welcome to FlowBiz Export Private Limited, an established manufacturing authority for high-pressure fluid isolation, critical gas containment, and aggressive-media process control. Operating state-of-the-art foundries and hydrostatic compliance laboratories, we are India's leading manufacturer, supplier, and global exporter of high-integrity Double Eccentric (Double Offset) Butterfly Valves.

With a primary corporate manufacturing and logistics hub serving Gandhidham, Gujarat, our distribution footprint seamlessly satisfies infrastructure project specifications across all major industrial corridorsincluding Ahmedabad, Vapi, Valsad, Surat, Mumbai, Nashik, Pune, Thane, Chennai, and Coimbatorealongside fast-tracked international maritime freight lines for global export.

Technical Specifications & Pressure Boundary Architecture

FlowBiz Double Eccentric Butterfly Valves are engineered strictly in accordance with API 609 Category B, ASME B16.34, and BS EN 593 design codes. Featuring an offset stem axis and an eccentric disc geometry, this advanced architecture lifts the disc seal entirely off the body seat within the first few degrees of rotation. This minimizes friction, lowers operating torque, and drastically extends seal life.

Core Engineering Features & Design Advantages

1. Cam-Action Double Offset Cam Geometry

Standard concentric butterfly valves suffer from continuous friction between the rubber liner and the rotating disc throughout the full 90 travel path, leading to rapid seal tearing in high-pressure lines. The FlowBiz Double Eccentric Valve incorporates two distinct offsets:

• First Offset: The shaft is displaced behind the plane of the sealing face.

• Second Offset: The shaft centerline is offset from the vertical centerline of the pipeline bore.

  This design creates a cam-action profile. The disc unseats instantly upon opening and makes contact only at the final point of closure, eliminating friction and tracking wear.

2. Accessible and Replaceable Seat Cartridge Design

To minimize facility downtime during routine overhaul intervals, our valves are engineered with a field-accessible seat retention ring. If the seat requires replacement due to long-term abrasive wear from oil, water, or chemical processes, maintenance technicians can replace the polymer (PTFE/RTFE) or metal seat ring inline without replacing the entire disc or valve assembly.

3. High-Pressure Bi-Directional Tight Shut-Off

Outfitted with heavy-wall, pressure-resistant steel castings, our offset disc valves maintain structural integrity under severe pressure surges and tight vacuum applications. The flexible, pressure-energized seat profile deforms uniformly under line pressure, achieving an absolute, bi-directional bubble-tight shut-off matching API 598 standards.

4. Versatile Actuation and System Integration

Our valves feature standardized ISO 5211 topworks mounting pads. While manual gearboxes are perfect for standard lines, our double-offset units are standardly paired with high-torque hydraulic or pneumatic actuators for critical pipelines. This enables smooth, rapid, and automated flow modulation and fail-safe safety isolation in remote or demanding environments.

Strategic Cross-Industry Applications

FlowBiz double eccentric butterfly valves are specified across heavy-duty, high-consequence process utilities:

• Offshore Oil & Gas Platforms: Managing raw seawater intake lines, firewater loops, and crude processing lines.

• Marine & Shipbuilding Infrastructure: Ballast water management systems, marine fuel lines, and central cooling manifolds.

• Chemical & Petrochemical Processing: Reliable isolation and control of volatile organic solvents, chemical vapors, and industrial gases.

• Power Generation & Utility Plants: High-velocity condenser cooling water lines, boiler feed networks, and large-bore air distribution lines.

Frequently Asked Questions (FAQ)

Q: What is the primary operational advantage of a double eccentric butterfly valve over a standard concentric valve?

A: Concentric butterfly valves utilize a rubber sleeve that rubs continuously against the disc edge during every movement, causing seat degradation in high-velocity or high-pressure systems. A Double Eccentric Butterfly Valve uses a dual-offset shaft layout that lifts the disc cleanly away from the seat within the first few degrees of rotation. This eliminates sliding friction throughout the stroke, allows the valve to handle much higher working pressures (up to Class 600#), and dramatically increases the lifespan of the seat.

Q: How do engineers choose between Wafer, Lug, and Double-Flanged connection profiles?

A: The selection depends entirely on your mechanical pipeline configuration and pressure parameters:

• Wafer Profile: The slimmest, most lightweight design. It is held in place clamped between two pipeline flanges, making it ideal for compact spaces with limited pipe support.

• Lug Profile: Incorporates threaded metal lugs matching the bolt pattern of the pipe flange. This allows for dead-end service, meaning technicians can isolate and disconnect the downstream piping while keeping the valve pressurized upstream.

• Double-Flanged Profile: The standard for large-bore lines (24 to 48) and high-pressure networks. It provides maximum structural rigidity and eliminates localized bolt-torque distortion.

Q: Can these offset disc valves be safely utilized for gas and air applications as well as liquids?

A: Yes. Unlike low-cost damper or concentric valves that struggle to contain pressurized micro-molecular gases, FlowBiz double offset valves are manufactured with precision-ground, pressure-energized PTFE or Reinforced PTFE (RTFE) seats. When the valve closes, line pressure forces the lip seat tightly against the stainless steel disc edge, creating a bubble-tight, leak-proof seal that makes it an excellent choice for compressed air, low-pressure natural gas, and inert industrial gases.

Q: Why is Carbon Steel (WCB) often paired with a Stainless Steel (CF8M) disc in high-pressure utility lines?

A: This combination optimizes both mechanical strength and commercial economics. The outer pressure-retaining body shell is cast from heavy-wall ASTM A216 WCB Carbon Steel, which offers exceptional structural mass, thermal shock resistance, and high-pressure ratings at a cost-effective price point. The moving internal componentthe discis cast from premium ASTM A351 CF8M Stainless Steel to guarantee that the high-velocity fluid path resists erosion, chemical cavitation, and rust.

Q: How can project procurement managers and traders coordinate direct factory quotes from Gandhidham?

A: Sourcing can be initiated by contacting our dedicated corporate sales division in Gandhidham, India. Our application engineering division will guide you through a comprehensive technical consultationassessing your pipeline dimensions (24 to 48), working pressure ranges, process media traits, and automation requirementsto deliver a certified product submittal sheet and an itemized commercial proposal with competitive factory-direct B2B pricing.

Are you optimizing an offshore seawater cooling system or upgrading a high-pressure chemical transmission manifold? Contact our Gandhidham sales office today to receive complete technical data sheets, certified structural blueprints, and an itemized commercial proposal.
