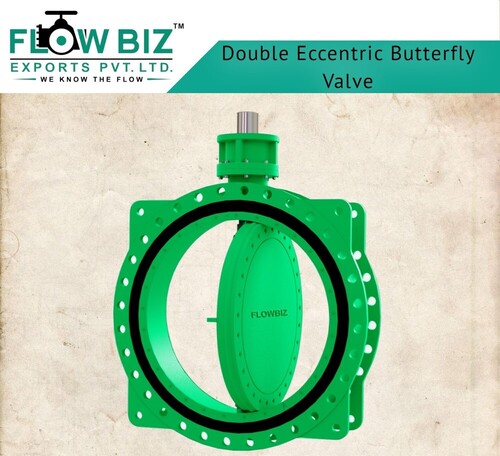

FlowBiz Exports Pvt. Ltd. | Premier Double Eccentric Butterfly Valve Manufacturer & Global Exporter

In high-velocity and high-pressure piping networks, standard concentric butterfly valves often experience premature seat wear, friction-induced torque spikes, and continuous sealing degradation. FlowBiz Exports Pvt. Ltd. eliminates these vulnerabilities with our high-performance Double Eccentric Butterfly Valves (also known as High-Performance Butterfly Valves).

Engineered for precision throttling and bubble-tight isolation, these valves utilize advanced geometric offsets to drastically reduce friction, extend operational lifespan, and maximize plant safety.

The Double Eccentric Design Explained

The defining feature of a double eccentric butterfly valve is the geometric displacement of the shaft away from the centerline of the valve disc and body. This creates two distinct offsets (eccentricities):

• First Offset: The shaft is displaced behind the plane of the sealing seat. This allows for a continuous, uninterrupted $360^\circ$ sealing surface.

• Second Offset: The shaft center is shifted slightly to one side of the pipe and valve centerline.

The Operational Benefit: Cam-Action Sealing

Together, these offsets create a cam-like profile during operation. As the valve begins to open, the disc immediately lifts away from the resilient seat rather than scraping against it. Contact between the disc and the seat occurs only during the final few degrees of closure, virtually eliminating friction, preventing seat deformation, and significantly lowering the required operating torque.

Key Performance Advantages

[ Dual Axis Offsets ]  Cam-Like Rotation  Disengages Seat Instantly



[ Extended Lifetime ]                         [ Lower Actuation Costs ]                     [ High-Differential Rating ]
Frictionless travel eliminates                Reduced torque means smaller,                 Maintains a tight seal even
premature seat wear and tear.                 more economical actuators.                    under severe pressure drops.

• Exceptional Sealing Capabilities: Delivers bubble-tight bi-directional shutoff, making it highly reliable in volatile vacuum or pressurized environments.

• Minimal Maintenance Overhead: Thanks to the low-wear design, the internal sealing components require less frequent maintenance and component replacement.

• High Flow Efficiency: The streamlined disc design allows for maximum mass flow rates with minimal turbulence or structural pressure drop.

Technical Specifications & Industrial Capabilities

Every Double Eccentric Butterfly Valve manufactured by FlowBiz undergoes rigorous testing to comply with international piping and safety norms.

Targeted Industrial Applications

Because of their ability to manage aggressive high-flow conditions and severe pressure differentials, FlowBiz Double Eccentric Butterfly Valves are heavily specified across demanding processing sectors:

• Wastewater & Water Treatment: Safely regulates raw water intake, filtration loops, and chemical dosing systems.

• Chemical & Petroprocessing: Handles highly corrosive liquids, solvents, and hydrocarbons when configured with pure PTFE or RTFE seats.

• Food, Beverage & Pharmaceutical: Provides clean, dependable process control in utilities, clean-in-place (CIP) steam lines, and auxiliary fluid systems.

• Power Plants & Heavy Manufacturing: Ideal for high-velocity cooling water loops and condenser isolation systems.

Global Sourcing with FlowBiz Exports Pvt. Ltd.

As an established manufacturer, exporter, and trusted supplier in India, FlowBiz Exports Pvt. Ltd. bridges the gap between premium material science and economical plant design. Operating from ultra-modern manufacturing hubs, we deliver fully certified valves with customizable body metallurgy (including Stainless Steel, Carbon Steel, and Duplex Alloys) to fit your precise infrastructure demands.

To request a technical datasheet, dimensional drawings, or an immediate commercial quote for your project, contact our global engineering sales division via the official FlowBiz corporate web portal.
