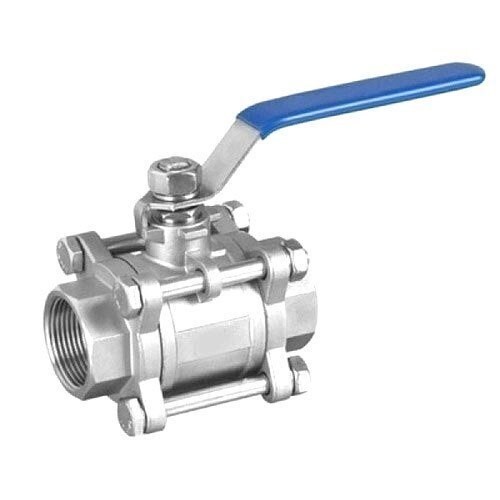

FlowBiz Heavy-Duty 3-Piece High-Pressure Ball Valves Advanced Stem Sealing & Full-Bore Process Control

Welcome to the engineering authority for modular high-pressure fluid containment, fugitive emissions control, and low-maintenance pipeline isolation. Operating advanced multi-axis CNC turn-mill centers, precision spherical-lapping cells, and certified high-pressure validation grids, FlowBiz Exports specializes in manufacturing premium 3-Piece High-Pressure Ball Valves.

Based out of our advanced manufacturing setup in Pune, Maharashtra, India, FlowBiz has established an international reputation for quality, engineering innovation, and modular valve customization. Our 3-piece ball valves feature a robust, full-bore internal clearway engineered specifically to eliminate inline clogging, manage media slurries, and minimize system pressure drops. Built to strict global compliance codes, this series incorporates specialized multi-layer stem packing and advanced sealing metallurgy to provide an absolute pressure boundary for severe-service industrial installations.

Technical Specifications & Compliance Parameters

Every FlowBiz production batch undergoes strict, certified validation protocolsincluding body test pressures at 1.5 times the maximum working pressure and hydrostatic seat testing at 1.1 times the working pressure before leaving our Pune facility.

Kinematics & High-Integrity Advanced Stem Architecture

The superior operational safety of the FlowBiz 3-piece high-pressure ball valve is driven by its meticulously engineered three-layer upper stem sealing matrix:

 [ MANUALLY OPERATED LEVER / ACTUATOR CONTROL ] \/ +-------------------|-------------------+ | ISO 5211 AUTOMATION DIRECT TOP-PAD | +--+---------------------------------------+--+ | [ LAYER 1: LOW-EMISSION GLAND PACKING ] | | [ LAYER 2: DOUBLE-PACKED STUFFING BOX ] | | [ LAYER 3: FULLY GUIDED GLAND BEARING ] | | /---| |---\ | ==================> |====> | Full-Bore Floating | ====>| ================> Slurries, Solids, | | Spherical Core | | Unrestricted Flow & High-Press Fluid | \---| |---\ | Zero Pipe Clogging +--------------------------------------------+ | [ GFT ANTI-GALLING DEFORMATION WASHER ] | +--------------------------------------------+ (Anti-Static Grounding / Blowout-Proof Stem)

• Advanced Three-Layer Stem Sealing System: To prevent dangerous chemical leaks and comply with modern fugitive emission laws, the stem incorporates an independent rotation layout isolated from the gland nut. It utilizes a double-packed stuffing box combined with low-emission packing rings and a fully guided gland bearing. This layout evenly distributes torque, reduces friction wear, and guarantees an absolute seal.

• GFT Thrust-Washer Anti-Deformation Barrier: High-pressure cycling can cause internal metal parts to rub together, leading to premature material galling or structural distortion. FlowBiz resolves this issue by placing a premium Glass-Filled Teflon (GFT) thrust-washer beneath the stem shoulder. This component acts as a self-lubricating, heavy-duty bearing that absorbs internal line backpressure, ensuring smooth, low-torque operation.

• Full-Bore Floating Core Dynamics: The floating ball design relies on upstream line pressure to press the polished sphere tightly against the downstream seat ring, creating a dependable, bubble-tight seal. Because the internal flow path matches the full inner diameter of your pipeline, thick slurries, solids, and high-velocity fluids move through smoothly without restriction or clogging risks.

Core Engineering Features & Plant Benefits

• Thermal Weld & Inline Protection: The 3-piece modular configuration allows installation crews to swing the valve's central body completely out of the line while welding the end caps directly into the system. This step completely protects the internal polymer seals from high welding temperatures.

• Full NACE Material Compliance: Available cast in high-purity material grades that meet strict NACE standards, providing exceptional protection against sulfide stress cracking and hydrogen embrittlement in sour oil and gas lines.

• Integrated Anti-Static Continuity: Built-in grounding devices maintain constant electrical continuity between the valve body, ball, and stem, safely discharging static electricity buildup caused by fluid friction.

• Flexible Sizing and Connections: Available across a wide variety of pipeline connectionsfrom sanitary Tri-Clover clamps for clean rooms to rugged socket-weld or flanged connections for high-pressure process manifolds.

Strategic Industrial Application Sectors

Our High-Performance 3-Piece Ball Valves provide versatile containment across key processing networks:

• Chemical Processing & Manifolds: Regulating highly corrosive chemical lines, raw acid dosing systems, and volatile solvent runs.

• Oil & Gas Transmission Lines: Isolating midstream hydrocarbon pipelines, storage tank manifolds, and gas distribution networks.

• Water & Wastewater Treatment Skids: Controlling high-capacity water transport systems, filtration manifolds, and high-pressure chemical dosing loops.

• Petrochemical Refining Facilities: Managing high-temperature petroleum fractions, blending lines, and secondary utility steam loops.

Frequently Asked Questions (FAQ)

Q: How do the 3 Piece Ball Valves operate and what are the key safety features?

A: These valves utilize a quick, quarter-turn manual lever or automatic actuator mechanism to provide fast, reliable ON/OFF fluid isolation. Key safety features include an integrated internal bottom-entry blowout-proof stem, anti-static grounding devices, a GFT thrust-washer to prevent galling, and an optional API-607 fire-safe design to ensure maximum operator protection in volatile environments.

Q: What is the process for customizing the valve size and end connections?

A: Customizing your valve configurations is simple. Contact our technical sales and engineering division in Pune with your system parameters. We offer a full size range from 1/2 Inch to 4 Inch (DN15 to DN100) and can finish the end caps in butt-weld, sanitary Tri-Clover, flanged (ASME B16.5), threaded, or socket-weld styles to match your pipeline design.

Q: When should I choose reinforced PTFE seats over standard PTFE?

A: Reinforced PTFE (RPTFE) seats should be specified when your system operates under high pressures, continuous thermal cycling, or routes abrasive fluids and slurries. The addition of glass or carbon reinforcing agents into the polymer matrix provides excellent resistance to material deformation, reduces abrasive scoring, and significantly extends the service life of the valve under harsh operating conditions.

Q: Where can these valves be installed and what standards do they meet?

A: These premium valves are ideal for installation across commercial and industrial processing facilities, including chemical refineries, natural gas distribution manifolds, water treatment plants, and petrochemical lines. They are designed and manufactured in strict compliance with API 608, ASME B16.34, and BS 5351 international quality standards, ensuring full compatibility in both domestic and international global export markets.

Q: What are the benefits of a floating ball design with full bore and blowout-proof stem?

A: The floating ball design utilizes line pressure to push the ball core into the downstream seat ring, ensuring a tight seal even at low pressures. The full bore configuration provides a straight-through flow path that eliminates fluid restriction, prevents solids from clogging, and keeps pressure drops to a minimum. Additionally, the blowout-proof stem ensures the stem cannot be dislodged by sudden pressure spikes, protecting your operators and equipment.

Are you updating a severe-service chemical loop that requires an API-607 fire-safe 3-piece ball valve with an extended stem for thick insulation, or configuring a high-pressure utility header in Pune that demands a NACE-compliant full-bore flanged layout? Contact our technical engineering and sales division in Pune, India today to secure a factory-direct quote and detailed technical data sheet, or ask a single relevant question regarding your specific line pressure or fluid media properties below to guide the conversation forward.
