Industrial PTFE Lined Tubular Sight Glasses: Real-Time Fluid Monitoring for Highly Corrosive Media

In process pipelines handling ultra-aggressive chemicals, traditional metal-bodied sight flow indicators often fail. Media such as hot concentrated acids, strong alkalis, and reactive solvents cause rapid chemical pitting and corrosion on bare metals like cast iron, carbon steel, and even high-grade stainless steel alloys. This material degradation leads to structural failure, dangerous line leaks, and catastrophic fluid contamination.

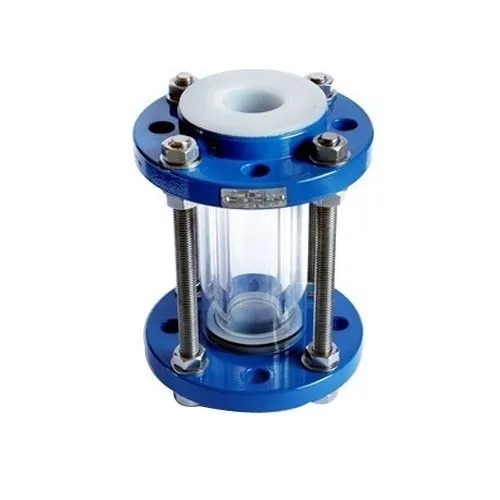

A PTFE Lined Tubular Sight Glass solves this engineering challenge. By fully encapsulating the fluid-bearing metallic outer housing in an thick, uniform layer of high-performance fluoropolymers, all wetted internal surfaces become chemically inert. This design pairs the structural, pressure-bearing strength of ductile iron or stainless steel with the total corrosion resistance of Teflon, providing safe, 360-degree visual monitoring of highly aggressive process streams.

FlowBiz Exports is a premier global fluid-handling brand and a trusted PTFE Lined Tubular Sight Glass Manufacturer in India. We engineer sturdy, high-visibility inline indicators configured to deliver maximum visibility, reliable pressure containment, and absolute purity protection in severe-service industrial piping.

Technical Specifications & Configuration Framework

FlowBiz PTFE Lined Tubular Sight Glasses are manufactured to strict industrial standards, providing a precise drop-in fit with existing plant piping infrastructure.

Core Engineering Matrix

Critical Engineering Features & Advantages

1. 100% Inert, Non-Stick Wetted Profile

Every internal wetted component is completely lined with high-density PTFE, FEP, or PFA. Because these fluoropolymers are chemically inert to virtually all industrial compounds, the underlying metal casting is thoroughly isolated from chemical attack. The non-stick nature of Teflon also prevents product scaling, mineral crystallization, and media accumulation, keeping the view completely clear over an extended operating lifespan.

2. Toughened Borosilicate and Enhanced Plant Safety

Visual process auditing under high thermal profiles reaching up to 200C demands premium glass engineering. FlowBiz uses heavy-duty, toughened borosilicate glass tubes that feature an exceptionally low coefficient of thermal expansion. This material resists shattering when subjected to sudden, extreme thermal shifts or pressure surges, protecting field operators from hazardous exposure.

3. Streamlined, Low-Maintenance Design

Operating as a manual inline indicator, this sight glass contains no rotating parts, internal paddles, or delicate digital sensors that can wear out, bind, or require calibration. Upkeep is exceptionally minimal, largely limited to routine exterior cleaning. Additionally, the mechanical layout allows for the easy replacement of the glass cylinder during plant turnarounds without requiring technicians to completely dismantle the underlying metal piping system.

Strategic Industrial Application Scope

Our heavy-duty, Teflon-lined tubular sight glasses are widely used across global process loops to verify fluid clarity, flow continuity, and process turbidity:

• Chemical & Processing Infrastructure: Safely monitoring the transfer lines of hot acids, alkalis, strong reagents, and corrosive chemical formulations.

• Agrochemical, Pesticide, & Fertilizer Units: Directing volatile fluid streams without risking atmospheric contamination or chemical pitting.

• Petrochemical Plants & Oil Refineries: Visually evaluating aggressive wastewater streams, sour water lines, and acid wash loops.

• Dyes, Pigments, Paper, & Pulp Mills: Managing highly alkaline bleach lines, chemical pulping liquors, and heavily pigmented processing fluids.

• Nuclear Power Utilities & Water Desalination: Providing dependable, hands-free visual checks on high-purity demineralized water headers and cooling systems.

Frequently Asked Questions (FAQ)

Q: What is the main functional difference between choosing a PTFE lining versus an FEP or PFA lining?

A: While all three polymers offer outstanding chemical resistance, their thermal thresholds and physical application methods vary:

• PTFE (Polytetrafluoroethylene): The standard choice for broad chemical resistance across general process loops.

• FEP (Fluorinated Ethylene Propylene): Ideal for highly transparent, molded linings at moderate continuous service temperatures.

• PFA (Perfluoroalkoxy): The premium choice for severe high-temperature applications up to 200C. PFA exhibits superior melt-processability and high mechanical strength at elevated temperatures, making it highly resistant to vacuum collapse or vapor permeation.

Q: Why is a tubular full view sight glass preferred over a standard double-window sight flow indicator?

A: A double-window indicator features flat glass panes bolted onto opposite sides of a metallic casting, which restricts observation to a straight, narrow line of sight and creates internal pockets where fluids can stagnate. A Tubular Full View Sight Glass replaces that entire section with a continuous glass cylinder, providing an unobstructed, 360-degree look into the fluid path from any angle while maintaining a smooth, straight-through profile that minimizes pressure drops.

Q: What is the exact workflow for ordering a customized sight glass from FlowBiz?

A: Our engineering team follows a deeply consultative design process to provide a perfect drop-in inline fit:

1. Parameter Submission: Sourcing teams provide their specific dimensions, including required nominal port sizes, preferred connection flange standards (ANSI/DIN/BS), media chemistry, and pressure profiles.

2. Tailor-Made Design: FlowBiz engineers model the unit to your requested, made-to-order Face-to-Face dimensions, ensuring it slots into your existing framework without forcing pipeline modifications.

3. Quality Testing & Fulfillment: The finished assembly undergoes comprehensive hydrostatic pressure and electrical spark testing to confirm lining integrity before being packed for domestic supply or international export.

Q: What routine checks are recommended to maintain the integrity of a lined tubular sight glass?

A: Because this instrument features a zero-maintenance design with no moving components, maintenance is minimal. Operators should periodically inspect the exterior tie-rods to ensure uniform mechanical torque is maintained across the flange seals. Additionally, a routine visual check should be conducted to ensure that the toughened borosilicate glass exterior and internal polymer lining remain intact, smooth, and free of physical scratching or heavy debris scraping.
