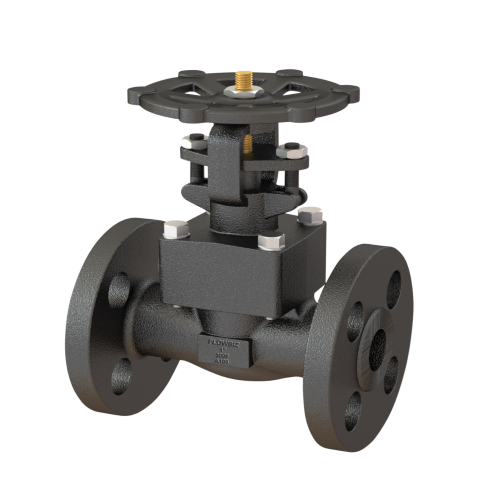

High-Pressure Forged Steel Globe Valves FlowBiz Exports Rajkot

Welcome to FlowBiz Exports, a premier engineering standard for high-pressure fluid containment and precise flow modulation. Headquartered in the major industrial production center of Rajkot, Gujarat, we are a leading manufacturer, supplier, and global exporter of industrial-grade Forged Steel Globe Valves.

Our forged steel valves are engineered specifically to thrive under the severe pressure and thermal stresses of critical process lines. By compressing and forging premium grain-aligned carbon steel, our valves eliminate internal porosity and casting voids, delivering unmatched structural integrity for high-consequence utilities worldwide.

Technical Specifications & Compliance Grid

FlowBiz Forged Steel Globe Valves are engineered and certified to meet the absolute most rigorous international design criteria, providing drop-in compatibility across global petrochemical and power generation piping systems.

Design Standards & Pressure Manifest:

• Design Standards: Fully compliant with API 602, BSEN ISO 15761, and ASME B16.34

• Pressure Testing: 100% hydrostatically and pneumatically verified to API 598

• Exterior Protection: Anti-corrosive industrial black manganese phosphating or heat-resistant coating

Structural Configuration Matrix:

Core Performance Features & Material Advantages

1. Grain-Aligned Forged Carbon Steel Body

Unlike standard cast valves, which are susceptible to hidden pinholes or micro-shrinkage fractures, our valves are forged from premium carbon steel billets. The forging process re-aligns the metal's grain structure to match the valve geometry, ensuring exceptional density, high impact resistance, and maximum wall-thickness safety limits.

2. High-Integrity Bonnet Seals

• Bolted Bonnet (BB): Features a high-tensile bolted joint with a spiral-wound graphite gasket, offering easy maintenance and quick disassembly for inline seat refurbishment.

• Welded Bonnet (WB): Features a hermetically sealed, full-penetration canopy weld between the body and bonnet. This profile provides an absolutely permanent, zero-leakage structure that eliminates any risk of gasket blowout under extreme thermal cycles.

3. Precise Throttling & Positive Shut-Off

Engineered with an Outside Screw and Yoke (OS&Y) rising stem architecture, our globe valves offer uniform, incremental flow modulation. Because the disk moves perpendicular to the seat path, it easily regulates fluid velocity in high-differential pressure scenarios, protecting cooling water and fuel oil systems from fluid erosion (wire-drawing).

Critical Cross-Industry Applications

FlowBiz API 602 forged steel globe valves are specified by process engineers across high-pressure utility grids:

• Fuel Oil Management Systems: High-pressure fuel injection lines, burner supply manifolds, and heavy oil transfer networks.

• Cooling Water Processes: Managing high-velocity auxiliary water distribution loops and high-pressure chiller lines.

• Superheated Steam & Condensate Lines: Auxiliary steam isolation, blowdown lines, and high-temperature turbine drain systems.

• Petrochemical Refineries: Isolating hazardous gases, high-pressure hydrocarbons, and volatile refinery fractions.

Frequently Asked Questions (FAQ)

Q: What is the primary operational difference between a Full Bore and a Reduced Bore globe valve?

A: A Full Bore valve has an internal port diameter that matches the inside diameter of the connected pipe, minimizing fluid resistance and offering higher flow coefficients (Cv). A Reduced Bore valve features internal seating orifices that are one size smaller than the pipe size. Reduced bore valves are highly economical and optimal for utility lines where a moderate pressure drop is acceptable or preferred for throttling control.

Q: Why does the API 602 standard restrict forged steel globe valves primarily to smaller sizes (up to 2 inches)?

A: API 602 is the definitive international standard for compact, small-bore forged steel valves. Forging requires massive mechanical presses to stamp solid steel blocks into shape. While it creates an incredibly dense and strong valve body perfect for handling extreme pressures up to Class 2500, forging valves larger than 2 inches becomes extremely cost-prohibitive. For pipelines larger than 2 inches, API 600 / BS 1873 Cast Steel Globe Valves are specified instead.

Q: What is the significance of the black manganese phosphating surface treatment?

A: Forged carbon steel is highly susceptible to superficial rusting when exposed to outdoor humidity, marine salt spray, or ambient industrial plant moisture. To combat this, we treat our valve exteriors with an advanced manganese phosphating process. This chemical conversion layer permanently alters the surface steel, providing an ultra-durable, corrosion-resistant black barrier that resists scuffing and oxidation.

Q: When should an engineering team choose a Welded Bonnet over a standard Bolted Bonnet?

A: A Bolted Bonnet is highly versatile and preferred for standard lines because it can be unbolted for quick routine maintenance. However, for critical high-vibration systems, severe thermal cycling, or hazardous fluid lines (Class 1500 and 2500), a Welded Bonnet is highly recommended. Welding the bonnet directly to the body permanently removes the body-bonnet gasket joint, eliminating the primary source of fugitive emissions and potential gasket blowouts.

Q: How can domestic procurement managers and global suppliers coordinate bulk sourcing from Rajkot?

A: Sourcing can be initiated by contacting our technical sales and engineering desks at our Rajkot headquarters. As a fully unified manufacturer, supplier, and exporter, FlowBiz provides complete material test reports (MTRs), physical-chemical validation logs, and certified dimensional layouts. We offer flexible sea and air freight logistics to ensure seamless international procurement at factory-direct B2B pricing.

Are you optimizing a high-pressure steam utility manifold or updating a severe-duty fuel oil injection grid? Contact our Rajkot sales and engineering division today to receive comprehensive technical data sheets, certified layouts, and an itemized commercial proposal.
