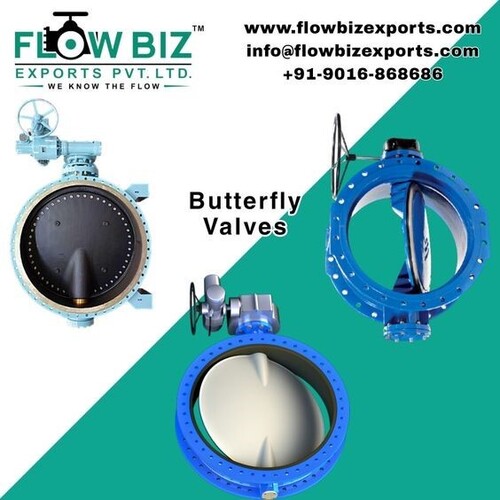

High Performance Offset Disc Butterfly Valve Manufacturer Pune

FlowBiz Engineered Offset Disc Butterfly Valves: High-Performance Isolation for Heavy Industry

FlowBiz Exports Pvt. Ltd. brings decades of advanced metallurgy and design expertise to the forefront with our industrial-grade Offset Disc Butterfly Valves. Engineered explicitly for severe service applications within the hydrocarbon, energy, and process industries, these high-performance valves offer absolute sealing integrity, exceptional cycle life, and precise throttling control.

Unlike standard concentric valves, our offset configurations drastically reduce seat wear by lifting the disc cleanly away from the sealing ring upon initial rotation. This minimizes operating torque and preserves the seal face during continuous, high-cycle operations under extreme pressures and thermal loads.

Technical Specifications & Engineering Framework

Our engineering and manufacturing capabilities support a massive spectrum of size and material profiles to ensure seamless integration into complex global infrastructures.

Comprehensive Metallurgy Matrix

To combat localized chemical erosion, high-temperature oxidation, and abrasive wear, FlowBiz constructs components from specialized alloys:

• Steels: Carbon Steels, Low-Temperature Carbon Steel (LTCS), Martensitic Steels, Austenitic Stainless Steel.

• Advanced Alloys: Duplex and Super Duplex Stainless Steels, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel, and Titanium Alloy.

• Corrosion Protection: Carbon Steel bodies upgraded with internal Corrosion Resistant Alloy (CRA) Cladding/Overlay for aggressive hydrocarbon processing.

Critical Structural Types & Configurations

1. Center Disc (Concentric)

The stem is centered directly in the middle of the disc and the valve body. Ideal for low-pressure, low-temperature water and non-hazardous utility lines where elastomeric seats provide a dependable seal.

2. Double Offset (High-Performance)

Features two distinct offsets: the shaft centerline is offset from the seating surface centerline, and it is also offset from the centerline of the valve bore. This eccentric movement causes the disc to engage the seat only during the final few degrees of closure, virtually eliminating friction throughout the cycle.

3. Triple Offset (Severe Service Zero-Leakage)

Introduces a third offsetthe right-angled cone geometry of the sealing face. This creates a camming action during closure that achieves a completely uniform mechanical seal without any sliding friction. It allows for a metal-to-metal bubble-tight shutoff, making it the premier choice for high-pressure steam, oil, and volatile gas applications.

Actuation & Versatile Pipeline Connections

To facilitate smooth automated process management, FlowBiz valves interface perfectly with multiple drive mechanisms: Manual Hand Lever, Mechanical Gear Boxes, and Automated Actuators (Pneumatic, Hydraulic, Electro-Hydraulic, or Electric Motorized).

Body Styles to Fit Any Piping Layout:

• Wafer Style: A lightweight, compact profile designed to be sandwiched directly between pipeline flanges. Highly economical for space-critical applications.

• Lug Style: Features independent threaded bolt holes across the perimeter. This configuration allows for dead-end service, meaning downstream piping can be safely unbolted while the upstream side remains fully pressurized.

• Flanged Style: Equipped with integral flanges that match standard pipe flanges, offering maximum structural strength and joint stability in heavy-wall, large-diameter high-pressure pipelines.

Frequently Asked Questions (FAQs)

Q: Why should an operator specify a Double or Triple Offset butterfly valve over a standard Concentric model?

A: Concentric butterfly valves rely on a rubber seat that continuously rubs against the disc during the entire 90 turn, causing rapid seat erosion, higher torque requirements, and potential tearing at high temperatures or pressures. Double and triple offset designs lift the disc completely out of the seat upon initial crack-open, eliminating friction, lowering operating torque, and enabling the use of durable metal seats suitable for severe hydrocarbon and high-temperature steam lines.

Q: What specific benefits does a CRA (Corrosion Resistant Alloy) internal overlay provide?

A: In high-sour crude oil processing or chemical lines, constructing a massive 88 valve entirely out of solid exotic alloys like Inconel or Hastelloy is incredibly cost-prohibitive. A CRA overlay involves precision welding a thick protective layer of an exotic alloy onto a standard carbon steel valve body. This provides the structural strength of carbon steel at a lower price point while giving the internal wet parts premium chemical and pitting corrosion resistance.

Q: When is a lug style connection preferred over a wafer style connection?

A: While both styles sit between flanges, a wafer valve cannot be used for dead-end isolation because removing downstream piping leaves nothing to clamp the valve in place. A lug style valve has independent threaded lugs bolted from both sides. This allows you to safely disconnect the downstream side of the line for maintenance while the valve remains securely bolted to the live upstream side, acting as a reliable isolation barrier.

Q: Which inspection and compliance standards verify the pressure containment safety of FlowBiz valves?

A: Every single valve batch undergoes rigorous non-destructive examination (NDE) and hydrostatic testing according to API 598, API 6D, and ISO 5208. These test protocols subject the valve body shell and internal seats to pressure thresholds well above their operational limits to confirm zero structural leakage and complete compliance with ASME B16.34 parameters before shipment from our Pune hub.

Q: What role do electro-hydraulic actuators play in heavy-duty oil and gas pipelines?

A: Electro-hydraulic actuators combine the fast response time, immense holding force, and smooth torque delivery of a hydraulic piston with the clean, modern digital controls of an electric system. They are widely utilized in critical emergency shutdown (ESD) loops or remote isolation points where huge, high-pressure valves (such as a 48-inch Class 600# unit ) must close tightly within seconds against immense line velocities.

Q: How does the API 609 standard regulate butterfly valve design?

A: API 609 outlines strict structural design parameters for face-to-face dimensions, pressure-temperature ratings, shaft sizing, and minimum wall thicknesses for butterfly valves. By manufacturing in accordance with API 609 and MESC guidelines, FlowBiz guarantees that our valves are fully interchangeable with existing global plant infrastructure, making replacement straightforward and hassle-free.
