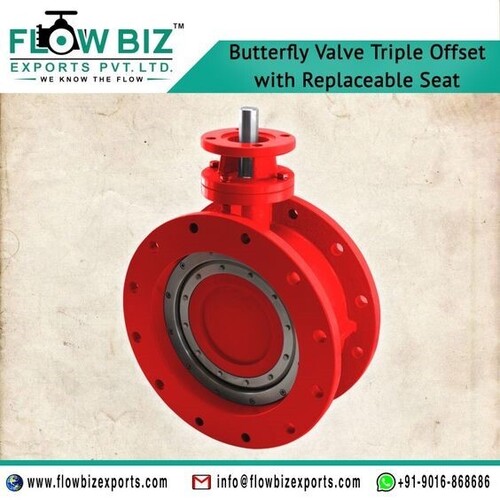

FlowBiz Premium Triple Offset Butterfly Valves: High-Pressure Zero-Leakage Performance

Industrial processing corridors, high-pressure steam networks, and abrasive chemical lines require isolation hardware capable of maintaining absolute sealing integrity under severe thermal and mechanical stresses. FlowBiz Exports Pvt. Ltd. fulfills this technical requirement with our state-of-the-art Triple Offset Butterfly Valves.

Engineered and manufactured at our advanced production facilities and supplied throughout Pune, Maharashtra, these valves represent the highest tier of quarter-turn isolation technology. Unlike standard or high-performance double-offset valves that rely on continuous elastomeric friction, the triple offset design utilizes an advanced geometric layout to achieve a true metal-to-metal tight shut-off. This completely eliminates friction throughout the disc's entire 90 travel path, making it an excellent asset for critical high-temperature, high-pressure, and abrasive applications where zero leakage is non-negotiable.

Technical Specifications & Parameter Matrix

Our triple offset butterfly valves are fabricated, machined, and rigorously evaluated to meet modern industrial safety and containment benchmarks.

Understanding the Triple Offset Geometry

To fully appreciate the performance advantages of this valve, it is essential to understand how its three distinct geometric offsets work together to eliminate friction:

• Offset 1 (Shaft Eccentricity): The centerline of the shaft is placed behind the sealing plane of the seat. This allows for a continuous, uninterrupted 360 sealing surface.

• Offset 2 (Centerline Eccentricity): The centerline of the shaft is offset to one side of the pipe's centerline. This eccentricity allows the disc to lift cleanly away from the seat within the first few degrees of opening, minimizing friction during operation.

• Offset 3 (Cone Angle Geometry): The axis of the seat's sealing cone is inclined relative to the pipeline centerline. This creates a camming effect as the valve closes. Instead of sliding into place, the disc rotates smoothly into the seat like a wedge, achieving a tight, friction-free seal at the final fraction of a degree of closure.

       [ CONICAL SEAT AXIS ]
              /
             /   <- Offset 3: Inclined Conical Geometry
            /
    ======/====== [ PIPELINE CENTERLINE ]
         |
         | <--- Offset 2: Shaft Offset from Pipe Centerline
       ( O ) <--- Offset 1: Shaft Positioned Behind Disc Face

Key Performance & Structural Advantages

1. Inherently Fire-Safe Laminated Seals

Because the sealing matrix relies entirely on high-grade stainless steel laminations interleaved with graphite or pure metal-to-metal contact, there are no soft elastomeric or plastic parts to degrade, warp, or melt. This makes the FlowBiz triple offset valve inherently fire-safe, ensuring it maintains absolute structural sealing integrity during and after severe facility thermal spikes.

2. Frictionless Longevity for Abrasive Media

In standard valves, particulates or crystals trap between the disc and seat, causing deep scratches and sudden drop-by-drop downstream leaking. Because our triple offset geometry lifts the disc cleanly out of the seat without sliding friction, the sealing faces experience minimal wear. This drastically extends the valve's field service life up to three times over conventional designs in abrasive applications.

3. Lightweight Wafer-Type Connection Profile

Designed with a wafer-type connection, these valves feature a compact face-to-face profile that slides directly between standard pipe flanges. This configuration uses up to 70%  less physical metal mass than heavy gate or globe valves, reducing pipeline weight loads and simplifying system integration across various pipe sizes.

Trusted Supply, Manufacturing, and Logistics Across India

As a renowned manufacturer, supplier, exporter, and trader, FlowBiz Exports Pvt. Ltd. delivers certified fluid control solutions worldwide from our core industrial hubs in India. Every production lot undergoes a series of strict quality checks, including material trace validation, mandatory high-pressure hydrostatic shell testing to confirm wall density, and dual-direction seat diagnostics to ensure zero structural weeping before site dispatch. We manage all logistics and documentation directly, delivering to:

• Maharashtra: Pune, Thane, Mumbai, Nashik, Aurangabad, Satara, Sangli, Nagpur, Kolhapur

• Gujarat: Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch

• Pan-India Corridors: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and all major industrial zones.

Frequently Asked Questions (FAQs)

Q: Why is a triple offset butterfly valve specified over a standard gate valve for high-temperature steam lines?

A: Gate valves are heavy, slow to operate, and prone to "thermal binding"a dangerous condition where thermal expansion jams the metal wedge tightly inside the body seats, making it impossible to open manually. A triple offset butterfly valve features a highly compact, lightweight profile, cycles completely with a fast 90  turn, and relies on an angled camming design that easily handles rapid temperature variations without sticking or binding.

Q: What is the recommended step-by-step process for installing a wafer-type triple offset valve?

A: 1. Move the valve disc into a semi-open position before insertion to prevent the disc edge from scraping or catching against the pipe face.

2. Align the adjacent pipeline piping parallel to each other and clear away any dirt, scale, or welding slag.

3. Insert a compatible high-temperature industrial gasket against both flange faces.

4. Center the wafer valve body concentrically between thecompanion flanges using the body alignment lugs.

5. Pass long flange studs through the entire perimeter and tighten the nuts progressively in an alternating star-pattern sequence using a torque wrench to ensure uniform gasket compression.

Q: How does manual operation contribute to overall system reliability during power failures?

A: Automated pneumatic cylinders or electric motors rely entirely on continuous electricity, instrument air lines, and digital control loops. If a facility experiences a total power outage or a compressed air failure, automated valves can freeze or fail completely. A manual lever or gear-operated triple offset valve operates entirely independent of external power grids, ensuring that field operators can always achieve instant, reliable isolation during an emergency turnaround.

Q: What explicit maintenance protocols ensure the longest field lifespan for metal-to-metal seats?

A: Because the triple offset design eliminates sliding friction, routine maintenance requirements are minimal. Plant technicians should periodically check the tightness of the surrounding flange fasteners, visually inspect the external stem packing region for any signs of product weeping, and check that the manual gear operator moves smoothly through its full travel path to keep the internal gears well lubricated.

Q: How can project procurement teams request a custom quotation or technical submittals from Pune?

A: Project managers and procurement teams can contact our Pune sales and engineering desk directly with your specific project criteriaincluding nominal sizes (2 to 12 inches), fluid velocity, temperature limits, and application parameters. Our technical team will guide you through the product selection matrix, compile a transparent price quotation, and coordinate production to align with your facility's installation timeline.
