Industrial Y-Type Strainers: Advanced Pipeline Protection, Technical Design, and Specifications

In fluid piping systems and continuous-process plants, particulate contaminationsuch as pipeline scale, rust, sediment, and installation debrisposes a constant threat to high-value downstream machinery. A Y-Type Strainer is a compact, mechanically robust filtration device designed to intercept and trap these solid contaminants.

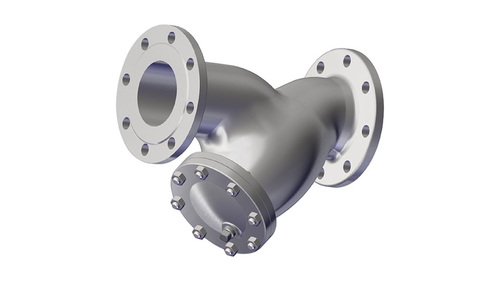

Named for its "Y" shaped geometry, this strainer features a compact footprint that seamlessly integrates into dense piping manifolds. By routing process media through a precision-engineered internal screen, it offers a reliable, low-pressure-drop defense that extends the operational lifespan of pumps, control valves, meters, and thermal equipment.

FlowBiz Export Private Limited is a premier global manufacturer, supplier, and exporter of high-performance industrial valves and filtration equipment. Anchored by advanced manufacturing and logistics hubs across Pune, Maharashtra and Vapi, Gujarat, India, FlowBiz engineers durable, high-capacity pipeline protection solutions configured to meet strict international processing and utility mandates.

Technical Specifications & Product Matrix

FlowBiz Y-Type Strainers leverage advanced casting methods to ensure uniform wall thickness and structural density. They are available in diverse material grades and connection styles to suit wide-ranging industrial profiles.

Key Engineering Parameters

Critical Engineering Features & Advantages

1. High-Integrity Metallurgy and Corrosion Defense

Industrial process headers routinely transport aggressive fluids under fluctuating physical stresses. FlowBiz utilizes premium grades such as SS 304 and SS 316 for the internal screen elements to eliminate the risk of pitting, chemical wear, and structural erosion. Furthermore, our metallic cast bodies can be augmented with high-build epoxy or polyurethane protective coatings to safeguard the external assembly from aggressive atmospheric rust and harsh plant conditions.

2. Dual-Orientation Versatility and Maintenance Ease

Our Y-strainers are precision-balanced to perform reliably in both horizontal and vertical pipeline layouts. Every casting features a highly visible, cast-in flow direction arrow to eliminate field installation errors. The angled filtration leg points downward, acting as a natural collection pocket. This leg houses a heavy-duty drain plug, which allows for fast line blowdowns and particle flushing without requiring a full system shutdown or complete disassembly.

3. Precision Screen Filtration & Asset Protection

With an available internal screening matrix spanning from 40 mesh up to 200 mesh, plant engineers can tightly calibrate filtration performance based on fluid dynamics. Removing these unwanted suspended particles safeguards expensive downstream impellers, valve seats, and precision meters from abrasive wear, surface scoring, and clogging. This directly reduces unscheduled process downtime.

Strategic Industrial Application Scope

• Refineries & Petrochemical Plants: Pre-filtering heavy hydrocarbons, crude fractions, and oil inputs prior to pump lines.

• Chemical Processing Facilities: Isolating chemical process inputs, acids, and gases from line scale and chemical solids.

• Power Stations & Steam Utilities: Straining high-velocity saturated or superheated steam loops and condensate return systems.

• Municipal Water Supply & Wastewater Handling: Serving as primary utility filters in water treatment, distribution headers, and cooling towers.

Frequently Asked Questions (FAQ)

Q: How does an engineer select the ideal screen mesh size (40 vs. 200 mesh) for a piping system?

A: The selection depends on fluid viscosity, permissible pressure drop (Pressure Difference), and the size of the particles you need to intercept:

• 40 Mesh Screens: Feature larger openings and are ideal for high-viscosity oils, raw water intake, and general utility headers where removing large pipe scale or debris is the goal while keeping pressure drop low.

• 200 Mesh Screens: Provide ultra-fine filtration with tightly woven wire cloth. These are ideal for low-viscosity liquids, gases, steam headers, and critical chemical lines that feed into precision nozzles or sensitive analytical instruments.

Q: What is the recommended orientation for a vertical Y-strainer installation?

A: When installing a Y-strainer in a vertical pipeline, the fluid must flow downward. This orientation ensures that gravity naturally sweeps the captured debris down into the angled straining leg. If installed on an upward vertical flow line, trapped debris would fall backward down the pipe whenever flow stopped, causing clogs and bypassing the collection pocket entirely.

Q: What routine cleaning procedure should maintenance teams follow?

A: Routine maintenance is straightforward and highly efficient:

1. Isolate and depressurize the strainer section using adjacent pipeline valves.

2. Carefully remove the heavy-duty threaded drain plug on the bonnet cover to blow down accumulated particles and liquid.

3. For deep cleaning, unbolt or unscrew the bonnet cover, lift out the reusable SS 304/316 screen cylinder, flush it with a cleaning solvent or water jet, inspect the cover gasket, and reassemble the unit.

Q: What advantages do customized port configurations provide for large-diameter pipelines?

A: For unique, large-scale systems over 24 inches, off-the-shelf standard sizes can force engineers to make costly layout modifications. FlowBiz offers fully customized face-to-face dimensions, port geometries, and end connections (flanged, screwed, or butt-weld). This customizable engineering guarantees a direct drop-in fit that aligns perfectly with existing space envelopes, preserves optimal hydraulic flow velocities, and minimizes line turbulence.
