High-Integrity PTFE / PFA Lined Plug Valves FlowBiz Gandhidham

Welcome to FlowBiz Export Private Limited, a globally recognized manufacturing authority for severe chemical containment, zero-leakage fluid isolation, and high-consequence process line regulation. Operating advanced fluoropolymer molding cells and high-pressure compliance laboratories, we are India's premier manufacturer, supplier, and global exporter of industrial Lined Plug Valves.

Our chemically inert plug valves are engineered to manage the industry's most aggressive acids, corrosive alkalis, and toxic media without risk of leakage or material degradation. With a strategic corporate manufacturing and distribution network operating out of Gandhidham, Kutch (Gujarat), we seamlessly fulfill critical infrastructure demands across all major industrial corridorsincluding Ahmedabad, Vapi, Valsad, Surat, Ankleshwar, Bharuch, Mumbai, Pune, and Chennaibacked by fast-tracked maritime logistics via nearby Deendayal Port (Kandla) for global export.

Technical Specifications & Dynamic Operating Profiles

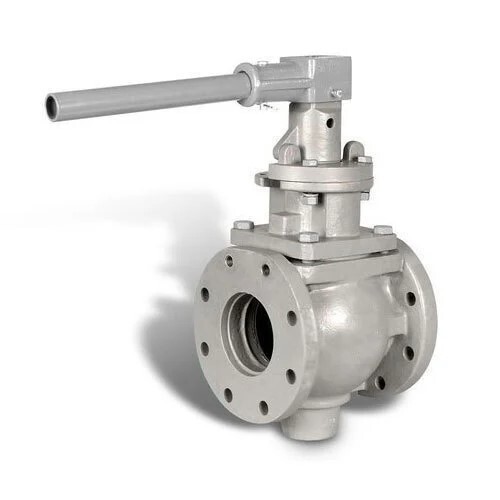

FlowBiz Lined Plug Valves are designed with a cavity-free configuration. Unlike standard ball valves, which incorporate internal body recesses that trap fluid, a lined plug valve utilizes a robust cylindrical or tapered plug fully encapsulated by a virgin fluoropolymer layer. This provides a clean, straight-through flow path that functions efficiently as an open/close switch or a modular throttling adjustment for industrial fluids and gases.

Core Engineering Features & Design Advantages

1. Zero-Cavity Self-Cleaning Sealing Architecture

Standard ball valves incorporate localized internal cavities surrounding the rotating ball element. When handling crystallizing media, polymers, or fine slurries, fluids get trapped inside these pockets, where they solidify and seize the valve mechanism. The FlowBiz Lined Plug Valve features a zero-cavity configuration. The entire space between the plug and the outer housing is occupied by a thick, seamless fluoropolymer layer, which prevents fluid accumulation and ensures self-cleaning operation during cycling.

2. High-Voltage Spark-Tested PTFE/PFA Lining Matrix

Our valves feature a premium protective lining (minimum thickness of 3 mm) molded and mechanically anchored into the interior of the armored metal body casing. We utilize virgin PTFE or PFA coatings that remain completely inert when exposed to highly concentrated acids, strong alkalis, and aggressive organic solvents. This lining prevents process fluids from making contact with the underlying metallic castings, entirely eliminating corrosion risks.

3. Complete Dual-Directional Leak-Free Shut-Off

The large, tapered sealing surface area of the plug exerts continuous mechanical compression against the molded body lining. This configuration achieves an absolute API 598 bi-directional, bubble-tight shut-off for both high-vacuum lines and positive high-pressure fluid networks, making it an excellent choice for critical chemical isolation zones.

4. Advanced Top-Seal Bonnet Assembly

To satisfy strict fugitive emission regulations, our valves are built with a multi-layered, adjustable top bonnet seal. This setup applies uniform pressure down across the plug stem shank, protecting the plant atmosphere from volatile fumes or toxic gas leakage. The exterior of the metal body shell receives a high-build industrial blue protective coating to withstand aggressive plant environments.

Strategic Severe-Service Process Applications

FlowBiz high-grade lined plug valves are specified across demanding processing grids:

• Aggressive Acid & Caustic Transport: Absolute containment and regulation of concentrated hydrochloric acid, sulfuric acid, nitric acid, wet chlorine gas, and strong sodium hydroxide lines.

• Petrochemical & Refining Processes: Boundary isolation for volatile catalysts, sour water lines, organic solvents, and aggressive manufacturing effluents.

• Pharmaceutical & Chemical Synthesis: High-purity ingredient transport lines, bulk chemical feeding grids, and cleaning utility headers requiring zero-contamination risks.

• Desalination and Industrial Water Units: Managing highly concentrated sea-salt brines, chemical backwash loops, and acidic chemical dosing skids.

Frequently Asked Questions (FAQ)

Q: Why should an engineer specify a lined plug valve instead of a standard lined ball valve for crystallizing chemicals?

A: When a standard ball valve is turned to the closed position, a fractional volume of the process fluid becomes trapped inside the hollow body cavity surrounding the ball. If that fluid contains polymers, concentrated salts, or acids, they will settle, dry, and crystallize inside those dead zones, locking the valve or tearing the soft seats during the next stroke. A Lined Plug Valve has a zero-cavity internal design. The fluid sweeps completely through the valve with no dead spaces available for accumulation, making it ideal for media prone to crystallization or solidification.

Q: Why is Carbon Steel (WCB) or Stainless Steel preferred over standard Cast Iron for the outer armored body of a lined valve?

A: Standard grey cast iron has a brittle crystalline microstructure that is vulnerable to cracking under structural pipeline stress, thermal expansion loops, or sudden external mechanical impacts. ASTM A216 WCB Carbon Steel and ASTM A351 CF8M Stainless Steel provide high tensile strength, excellent ductility, and pressure containment resilience. This ensuring that the outer armored shell can safely manage systemic pipeline stresses while the internal PTFE lining handles chemical corrosion.

Q: What is the purpose of conducting a high-voltage electrostatic spark test during manufacturing?

A: Even a microscopic pinhole, air bubble, or thin spot inside the molded PTFE/PFA lining could allow aggressive chemicals to leak through, causing rapid corrosion of the outer metal housing from the inside out. To prevent this failure mode, FlowBiz subjects 100% of our lined valves to a high-voltage electrostatic spark test (typically calibrated between 1015 kV). If any structural void exists, a visible spark arcs through the lining to the ground, allowing our quality controllers to isolate and reject the component immediately.

Q: Can a lined plug valve be automated with pneumatic or electric actuators?

A: Yes. FlowBiz lined plug valves are manufactured with a standardized topworks mounting pad that complies with ISO configuration standards. While manual levers are standard for basic lines, our plug assemblies can be fitted with a mechanical Worm Gearbox, a Pneumatic Rack-and-Pinion Actuator, or a high-precision Electric Actuator to support automated process automation and remote emergency shutdown (ESD) networks.

Q: How can project procurement managers and engineers in Gandhidham arrange a factory-direct quote?

A: Sourcing can be initiated by contacting our dedicated corporate sales division in Gandhidham, Kutch (Gujarat). Our application engineering division will guide you through a comprehensive technical consultationassessing your pipeline size requirements (1/2"\ to 12"), target pressure classes, precise chemical concentrations, and operating temperature profilesto deliver a certified technical submittal package and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing an aggressive chemical process loop or upgrading an industrial wastewater treatment manifold? Contact our Gandhidham sales and engineering office today to receive comprehensive technical sheets, dimensional blueprints, and an itemized commercial proposal.
