In industrial piping networks where high-frequency cycling, volatile media, and strict maintenance schedules are the norm, minimizing downtime is a critical economic priority. FlowBiz Exports Pvt. Ltd. delivers an uncompromised solution with our high-performance Three-Piece Floating Ball Valves.

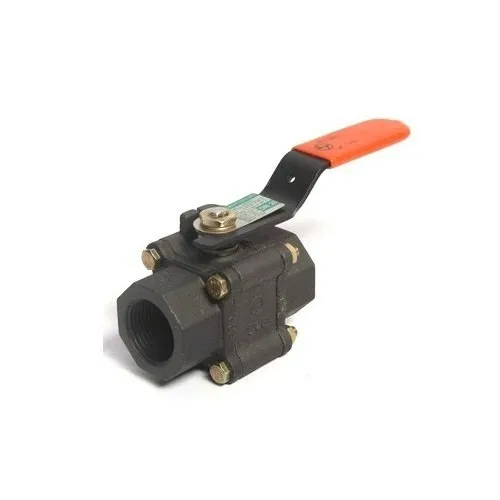

Engineered for exceptional flow control, rapid inline servicing, and extreme durability, these valves represent the gold standard for modern fluid and gas mechanics. Beyond our proprietary premium designs, FlowBiz provides complete distribution, expert sourcing, and advanced alternative engineering for Audco Make 3-Piece Ball Valves, catering to both domestic and international markets.

Anatomy of a Three-Piece Ball Valve

The defining characteristic of a three-piece ball valve is its modular, three-component housing assembly. It consists of one central main body containing the floating ball, stem, seats, and seals, sandwiched between two end connections that attach directly to the pipeline.


    End Piece          Central Main Body         End Piece
   (Threaded/       (Contains Ball,       (Threaded/
   Flanged/Weld)        Seats & Seals)          Flanged/Weld)



            Swing-out center body allows for rapid servicing
               while end pieces remain fixed to the pipe.

The Ultimate Maintenance Advantage

• Zero-Shutdown Servicing: When internal seats or elastomeric seals wear out, technicians simply loosen the casing bolts and swing or lift out the central body section. The two end pieces remain completely undisturbed in the pipeline, eliminating the need for complex, costly pipe-cutting or system reconstruction.

• Thermal Protection During Welding: In systems requiring welded connections, standard one- or two-piece valves risk internal seat damage from excessive welding heat. With the FlowBiz three-piece design, installers weld the end connections securely in place while the central trim section is safely moved out of harm's way, preserving the integrity of the delicate elastomers.

• Adaptable Elastomer Swapping: The modular configuration makes it incredibly straightforward to swap out internal seals and seats to match shifting plant conditionsallowing a single valve body to adapt to varying chemical processes, pressure spikes, or temperature swings.

Technical Specifications & Product Profiles

Our three-piece floating ball valves are meticulously polished and crafted from premium alloys, ensuring robust corrosion resistance and high mechanical strength under demanding operations.

Diverse Industrial Applications

FlowBiz and Audco Make Three-Piece Ball Valves deliver reliable bubble-tight isolation across a broad spectrum of rigorous processing sectors:

• Gas & Utility Applications: Offers absolute, leak-free containment for high-pressure industrial gas lines and pneumatic distribution.

• Petrochemical & Refining Plants: Resists aggressive hydrocarbons and corrosive refinery byproducts.

• Pharmaceutical & Food Processing: Clean, polished stainless steel configurations resist biological contamination and simplify clean-in-place (CIP) regimens.

• Chemical Manufacturing: Handles volatile solvents, acids, and reactive intermediate fluids.

• HVAC & Commercial Infrastructure: Regulates high-volume chilled water loops, low-pressure steam lines, and cooling systems.

Frequently Asked Questions (FAQs)

Q: Why should a 3-piece ball valve be chosen over a 1-piece or 2-piece design?

A: A 3-piece ball valve should be selected whenever frequent maintenance, inspection, or seat replacement is expected. While 1-piece and 2-piece valves must be entirely cut out or unthreaded from the piping grid for servicing, a 3-piece valve lets you slide the central wear-components out in minutes while the ends remain rigidly connected to the line.

Q: How does a "floating" ball design work in these valves?

A: In a floating ball design, the ball is not fixed by an anchor stem (trunnion). Instead, it is suspended between two resilient polymer seats. When the valve is closed, upstream fluid pressure gently pushes the ball against the downstream seat, maximizing the sealing force and guaranteeing a bubble-tight shutoff.

Q: What is the benefit of the polished finish and protective black coating options?

A: The polished finish smoothes away micro-porosities in the metal, enhancing resistance to environmental pitting and stopping chemical residue from gripping the exterior shell. Specialized black coatings provide an additional layer of defense against harsh ambient atmospheric corrosion found in coastal or chemical plant zones.

Q: Can these valves be automated?

A: Yes. FlowBiz three-piece valves feature integrated top pads designed to mount pneumatic or electric actuators seamlessly. Their smooth mechanical operation and low operating torque profiles ensure highly efficient automated flow tracking.

Q: What is the ideal procedure for cleaning internal valve components?

A: To service the valve, isolate the line pressure and remove the casing fasteners holding the center body. Swing the center section out, clean or swap the internal PTFE seats and seals, and bolt the section back together. This quick, user-friendly process drastically lowers operational overhead and minimizes plant downtime.

Q: How can global and domestic industries place bulk orders with FlowBiz?

A: Operating as a premier manufacturer, supplier, and global exporter from India, FlowBiz Exports Pvt. Ltd. fulfills volume requests for both proprietary designs and certified Audco Make valve systems. Contact our engineering sales division through the corporate web portal to receive complete technical data sheets, dimensional drawings, and tailored commercial quotes.
