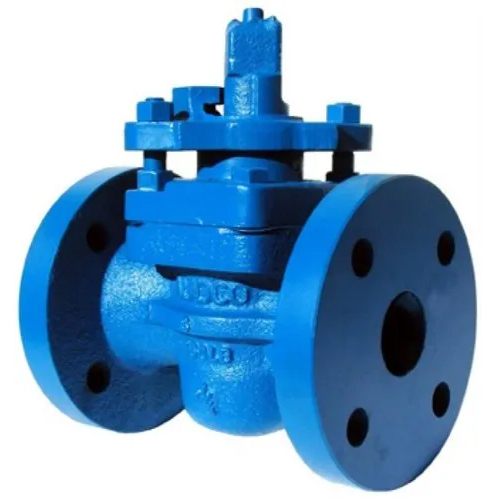

FlowBiz Exports Pvt. Ltd. | Premier Supplier & Engineering Alternative for AUDCO Regular Pattern Cast Iron Plug Valves

In high-pressure industrial gas processing and heavy-duty utility management, securing a bubble-tight isolation mechanism is vital for operational safety and fluid containment. FlowBiz Exports Pvt. Ltd. provides premium sourcing, competitive distribution, and high-performance alternative engineering for the globally trusted AUDCO Regular Pattern Cast Iron Plug Valves.

Available in both quick-acting wrench configurations and high-torque worm-gear designs, these heavy-duty flanged plug valves are designed to meet rigid dimensional benchmarks and handle highly demanding industrial gas distribution applications.

Technical Specifications & Product Profiles

The AUDCO Regular Pattern series is built from premium-grade cast iron and split into two primary operational variations to accommodate different manual and automated plant layouts.

1. AUDCO Wrench-Operated Cast Iron Plug Valve

• Figure Number: LW11 / LW13

• Size Range: 2 Inch to 8 Inch (50 mm to 200 mm)

• Pressure Rating: 175 PSI Maximum Working Pressure (MWP)

• Body Material: High-Strength Cast Iron

• End Connection: Flanged End

2. AUDCO Worm Gear-Operated Cast Iron Plug Valve

• Figure Number: LG11 / LG13

• Size Range: 2 Inch to 8 Inch (50 mm to 200 mm)

• Pressure Rating: 175 PSI Maximum Working Pressure (MWP)

• Body Material: High-Strength Cast Iron

• End Connection: Flanged End

International Design Standards & Engineering Integration

Every AUDCO Regular Pattern plug valve is meticulously machined to align with strict global industrial piping dimensions, allowing for seamless drop-in replacements during plant upgrades:

• Face-to-Face Dimensions: Fully conforming to BS 1735 specifications for Class 125 Cast Iron Gate Valves, ensuring standardized inline spacing.

• Flange Drilling & Geometry: Flange dimensions and drilling conform directly to ANSI B16.1 Class 125 and BSPT "D" standards under BS 10 across the entire portfolio.

• Tapped Flange Engineering: For sizes spanning 8" to 12", flanges are drilled as standard unless otherwise stated. To accommodate the dense internal layout of the valve body, specific holes in each integral flange are precision-tapped, requiring heavy-duty studs of the exact same diameter as the standard bolts they replace.

Key Performance Advantages

Built for High-Pressure Gas Demands

Rated for a maximum working pressure of 175 PSI, these regular pattern valves feature a robust wall thickness that withstands severe pressure drops and surges. They provide exceptional, uncompromised control for gas distribution, line isolation, and regulating loops.

Advanced Actuation & Operation

While manual wrench handles provide rapid quarter-turn control for smaller sizes, the worm-gear variants (LG11/LG13) utilize mechanical advantage to smoothly rotate the plug in larger lines, significantly lowering the physical torque overhead. Additionally, the top-flange configurations are highly adaptable for pneumatic actuation, facilitating quick automated responses in critical process loops.

Industrial Corrosion Barrier

The entire cast iron assembly is finished with a durable, high-build protective blue finish. This coating system provides excellent protection against surface oxidation, chemical splash-back, and harsh outdoor ambient conditions.

Targeted Industrial Applications

Thanks to their rigid construction and reliable metal-seated sealing, these valves are an essential asset across major industrial infrastructure layouts:

• Gas Distribution Networks: City gas stations, natural gas lines, and industrial burner management systems.

• Chemical & Refining Facilities: Isolation of low-temperature vapors, process gases, and heavy utility fluids.

• Pneumatic & Compressed Air Infrastructure: Main supply lines for high-volume compressed air systems.

Frequently Asked Questions (FAQs)

Q: Why do some holes in the AUDCO plug valve flange require tapped studs instead of standard bolts?

A: Because of the robust, space-saving design of the regular pattern valve body, the internal fluid chamber sits very close to the flange faces. Tapping select holes directly into the cast iron body allows the valve to be securely attached with studs where there is insufficient rear clearance to fit a standard nut and bolt assembly.

Q: What is the main difference between the LW and LG figure numbers?

A: The LW series (LW11 / LW13) denotes a Wrench-Operated valve, ideal for fast quarter-turn isolation in easily accessible lines. The LG series (LG11 / LG13) features a manual Worm-Gear box, which provides the mechanical leverage necessary to operate the valve smoothly against high differential pressures.

Q: Can these cast iron plug valves be configured for pneumatic operation?

A: Yes. While they come standard with manual gearboxes or wrenches, the stem and yoke configurations can be adapted to interface with pneumatic actuators. This enables high-speed, automated control in gas systems where remote shutoff is required.

Q: What face-to-face dimensions should I use when designing a piping skid for this valve?

A: The face-to-face installation length conforms exactly to BS 1735 Class 125, allowing you to swap out failing gate valves or alternative inline components within the same dimensional envelope without redesigning the pipe run.

Q: How does FlowBiz Exports Pvt. Ltd. support procurement for these valves?

A: Operating from major manufacturing and commercial hubs in Mumbai and Ahmedabad, FlowBiz Exports Pvt. Ltd. provides complete sourcing verification, certified material testing, and global export shipping logistics. Contact our engineering sales desk through our corporate portal to receive detailed dimensional drawings and immediate volume quotes.
