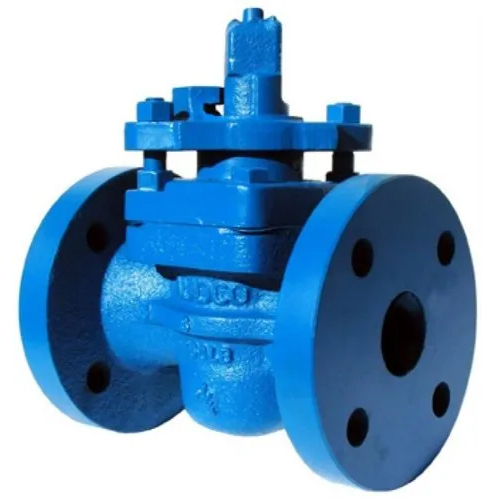

Audco Precisely Engineered Regular Pattern Plug Valve

About Audco Precisely Engineered Regular Pattern Plug Valve

Specification:

These valves' face-to-face dimensions conform to BS1735 for class 125 Cast Iron Gate Valves. Class 125 flange dimensions and drilling by ANSI B 16.1. BSPT "D" flanges and preparing by BS10 except sizes 8" - 12" Flanges drilled unless otherwise stated on order.

Some holes in each flange are tapped and require studs of the same diameter as the bolts, which they replace. These flanged are integral to the valve body and have class 125 diameters.

Product Name:  AUDCO CI Plug Valve (Wrench Operated)

Figure Number: LW11 / LW13

Size Range:   2 Inch to 8 Inch (50mm to 200mm)

Pressure Rating:   175 Max Working Pressure

Material:   Cast Iron

End Connection:  Flanged End

Product Name:  AUDCO CI Plug Valve (Worm Gear)

Figure Number: LG11 / LG13

Size Range:  2 Inch to 8 Inch (50mm to 200mm)

Pressure Rating:  175 Max Working Pressure

Material:  Cast Iron

End Connection: Flanged End

Superior Control for Gas Applications

Audco Regular Pattern Plug Valves offer exceptional control for industrial gas flow, thanks to their precisely engineered design and pneumatic operation. Their application in high-pressure environments ensures consistent and secure sealing, making them essential for gas distribution and regulation. The versatility in available sizes allows for seamless integration into diverse industrial setups.


Built for High-Pressure Demands

These valves are specifically constructed to withstand rigorous pressures commonly found in industrial settings. The robust blue finish not only adds corrosion resistance but also signifies quality and durability. Their suitability for high-pressure gas applications ensures operational reliability and safety for critical industrial processes.
