FlowBiz Exports Pvt. Ltd. | Authorized Supplier & Premium Alternative for AUDCO Cast Iron Plug Valves

In industrial fluid networks, managing tight shutoff while handling volatile, thick, or clean media demands a highly reliable, low-maintenance component. FlowBiz Exports Pvt. Ltd. provides premium distribution, competitive sourcing, and advanced alternative engineering for the internationally renowned AUDCO Make Cast Iron Plug Valves.

Available in light-duty, heavy-duty, and long-pattern flanged configurations, these quarter-turn valves are highly regarded for their robust metal-seated design, high temperature thresholds, and exceptional full-bore flow dynamics.

Technical Portfolio & Product Variants

The AUDCO cast iron plug valve lineup is split into three distinct structural variants designed to balance space, pressure requirements, and overall piping economy.

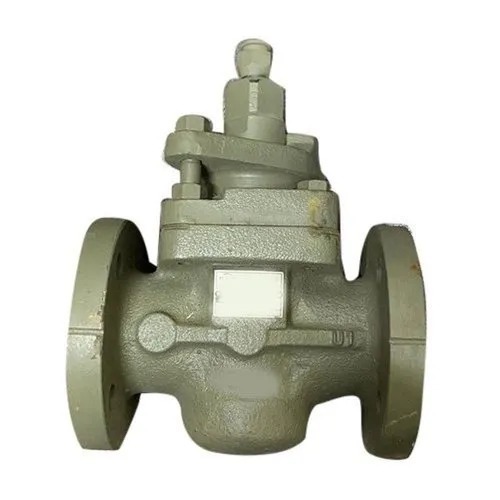

1. AUDCO Light Duty Cast Iron Plug Valve

• Figure Number: IN123

• Size Spectrum: 15 mm to 50 mm ($1/2$ Inch to 2 Inch)

• Pressure Rating: 125 Max Working Pressure (MWP)

• Body Material: High-grade Cast Iron

• End Connections: Screwed End / Threaded

2. AUDCO Heavy Duty Cast Iron Plug Valve

• Figure Number: MW12

• Size Spectrum: 15 mm to 40 mm ($1/2$ Inch to $1\frac{1}{2}$ Inch)

• Pressure Rating: 150 Max Working Pressure (MWP)

• Body Material: Cast Iron

• End Connections: Screwed End

3. AUDCO Long Pattern Cast Iron Plug Valve

• Figure Number: MW11/F/13

• Pressure Rating: 150 Max Working Pressure (MWP)

• Body Material: Cast Iron

• End Connections: Flanged End

Design Insight on Piping Economy: These plug valves feature an engineered port area substantially equal to the internal bore of the connecting pipe. In systems where minimizing total layout envelope is essential, engineers can achieve significant cost savings and space reduction by choosing short-pattern variants without restricting fluid throughput.

Global Engineering & Dimensional Standards

Every AUDCO plug valve is built to meet strict global manufacturing, dimensional, and safety benchmarks:

• Design & Inspection Rules: Manufactured per IS: 0888 and BS 5157, with rigorous physical destructive and non-destructive testing complying with BS 5146.

• Flange Dimensions & Drilling: Fully compliant with Class 125 ANSI B16.1 configurations, as well as BSPT D and F flange dimensions under BS 10 / IS:1538.

• Leakage Integrity: Rated strictly under FCI 70-2 Class IV Leakage Criteria, guaranteeing exceptionally tight shutoff and negligible fluid bypass in the closed state.

Core Operational Advantages

High-Performance Quarter-Turn Action

Featuring a manual quarter-turn ($90^\circ$ rotation) operation mechanism, these valves facilitate rapid fluid isolation. The premium wrench handle, made from cast iron or mild steel, provides optimized mechanical leverage to minimize the physical torque required by the field technician.

Defensive Epoxy Protective Shell

To combat the corrosive elements found in coastal storage facilities and damp plant interiors, the cast iron body is treated with a specialized, high-build epoxy paint coating. This chemical shield stops rust, resists environmental degradation, and decreases long-term maintenance costs.

High Thermal Tolerances

Utilizing heavy-duty metal-to-metal seating accompanied by advanced PTFE or asbestos-free stem packing, this plug valve safely controls extreme media thermal properties reaching up to 220C.

Targeted Industrial Applications

Thanks to their rigid metal-seated construction and solid body castings, AUDCO Plug Valves are heavily specified across demanding cross-country pipelines and processing utilities:

• Municipal & Industrial Water Networks: Bulk water distribution, wastewater lines, and pumping stations.

• Oil & Gas Utility Lines: Transfer lines managing lubricants, light crude oils, and fuel gases.

• Chemical & Process Plants: Isolating non-corrosive process reagents, cooling water loops, and low-pressure steam utilities.

Installation & Maintenance Guidelines

To maximize the service life of your valve assets, follow these core installation protocols:

• Alignment: Install the plug valve based on the exact dimensional layout provided in IS 6155. Ensure the directional flow arrow on the valve body corresponds to the pipeline direction.

• Flange Connection: When securing flanged models to BS 10 Table D/E/F or IS:1538 companions, tighten all fasteners evenly using a progressive star pattern to avoid placing uneven stress on the cast iron flanges.

• Maintenance: Periodically inspect the external epoxy coating for mechanical chips and check the stem area. The clean, top-entry design allows for fast cleaning and repacking without taking the entire valve body out of the piping grid.

Frequently Asked Questions (FAQs)

Q: Why should I choose a metal-seated plug valve over a standard soft-seated ball valve?

A: Metal-seated plug valves offer significantly higher mechanical durability and thermal resistance, safely handling process temperatures up to 220C. Furthermore, the shearing action of the plug against the metal seat wipes away scale and particulates, making it far less prone to jamming than soft-seated configurations.

Q: What does a Class IV leakage rating mean for my plant safety?

A: Class IV (per FCI 70-2) defines a highly restrictive allowable leakage standard for metal-seated valves. It guarantees a highly effective, tight shutoff that protects downstream equipment and operators in critical infrastructure loops.

Q: How do short-pattern plug valves help reduce structural layout costs?

A: Short-pattern plug valves feature a reduced face-to-face installation dimension while preserving the full internal port area. This allows engineers to place lines closer together, decreasing the total weight, spatial footprint, and overall raw material costs of the piping skids.

Q: Are these plug valves appropriate for gas utility lines?

A: Yes. The robust cast iron shell, combined with asbestos-free high-density stem packing, provides excellent containment for gases, compressed air, water, and various grades of industrial oils.

Q: How can I buy genuine AUDCO plug valves or compatible FlowBiz alternatives?

A: FlowBiz Exports Pvt. Ltd. provides complete sourcing, procurement, and expert cross-referencing solutions out of Mumbai and Ahmedabad. Contact our engineering support desk through the official FlowBiz web portal to receive comprehensive technical datasheets, dimensional drawings, and volume pricing structures.
