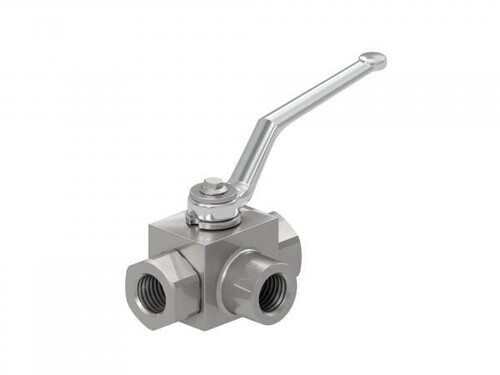

FlowBiz High-Pressure 3-Way Ball Valves Multi-Directional Diversion & Flow Control

Welcome to the engineering authority for high-pressure multi-path process routing, fluid diversion manifolds, and automated stream integration. Operating advanced multi-axis CNC turn-mill centers, micro-finished spherical lapping cells, and API-certified high-pressure test bays, FlowBiz specializes in manufacturing premium-grade 3-Way High-Pressure Ball Valves.

While standard two-way ball valves are restricted to simple open-and-shut isolation, FlowBiz three-way ball valves provide piping system engineers with greater design flexibility. These multi-port units can be configured to simplify, redirect, or split the flow of high-pressure gases and liquids. For instance, a single three-way high-pressure valve can smoothly divert bulk oil transfer lines from one storage tank to an alternate receiver loop. This design eliminates extra shut-off fittings, reduces space requirements, and protects your high-pressure system from accidental overpressurization.

Technical Specifications & Compliance Parameters

Every FlowBiz high-pressure multi-port production block is subjected to 100% rigorous high-pressure hydrostatic testing, pneumatic seat boundary audits, and dimensional compliance checks.

Kinematics & Multi-Path High-Pressure Diverting Geometries

The performance edge of a three-way high-pressure valve relies on aligning the internal channels of the floating or trunnion-supported ball with the pipeline requirements:

 3-WAY L-PORT (STREAM DIVERTING / SWITCHING) 3-WAY T-PORT (BYPASS / MULTI-FLOW ROUTING) POSITION 1: FLOW IN AND RIGHT OUT POSITION 1: TWO BRANCHES CONNECTED \/ \/ +-------++-------+ +-------++-------+ | __ | | __ __ | ========> | | | | ========> | | | | | | ========> High-Press| |==+ / | Blocked Outlet High-Press | |==+==+==+ | Continuous Inflow | |____________ | Line Inflow | |________| | Outflow +-------++-------+ +-------++-------+ \/ \/ POSITION 2: ROTATED 90 REDIRECTS FLOW POSITION 2: ROTATED 90 CLOSES SINGLE PORT

• High-Pressure Stream Diverting (L-Ball Geometry): The L-port configuration features a 90-degree internal channel. Rotating the handle or actuator exactly 90 degrees instantly shifts the incoming high-pressure stream from the primary line to a secondary line. This provides a safe changeover method for relief systems, blending tanks, or backup filters without interrupting stream flow.

• Versatile Flow Mixing & Bypass (T-Ball Geometry): The T-port setup allows fluid to pass straight through while simultaneously feeding a perpendicular branch line. It can also be rotated to block a single port while keeping the other two connected. This gives process engineers a convenient tool for building high-pressure bypass loops or blending lines.

• Flanged Structural Integrity: Our rugged flanged end connections distribute pipeline stress evenly across the joint face. This configuration prevents fluid weeping during sudden pressure spikes or thermal fluctuations, making installation, inline maintenance, and component cleaning straightforward.

Core Engineering Features & Plant Benefits

• Premium Stainless Steel Build: Crafted from high-grade stainless steel alloys, our valves offer exceptional resistance to chemical pitting, erosion from high fluid velocities, and external corrosion.

• Broad Temperature Stability: Retains high structural strength and reliable sealing across severe thermal cycles from freezing -40F to 392F, preventing internal mechanical binding.

• Simplified Piping Infrastructure: Replacing multiple individual isolation valves with a single multi-port unit reduces the number of structural welds and flanged joints needed. This minimizes potential leak paths and lowers overall engineering weight.

• Low Operating Torque: The polished stainless steel ball core moves smoothly against high-purity polymer or reinforced seats. This reduces the mechanical force needed to change flow paths, allowing for easy manual operation or the use of compact actuators.

Strategic Industrial Application Sectors

• Oil, Gas, & Petrochemical Manifolds: Diverting crude fractions, fuels, and solvents between refining loops and storage tank networks.

• Chemical Processing Complexes: Controlling the distribution of aggressive acids, alkaline reagents, and high-pressure process fluids.

• Water Treatment & Desalination Skids: Managing high-pressure pump discharge headers, reverse osmosis backwash runs, and chemical dosing manifolds.

• Industrial Manufacturing Utilities: Regulating high-pressure compressed air, nitrogen distribution grids, and high-temperature utility lines.

Comprehensive Supply Chain Footprint

Operating as a premier manufacturer, exporter, and supplier in India, FlowBiz maintains extensive inventory reserves and coordinates an efficient nationwide distribution network. We provide prompt, certified delivery and full technical support across all major industrial regions:

• Gujarat Processing Hubs: Vapi, Ahmedabad, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, and Bharuch.

• Maharashtra Industrial Networks: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, and Kolhapur.

• Central & Southern Manufacturing Zones: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and all other major regional industrial centers.

Frequently Asked Questions (FAQ)

Q: How can the 3 Way High Pressure Ball Valve be utilized in industrial settings?

A: These valves are designed to switch, mix, or isolate fluid streams cleanly in high-pressure networks routing air, liquids, or gases. They are widely used across chemical plants, municipal water treatment systems, and industrial manufacturing lines where multi-directional flow management is required.

Q: What materials are used in the construction of this ball valve?

A: Our 3-way high-pressure ball valves are manufactured from premium-grade stainless steel alloys (such as SS316 or CF8M). This metallurgy provides exceptional resistance to chemical corrosion, surface abrasion, and thermal degradation, ensuring reliable performance and a long operational lifespan.

Q: When should I choose a 3 way ball valve with flanged ends?

A: A flanged end configuration is highly recommended when your system operates under elevated pressures, experiences significant mechanical vibration, or undergoes regular thermal shifts. The bolted flange connection creates a secure, leak-resistant joint that can be easily unbolted, simplifying routine line maintenance or component cleanings.

Q: Where is this product exported from, and can it be supplied globally?

A: As a trusted manufacturer, exporter, and supplier based in Vapi, Gujarat, India, FlowBiz ships these high-performance valves to domestic projects across India as well as to international global markets, providing full material traceability and engineering support.

Q: What process does the valve control and how does it benefit operations?

A: The valve manages multi-path fluid routing by directing or separating process streams across three independent channels. This setup allows a single valve to replace multiple standard two-way units, which simplifies your pipeline layout, lowers structural weight, and reduces potential leak paths.

Q: How can this valve improve the longevity and safety of my pipeline system?

A: By using high-purity stainless steel castings paired with high-integrity seats that operate effectively from -40F up to 392F, this valve significantly cuts down the risk of localized rust, seat tearing, or external fluid leaks. This durability protects surrounding equipment and lowers ongoing maintenance costs over the lifetime of your pipeline.

Are you updating a high-pressure oil distribution skid that requires an ASME Class 300 flanged 3-way L-port valve, or configuring a chemical refinery manifold in Vapi that demands a Class 150 stainless steel multi-port configuration with a pneumatic actuator? Contact our technical sales and engineering division in Vapi, India today to secure a factory-direct quote and detailed technical review, or ask a single relevant question regarding your specific fluid velocity or cavity relief requirements below to guide the conversation forward.
