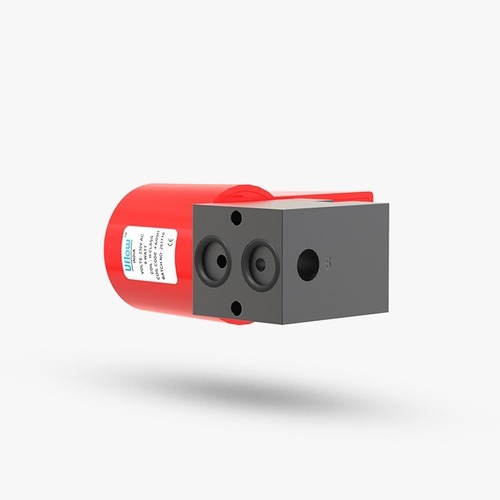

3 Way Direct Acting Poppet Type Valve

Price 2000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

3 Way Direct Acting Poppet Type Valve Specification

Connection Type
Threaded

Valve Type
Direct Acting Solenoid Valve

Control System
Electrically actuated

Material
Brass/SS

Features
Fast response, low leakage, compact design

Valve Size
1/8 inch, 1/4 inch

Application
Industrial automation, pneumatic systems

Structure
Direct acting poppet type

Usage
Industrial

Voltage
24V DC, 110V AC, 230V AC (as required)

Sealing
Nitrile rubber (NBR) or Viton

Type
3-way valve

Power
Solenoid actuated

Size
Different Available

Pressure
0 to 10 bar

Media
Air, inert gases

Port Size
1/8 inch, 1/4 inch

Color
Grey

Temperature
-10°C to +70°C

Disc
Stainless Steel

Pin
2 or 3 pin available

Manual Override
Yes, available

Mounting Position
Any, preferably upright

Response Time
<20 ms

Operating Life
Over 1 million cycles

Body Finish
Nickel plated (for brass) or natural (SS)

Flow Rate
Up to 900 l/min (based on port size)

Protection Class
IP65 with connector

Coil Insulation
Class F or H

3 Way Direct Acting Poppet Type Valve Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units Per Week

Delivery Time
7 Days

About 3 Way Direct Acting Poppet Type Valve

Valve Specifications

Type : 3 Way

Design : 3 Way Direct Acting Poppet Type

Port Size : In / Out / Exhaust - 1/4 BSP

Media : Compressed Air (Filtered & Lubricated)

working Pressure Range : 0-10 Bar

Orifice : 10mm

Ambient / Media Temperature : 5C - 60C

Materials of Construction : Aluminium, Nitrile, Brass, Polymer

Coil Specification

Coil Features : High Reliability Unaffected by Voltage Surges. Easy coil changes coil lockable in 4X90 position or freely movable in between as require.

Coil Housing : Epoxy square coil, Metallic round enclosure, IP-67 Flameproof enclosure, IP-68 Weatherproof enclosure.

Precision and Versatility for Industrial Automation

Designed for use in pneumatic systems and automated processes, this 3-way direct acting poppet valve combines precision control with a robust, compact structure. With flexible mounting positions and a choice of port sizes, it suits a wide range of industrial settings, ensuring adaptability and efficient performance.

Reliable Performance and Durable Construction

Engineered for longevity, the valve boasts over a million operating cycles, supported by Class F or H coil insulation and premium sealing materials like NBR or Viton. The body, made from nickel-plated brass or natural stainless steel, offers corrosion resistance and a lasting finish.

FAQ's of 3 Way Direct Acting Poppet Type Valve:

Q: How does the 3 Way Direct Acting Poppet Type Valve operate?

A: The valve utilizes a solenoid actuator to shift the internal poppet, directly controlling the flow between three ports for precise media direction in automation and pneumatic systems. Its direct acting mechanism ensures fast response times under 20 milliseconds.

Q: What media can this valve be used with?

A: This valve is designed for air and inert gases, making it suitable for a variety of general industrial automation and pneumatic applications where non-corrosive gases are present.

Q: When should I use the manual override function?

A: The manual override enables you to operate the valve manually during maintenance, testing, or in case of an electrical failure, without needing to disconnect power.

Q: Where is the ideal mounting position for this valve?

A: While the valve can be mounted in any position, an upright orientation is preferred to ensure optimal performance and longevity of internal components.

Q: What are the benefits of the IP65 protection class and coil insulation?

A: IP65 classification guards the valve against dust and water ingress, making it suitable for challenging industrial environments. The Class F or H coil insulation provides enhanced resistance to heat, supporting robust and long-term operation.

Q: How do I select the correct voltage and port size?

A: Choose between 24V DC, 110V AC, or 230V AC for electrical compatibility, and select either 1/8 inch or 1/4 inch port sizes based on your required flow rate and system specifications.

Q: What advantages does the poppet type valve structure offer in pneumatic applications?

A: The poppet design ensures low leakage, swift actuation, and reliable sealing, contributing to precise, efficient, and low-maintenance industrial automation processes.
