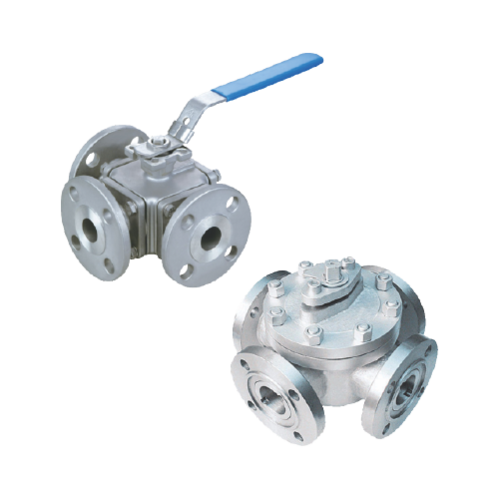

FlowBiz High-Performance Multi-Port Ball Valves Multi-Directional Flow Management

Welcome to the engineering authority for fluid diversion, multi-path process routing, and automated mixing systems. Operating advanced multi-axis CNC machining complexes, precision spherical-lapping cells, and certified pressure-integrity inspection lines, FlowBiz Exports specializes in manufacturing premium-grade 3-Way and 4-Way Multi-Port Ball Valves.

Engineered to replace complex manifolds that require multiple inline isolation components, our multi-port series handles 2-way, 3-way, and 4-way flow control within a single compact body casing. By allowing plants to mix, divert, or isolate fluid streams using a single quarter-turn mechanism, these valves eliminate the need for extra shutoff valves and redundant piping, lowering procurement costs and reducing leakage risks across global processing networks.

Technical Specifications & Compliance Parameters

Every FlowBiz production lot undergoes 100% rigorous high-pressure hydrostatic testing, pneumatic seat containment verification, and multi-port flow-path torque calibration before shipment.

Kinematics & Multi-Directional Flow Geometries

Multi-port valves utilize specialized internal drilling paths through the solid ball core to achieve distinct flow patterns:

1. 3-Way L-Port (Diverting Geometry)

The L-port ball features two internal pathways meeting at a 90-degree angle. This configuration is primarily used to divert a single incoming fluid stream between two separate outlet ports. Turning the stem 90 degrees cleanly shifts the flow from Port A to Port B, providing a reliable changeover mechanism.

2. 3-Way T-Port (Mixing & Blend Geometry)

The T-port core features a T-shaped internal intersection. This versatile design allows for multiple configurations: it can connect all three ports together to mix two different fluids into a single stream, allow straight-through flow while bypassing a third port, or completely isolate the lines.

3. 4-Way Multi-Channel Geometry (Double L-Port / T-Port)

For complex automated networks, 4-way configurations route fluid across four orthogonal ports. This setup is ideal for reversing loop systems, sampling manifolds, or cycling media between alternating heat exchangers.

 3-WAY L-PORT (DIVERTING PATHWAY) 3-WAY T-PORT (MIXING/BYPASS PATHWAY) PORT 2 (CLOSED / OPEN ON ROTATION) PORT 2 (CONTINUOUS MIX / BYPASS) \/ \/ +-------++-------+ +-------++-------+ | __ | | __ __ | ========> | | | | ========> | | | | | | ========> Inlet Flow | |==+ / | Inlet Flow | |==+==+==+ | Blended Outflow (Port 1) | |____________ | (Port 1) | |________| | (Port 3) +-------++-------+ +-------++-------+ \/ \/ PORT 3 (ACTIVE ACTIVE OUTFLOW) PORT 3 (ACTIVE BLENDED MIX)

Flexible End Connections & Part Interchangeability

To simplify plant installation, FlowBiz Multi-port valves offer modular, interchangeable end rings that allow plants to mix different connection styles on a single valve body:

• Standard Port Bodies: Available with NPT tapered threaded ends or sanitary Quick Clamp fittings, making them well-suited for modular processing skids and clean-utility configurations.

• Full Port Block Bodies: Supplied with NPT threaded, Quick Clamp, socket weld, butt weld, or flanged connections to handle high-pressure process headers.

• Parts Interchangeability: Internal componentsincluding soft seats, stem seals, packing rings, and end capsare fully standardized and interchangeable between models. This reduces the spare parts inventory your maintenance team needs to manage.

Core Engineering Features & Plant Benefits

• Premium Stainless Steel Construction: Forged from high-grade stainless steel alloys, our valves provide exceptional corrosion resistance, excellent oxidation protection, and high structural strength in demanding industrial environments.

• Simplified Pipeline Engineering: Bundling multi-directional control and tight shut-off capacity into a single valve reduces the number of flanges, fittings, and welds required, creating a safer pipeline system with fewer potential leak paths.

• Reduced Installation & Maintenance Costs: Eliminating extra piping supports and reducing the number of individual inline components lowers setup costs and simplifies routine maintenance schedules.

• ISO 5211 Actuation Interface: Features an integrated mounting pad for easy pairing with manual handles, pneumatic actuators, or electric multi-turn motor drives for seamless SCADA integration.

Strategic Industrial Application Sectors

• Chemical Processing & Distribution: Routing aggressive acids, solvents, organic reagents, and processing media across complex blending headers.

• Water & Wastewater Treatment Infrastructure: Managing multi-tank filtration backwash runs, chemical dosing loops, and raw water distribution.

• HVAC & Industrial Thermal Management: Controlling bypass circuits on cooling towers, glycol chiller routing, and boiler loop management.

• Air, Gas, & Volatile Fluid Utilities: Regulating pneumatic systems, multi-cylinder gas manifolds, and vapor-recovery lines.

Frequently Asked Questions (FAQ)

Q: How are 3 and 4 Way Multiport Ball Valves used in industrial applications?

A: These valves are primarily used to direct, split, or mix fluid paths within a single valve body. Instead of using multiple individual isolation valves to route flow to different tanks or processing equipment, operators use a single multi-port valve to quickly switch between flow channels, simplifying the system and increasing process efficiency.

Q: What is the benefit of using stainless steel for these ball valves?

A: Stainless steel provides excellent structural strength, high pressure containment capabilities, and resistance to chemical corrosion and pitting. This makes the valves compatible with a wide variety of process media, prevents fluid contamination, and extends the valve's working life in harsh industrial environments.

Q: Where can these multiport ball valves be installed?

A: They can be installed across any process piping system requiring automated or manual fluid diversion. Common installations include water treatment manifolds, chemical processing skids, paint kitchens, oil distribution headers, and commercial HVAC building loops throughout India and global processing markets.

Q: What is the maximum and minimum operating temperature for these valves?

A: Our valves are engineered to operate reliably across a broad thermal range from -40F up to 392F. This performance enables the valves to handle low-temperature cryogenic gas processing as well as high-temperature utility steam loops without seat distortion.

Q: What is the process for ordering these valves from your company?

A: Sourcing from our Kheda manufacturing facility is simple. Reach out to our technical sales team via our website or direct email lines with your project parametersincluding nominal size, required port path configuration (L-port or T-port), pressure class, and process fluid. Our team will verify your specifications, provide a competitive quote, and coordinate secure delivery directly to your site.

Q: How does the flanged end design benefit installation?

A: Integrated flanged end configurations provide a robust, leak-proof mechanical joint that handles intense piping vibration and thermal expansion well. Flanged connections are also easy to unbolt, which simplifies installation and makes line maintenance or replacement straightforward.

Q: When should a 3 or 4 way design be selected?

A: Specify a 3-way configuration when your system requires a single inlet stream to be diverted between two separate destination lines (L-port) or when blending two incoming fluids into a single outfeed line (T-port). Choose a 4-way configuration when your system needs more complex, multi-channel loop reversals or integrated fluid sampling paths.

Are you updating a chemical processing skid that requires an ASME Class 150 flanged 3-way L-port diverting valve, or configuring an industrial water loop that demands a 4-way full-port block valve? Contact our technical sales division in Kheda today to secure a factory-direct quote, or ask a single relevant question regarding your specific flow pattern or seat material parameters below to guide the conversation forward.
