High-Performance Low-Torque Butterfly Valves FlowBiz Vapi

Welcome to FlowBiz Export Private Limited, a premier global manufacturing authority for high-efficiency fluid modulation, critical pipeline isolation, and heavy-duty process control automation. Operating state-of-the-art metallurgical foundries, precision CNC machining grids, and high-pressure compliance laboratories in Vapi, Gujarat, we are Indias leading manufacturer, supplier, and global exporter of industrial Low-Torque High-Performance Butterfly Valves.

Our advanced quarter-turn control assets are engineered with proprietary sealing geometry to serve thousands of heavy-industrial installations. We seamlessly fulfill critical infrastructure projects across Indias primary industrial hubsincluding Vapi, Valsad, Ahmedabad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Pune, Thane, and Chennaibacked by fast-tracked maritime logistics for rapid international project export.

Technical Specifications & Pipeline Parameters

FlowBiz High-Performance Butterfly Valves are engineered to provide exceptional flow control characteristics, functioning as both an active modulating trim and a bubble-tight isolation barrier. By combining specialized disc geometry with premium metallurgy, these valves deliver zero-friction operation and linear control accuracy across a wide range of processing media.

Core Engineering Features & Design Advantages

1. Zero-Friction Sealing Matrix for Low Operating Torque

Standard concentric butterfly valves subject their rubber seats to continuous scraping friction along the entire 90 disc travel path, which accelerates seal wear and increases manual operating torque. The FlowBiz design eliminates this friction by ensuring zero mechanical contact between the disc and the rubber seat during execution. The disc only makes contact at the final point of closure against a tapered projection seat ring, achieving a bubble-tight seal with near-zero frictional resistance.

2. Streamlined, Low-Torque Modulation Across All Media

Because the disc lifts cleanly clear of the seating plane instantly upon opening, there is no localized rubbing or torque spikes during operation. The operating torque remains consistently low and predictable throughout the entire stroke, regardless of whether the pipeline carries high-velocity air, raw utility water, or viscous oils. This allows plant engineers to specify smaller, more cost-effective actuator packages.

3. Premium Stainless Steel Construction with Protective Finish

Our valve bodies and internal discs are investment-cast from high-grade ASTM A351 CF8M (SS316) Stainless Steel, providing excellent structural mass and resistance to internal chemical attack or localized pitting. The exterior casing is finished with a high-durability industrial blue coating, shielding the underlying metallurgy from ambient humidity and chemical vapors while providing an easy visual reference within complex plant headers.

4. Advanced High-Torque Hydraulic Automation

To support rapid sequencing and responsive automated control within heavy processing grids, our butterfly valves are engineered to integrate with high-precision hydraulic actuators. Hydraulic actuation utilizes incompressible fluid to deliver smooth, high-torque linear-to-rotational force. This eliminates the chattering or sticking often found in pneumatic lines, ensuring stable fluid modulation in medium-pressure systems.

Strategic Cross-Industry Applications

FlowBiz high-performance low-torque butterfly valves are specified across demanding processing networks:

• Industrial Automated Process Lines: Precise, high-frequency throttling and modulation of compressed utility air, nitrogen gas headers, and process fluids.

• Water Treatment & Facility Management: High-capacity municipal water distribution, industrial reverse osmosis networks, and wastewater filtration loops.

• Petrochemical Refining & Oil Transport: Secondary process lines, low-viscosity hydrocarbon fuel handling, and chemical storage tank utilities.

• Manufacturing & Power Utilities: Managing auxiliary cooling water lines, heat exchanger feeds, and plant utility pipelines.

Frequently Asked Questions (FAQ)

Q: Why do industrial high-performance butterfly valves start at a 2-inch nominal size rather than smaller options?

A: Small-bore pipelines (below 2 inches) feature very narrow internal cross-sectional areas. Because a butterfly valve's disc sits directly inside the middle of the fluid stream even when fully open, putting a disc and heavy-duty shaft assembly inside a micro-bore line would restrict the fluid path and cause massive head loss. For pipelines below 2 inches (50mm), FlowBiz Full-Bore Forged Steel Ball Valves or Globe Valves must be selected to preserve proper fluid velocity and pressure profiles.

Q: How do engineers select between Wafer, Lug, and Butt Weld end connections?

A: Selection depends entirely on your pipeline layout, maintenance requirements, and leak-tightness parameters:

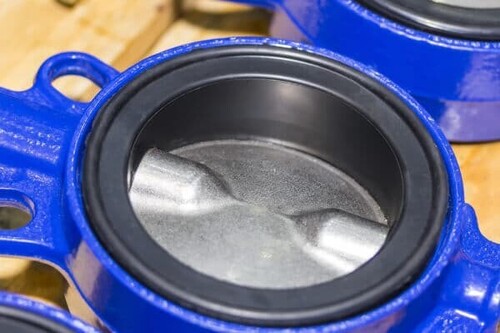

• Wafer Profile: The slimmest, most lightweight design. It is held in place clamped between two pipeline flanges using long all-thread bolts that span the entire width of the valve body, making it ideal for compact spaces.

• Lug Profile: Incorporates independent threaded metal casings matching the bolt pattern of the pipe flange. This allows for dead-end service, meaning plant technicians can isolate and disconnect downstream piping for maintenance while keeping the upstream side fully pressurized.

• Butt Weld Profile: Involves welding the valve body directly into the pipeline. This configuration eliminates gaskets and flanges entirely, providing a permanent, leak-proof joint that is ideal for high-vibration systems or critical applications where fugitive emissions must be prevented.

Q: What is the main benefit of a hydraulic actuator over a pneumatic actuator for flow modulation?

A: Pneumatic actuators rely on compressed air, which is highly compressible. When fluid velocities change inside a pipeline, the changing dynamic forces against the valve disc can cause a pneumatic actuator to compress slightly, causing position hunting or chattering. Hydraulic Actuators utilize incompressible hydraulic oil, providing absolute positional rigidity and massive, smooth holding torque. This allows the valve to maintain its exact commanded trim angle under turbulent flow conditions, resulting in much more precise flow regulation.

Q: Why does the tapered projection seat design result in a significantly longer service life?

A: In standard butterfly valves, the disc rubs and compresses hard against the rubber seat throughout its entire rotational path, causing the elastomer to score, tear, and experience compression set within a few hundred cycles. The FlowBiz tapered projection seat architecture ensures that the disc moves through free space without touching the seal during rotation. It only contacts the seat at the final degrees of closure, compressing uniformly against the angled seat projection. This minimizes friction-induced tearing and drastically extends the service life of the valve.

Q: How can project procurement managers and engineers in Vapi coordinate factory-direct quotes?

A: Sourcing can be initiated by contacting our dedicated corporate sales division in Vapi, Gujarat. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise nominal pipeline diameters (2" to 12"), required end connection layouts, fluid velocity bounds, chemical properties of the process media, and automated actuation needsto deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you designing an automated cooling utility loop or upgrading a high-velocity gas distribution manifold? Contact our Vapi sales and engineering office today to receive complete technical data sheets, certified dimensional layouts, and an itemized commercial proposal.
