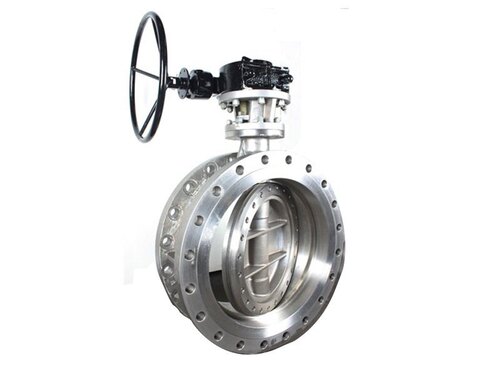

API 609 High-Performance Triple-Offset Butterfly Valves FlowBiz Gandhinagar

Welcome to FlowBiz Export Private Limited, a certified global engineering authority for high-integrity zero-leakage isolation, extreme-temperature thermal utilities, and friction-free rotary throttling infrastructure. Operating advanced investment casting foundries, precision multi-axis CNC machining complexes, and API-compliant testing grids in Gandhinagar and Ahmedabad, Gujarat, we stand as India's premier manufacturer, supplier, and global B2B exporter of industrial Stainless Steel Triple-Offset Butterfly Valves (TOVs).

Our triple-offset rotary assets are engineered explicitly to overcome the mechanical wear, rapid seat degradation, and high operating torques associated with conventional concentric or double-eccentric rubber-lined butterfly valves. From our primary corporate manufacturing base in Gujarat, we seamlessly support critical processing networks across India's key industrial hubsincluding Rajkot, Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur, Indore, Dewas, Bhopal, Chennai, Coimbatore, and Salembacked by streamlined maritime routes for fast-tracked global project export.

Technical Specifications & Compliance Parameters

FlowBiz Triple-Offset Butterfly Valves utilize an advanced geometry where the valve shaft and disc seating components are structurally shifted away from the centerline to completely eliminate friction during operation, providing a safe and reliable choice for medium-pressure water systems, chemical lines, and high-consequence process lines.

Understanding Triple-Offset Kinematic Geometry

The defining mechanical advantage of the FlowBiz design is its advanced Triple-Offset Geometry, which completely changes how the disc interacts with the seat:

• Offset 1: The shaft is displaced behind the sealing plane of the valve seat, allowing continuous 360-degree rotation of the sealing face.

• Offset 2: The centerline of the shaft is shifted laterally away from the vertical centerline of the pipe bore, creating a cam-like opening and closing path.

• Offset 3: The profile axis of the body seating cone is tilted away from the pipe bore centerline to create a right-angled conical geometry.

The Mechanical Result: This advanced configuration ensures that the body and disc come into contact only at the final shut-off position. By acting like a wedge rather than a scraping surface, this profile eliminates wear and tear due to interference, reduces operational torque requirements, prevents seat binding, and significantly extends the valve's working life.

Core Engineering Features & Design Advantages

1. Robust Stainless Steel Construction with Silver Finish

To ensure reliable performance in harsh water-based industrial environments, our valve pressure boundaries are cast from premium high-grade stainless steel (CF8M / SS316L). The exterior features a specialized, hard-wearing silver finish that reinforces the valve's natural corrosion resistance against atmospheric oxidation, chemical splashing, and high humidity, keeping regular external plant maintenance costs very low.

2. Multi-Layer Laminated Bubble-Tight Sealing

Unlike traditional butterfly valves that rely on rubber liners that swell, tear, or degrade under shifting pressures, FlowBiz TOVs feature a resilient metal-to-metal laminated seat composed of alternating layers of high-grade stainless steel and flexible graphitic fillers. This layout achieves a true bubble-tight shut-off that stands up to severe temperature fluctuations, vacuum conditions, and pressure shocks.

3. User-Friendly Manual Control System

Equipped with an ergonomic manual hand lever or an enclosed heavy-duty worm gearbox, our valves offer precise flow regulation and hands-on control. This independent manual operation is ideal for locations where automation is unnecessary or impractical, ensuring highly dependable flow adjustment while keeping initial hardware purchasing costs low.

4. High Installation Versatility Across Connecting Systems

Our production line accommodates multiple connection typesincluding wafer, lug, and butt-weld endsenabling easy integration into existing or brand-new piping systems. Whether you are upgrading an older facility or designing a new process plant, this structural versatility ensures straightforward mechanical alignment with standard pipeline systems.

Strategic Cross-Industry Applications

FlowBiz high-performance triple-offset butterfly valves are specified across primary process lines:

• Industrial Water Treatment & Distribution: Reverse osmosis (RO) desalination loops, high-capacity demineralized water manifolds, cooling water systems, and filtration networks.

• Chemical Processing Facilities: Bulk transport loops for aggressive acids, alkaline neutralization lines, volatile organic solvent systems, and general chemical utility lines.

• Refinery Utility & Tank Farm Isolation: High-velocity utility water distribution lines, cooling tower return mains, hydrocarbon transfer lines, and emergency containment gates.

• Power Generation Thermal Loops: Condenser cooling water circuits, auxiliary low-pressure steam lines, and plant utility water systems requiring medium-pressure control.

Frequently Asked Questions (FAQ)

Q: Why is a triple-offset butterfly valve preferred over a gate or ball valve for large pipelines?

A: Large gate valves are heavy, require multiple turns of a rising handwheel, and take up significant space. Large-bore ball valves have heavy bodies that require expensive structural supports and generate high operating torques. A Triple-Offset Butterfly Valve delivers a lightweight, compact design with a short face-to-face dimension that significantly reduces pipeline installation costs while providing the same bubble-tight shut-off and precise flow control as a ball valve.

Q: What is the correct field installation sequence for different connection types (Wafer vs. Lug vs. Butt-Weld)?

A: Installation methods depend on the specific end connection chosen for your system layout:

• Wafer Styles: Centered accurately between pipeline flanges, with long structural bolts running through both flanges to clamp the valve body tightly in place.

• Lug Styles: Features independent threaded lugs around the body casing, allowing it to be bolted directly to individual pipeline flanges for safe end-of-line isolation service.

• Butt-Weld Styles: Welded directly into the pipeline matrix to create a permanent, leak-proof mechanical joint that removes flanges as a potential external leak path.

Q: How does the triple-offset design lower operational torque and extend product life?

A: In standard rubber-lined concentric butterfly valves, the disc scrapes against the elastomer seat across its entire 90-degree movement, creating high friction, high operating torque, and rapid seat tearing. In the FlowBiz Triple-Offset Design, the cam action allows the disc to lift immediately off the seat at the moment of opening. Because the disc slides into the seat without friction or interference, operating torque remains low and seat wear is minimized, maximizing the valve's operational service life.

Q: Can these manual butterfly valves be converted to automated control loops later?

A: Yes. Every valve is manufactured with an industry-standard ISO 5211 topworks mounting pad. If your industrial plant transitions to automated control or requires remote emergency shut-off, your maintenance team can easily unbolt the manual handwheel or gearbox and mount a pneumatic double-acting cylinder, hydraulic piston, or an electric multi-turn actuator directly onto the existing shaft without removing the valve body from the active pipeline.

Q: How can project procurement managers and engineers coordinate factory-direct quotes?

A: Sourcing can be initiated by contacting our corporate sales division and engineering headquarters in Gandhinagar or Ahmedabad, Gujarat. Our technical staff will guide you through a comprehensive consultationassessing your precise nominal sizing requirements (3" to 48"), preferred end connection type (Wafer, Lug, Flanged, or Butt-Weld), body material chemistry, explicit water/chemical media parameters, and target operating temperaturesto deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a high-capacity water treatment plant manifold or upgrading a critical industrial facility cooling water circuit? Contact our Gandhinagar sales and engineering office today to guide your project forward, or ask a specific question regarding your pipeline alignment below.
