API 603 / MSS SP-81 Industrial Knife Edge Gate Valves FlowBiz Vadodara

Welcome to FlowBiz Export Private Limited, a globally recognized engineering authority for full-bore slurry containment, abrasive solid handling, and high-density material isolation networks. Operating high-capacity automated foundries, precision multi-axis CNC machining centers, and certified hydrostatic testing facilities in Vadodara and Ahmedabad, Gujarat, we stand as India's premier manufacturer, supplier, and global B2B exporter of industrial Knife Edge Gate Valves.

Our high-performance knife edge gate valves are engineered explicitly to overcome the limitations of standard isolation valves when handling thick slurries, dry powders, or viscous media. While conventional valves trap solids within their internal body pockets, our design features a sharpened stainless steel gate that slices cleanly through packed particulates to establish a tight metal-to-metal or resilient seal. From our major production headquarters in Vadodara, we seamlessly support critical processing networks across India's key industrial corridorsincluding Ahmedabad, Rajkot, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur, Indore, Dewas, Bhopal, Chennai, Coimbatore, and Salembacked by streamlined logistics for direct international project export.

Technical Specifications & Compliance Parameters

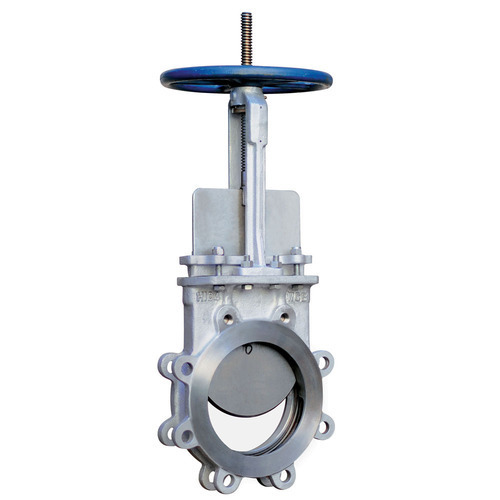

FlowBiz Knife Edge Gate Valves utilize a slim, space-saving linear-motion design. As the operator turns the handwheel, the bevel-edged gate moves downward perpendicular to the flow stream. The gate slices through dense slurries or solids and nests tightly against the seat. When opened, the gate retracts completely out of the wetted path, providing a straight-through unobstructed passageway that minimizes flow resistance and pressure drop.

Core Engineering Features & Design Advantages

1. Robust Metallurgy and Precision-Ground Gate Blade

To ensure unmatched construction and performance under demanding industrial loads, our valve casings are cast from premium high-grade cast iron, carbon steel, or stainless steel. The internal gate blade is crafted from high-tensile stainless steel, precision-ground and polished on both faces to prevent scaling and reduce packing friction. The blade's bottom edge is machined into a sharp knife profile, allowing it to slice through packed solids, fly ash, and fibrous slurries without jamming.

2. Space-Saving Wafer and Lug Body Styles

Traditional gate valves feature wide, heavy body structures that demand significant pipeline space and require expensive pipe supports. FlowBiz knife edge gate valves feature a slim, face-to-face profile available in wafer or lug body styles. This compact design allows the valve to slide easily into tight pipeline arrays between standard flanges. This minimizes the total weight load on your piping infrastructure and simplifies ongoing field maintenance.

3. Polished Silver Surface for Enhanced Durability

Industrial plants often expose external hardware to aggressive atmospheric moisture, chemical fumes, and outdoor weathering. Our valves are finished with a specialized, high-durability polished silver surface that provides enhanced resistance to rust and corrosion. This industrial finish keeps the valve operating smoothly, protects the underlying metal substrate, and extends the asset's overall service life in harsh environments.

4. Smooth Manual Control and Secure Flange Connection

Equipped with an ergonomic manual handwheel, our valves provide straightforward and user-friendly operation. Turning the handwheel raises or lowers the gate blade with minimal effort. This independent manual mechanism provides total operational security without relying on external electrical lines or compressed air grids. With robust flange-type connections, these valves provide a secure, leak-proof fitting for pipeline installations spanning from 2 to 48 inches.

Strategic High-Density Slurry Applications

FlowBiz high-performance knife edge gate valves are specified across primary severe-service pipelines:

• Fly Ash Slurry Pump Isolation: Handling and isolating high-velocity fly ash slurries downstream of coal-fired boiler units and power plant discharge lines.

• Dry Fly Ash Discharge Mains: Managing dry fly ash collection headers, storage silo bottom drops, and electrostatic precipitator (ESP) hopper dumps.

• River Water De-Sanding Circuits: Sectional isolation within raw water intake channels, sand separation loops, and municipal filtration manifolds.

• Bottom Ash De-Watering Circuits: Controlling aggressive bottom ash waste streams, de-watering tank return lines, and mining tailing pipelines.

Frequently Asked Questions (FAQ)

Q: Why should an engineer select a knife edge gate valve over a standard wedge gate valve?

A: A standard cast iron wedge gate valve features an internal bottom pocket recess where the gate seats. When handling slurries, ash, or powders, these solid particles drop into the bottom pocket and compact tightly. This prevents the wedge from closing fully, which damages the seats and causes permanent inline leaks. A Knife Edge Gate Valve features a pocket-free, straight-through bore. Its sharpened stainless steel blade slices directly through suspended solids and cleans the seat during closure, making it the ideal choice for projects transporting solids or viscous liquids.

Q: What is the correct field installation sequence for a knife edge gate valve?

A: These valves are typically installed using flange-type connections, which ensure a secure and leak-proof assembly with the pipeline. Field crews must clean the matching pipeline flanges to remove rust, scale, and old gasket remnants. Center the wafer or lugged valve body accurately between the pipe ends, making sure that the flow arrow on the valve body matches the pipeline flow direction. Place high-quality, application-rated gaskets between the sealing faces, insert standard industrial bolts, and tighten them progressively using a torque wrench in an alternating cross-star pattern to distribute clamping forces evenly.

Q: What advantages does the specialized polished silver surface finish provide?

A: In heavy processing plants and municipal facilities, ambient moisture and atmospheric chemicals can quickly cause standard raw cast iron to rust and pit. The specialized polished silver surface enhances the valve's resistance to rust and environmental corrosion, maintaining both its structural integrity and neat appearance over time. This smooth finish prevents external material buildup, allows the upper stem components to cycle smoothly, and extends the valve's working life in challenging environments.

Q: Can these manual knife edge gate valves be automated with actuators later?

A: Yes. While our standard configurations feature low-torque manual handwheels for straightforward operation, the topworks feature a standardized, modular yoke assembly. If your industrial facility upgrades to automated control loops or requires remote emergency isolation, your maintenance team can easily unbolt the manual handwheel mechanism and mount a pneumatic double-acting cylinder, hydraulic actuator, or an electric multi-turn actuator directly onto the existing yoke without pulling the valve body out of the pipeline.

Q: How can project procurement managers and engineers coordinate a direct factory quote?

A: Sourcing can be initiated by contacting our corporate sales division and engineering headquarters in Vadodara or Ahmedabad, Gujarat. Our technical application staff will guide you through a comprehensive consultationassessing your precise nominal sizing requirements (from 50 NB up to large-bore 600 NB arrays), target pressure classification (Class 150 or 300), preferred body metallurgy (Cast Iron vs. Stainless Steel), and explicit slurry or dry solid media propertiesto deliver a certified technical product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a high-velocity fly ash slurry pump loop or upgrading a municipal wastewater distribution header? Contact our Vadodara sales and engineering office today to guide your project forward, or ask a specific question regarding your pipeline alignment below.
