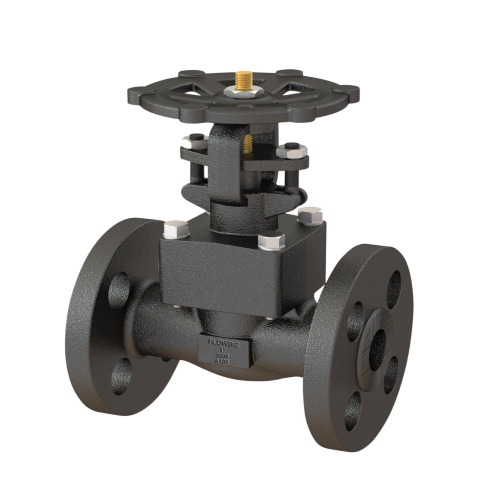

API 602 High-Pressure Forged Steel Gate Valves FlowBiz Rajkot

Welcome to FlowBiz Export Private Limited, a certified manufacturing authority for high-pressure fluid containment, severe-service thermal isolation, and critical pipeline infrastructure. Operating advanced precision forging presses, state-of-the-art CNC machining grids, and certified testing blocks in Rajkot and Ahmedabad, Gujarat, we are India's premier manufacturer, supplier, and global B2B exporter of industrial API 602 Forged Steel Gate Valves.

Our compact, forged linear-motion isolation valves are engineered specifically to manage high-temperature, high-pressure processing streams where cast valves cannot satisfy safety margins. From our primary production centers in Gujarat, we support critical infrastructure across India's key industrial zonesincluding Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur, Indore, Dewas, Bhopal, Chennai, Coimbatore, and Salembacked by fast-tracked global maritime logistics for direct project export worldwide.

Technical Specifications & Compliance Parameters

FlowBiz Forged Steel Gate Valves are designed to provide a tight, bidirectional barrier perpendicular to the fluid stream. The forging process eliminates internal porosity, gas pockets, and cooling voids common in standard castings, making these valves ideal for high-integrity steam, gas, and liquid lines.

Core Engineering Features & Design Advantages

1. High-Density Forged Structural Casing

Unlike cast steel valves that carry implicit risks of structural porosity or sand inclusions, our valve bodies are hammered into shape under massive mechanical forging presses. This process refines the internal grain structure of the metal, aligning the steel fibers to provide maximum yield strength and resistance to fatigue. This eliminates the risk of catastrophic shell cracking under high pressure, severe thermal shock, or intense pipeline vibrations.

2. High-Integrity Spiral-Wound Sealing Matrix

To prevent hazardous external leaks at the body-bonnet joint under high temperatures, FlowBiz installs a premium stainless steel spiral-wound gasket filled with pure graphite. High-pressure variations can also be configured with screwed and seal-welded body-bonnet joints or an engineered Y-pattern geometry for companion globe and check lines, ensuring a near-perfect flow path that dramatically reduces system turbulence and pressure drops.

3. Clear Choice Over Ball Valves for Trapping Stations

In high-pressure steam utility grids and steam trapping stations, condensate and steam flash lines experience continuous thermal expansion and internal scale movement. Standard soft-seated ball valves degrade rapidly in these conditions because their polymer seats soften and tear under steam temperatures. FlowBiz Forged Steel Gate Valves feature rugged, metal-to-metal seating trims that easily handle thermal cycles without losing sealing tension, providing long-term operational security.

4. Flanged End Connections for Secure Installation

For reliable pipeline integration, each valve can be supplied with robust ASME B16.5 flanged ends, socket weld ports, or threaded interfaces. The flanged connection distributes mechanical line stresses evenly across the joint, provides high structural alignment, and simplifies field maintenance, allowing technicians to unbolt and pull the valve for inspection or service without cutting the line.

Strategic High-Pressure Industrial Applications

FlowBiz high-performance forged steel gate valves are specified across primary isolation lines:

• High-Pressure Steam & Power Generation Utilities: Superheated steam lines, main boiler feed-water loops, steam trap isolation stations, and blowdown manifolds.

• Petrochemical & Refining Mainlines: High-temperature hydrocarbon processing, volatile organic chemical transfer, sour gas lines meeting NACE criteria, and catalyst loops.

• Chemical Processing Facilities: Safe containment, flow control, and absolute isolation of aggressive gases, thermal oils, water media, and chemical intermediates.

• Cryogenic Fluid Isolation (BS 6364 Compliant): Liquefied gas containment, liquid nitrogen handling lines, and sub-zero temperature chemical processing grids.

Frequently Asked Questions (FAQ)

Q: Why is a forged steel valve preferred over a cast steel valve for high-temperature steam lines?

A: Cast steel valves are produced by pouring molten metal into sand molds, which can trap micro-bubbles, gas pockets, or cooling cracks inside the valve walls. While acceptable for large-diameter, medium-pressure utilities, high-temperature steam (above 400C) combined with high pressure will seek out these hidden volumetric defects over time, causing structural erosion and hazardous casing leaks. A Forged Steel Valve is hammered into shape as a solid piece under intense mechanical pressure, producing a completely dense, uniform metal microstructure that safely handles severe pressures without failing.

Q: What is the correct installation sequence for a flanged forged steel gate valve?

A: Installation requires careful mechanical alignment to prevent piping stresses from distorting the valve body. The valve must be positioned cleanly between matching pipeline flanges, ensuring that the faces are parallel and clean. A high-quality, temperature-rated gasket must be centered between the sealing surfaces, and standard structural bolts inserted through the flange holes. Operators must tighten these bolts in a progressive, alternating cross-star pattern. This uniform torque profile ensures an even, leak-proof seal and protects the forged casing from uneven bending moments.

Q: When should an engineer choose a manual handwheel power source over an automated actuator?

A: Selecting a manual handwheel power source is ideal when the line does not require rapid, remote emergency shutdown (ESD) automation. Manual operation provides cost-effective, precise control for routine isolation in medium-to-high pressure systems without the high upfront costs, wiring complexity, and continuous maintenance needs associated with automated pneumatic or electric actuators.

Q: How does compliance with NACE MR-0175 affect the metallurgy of a forged gate valve?

A: Pipelines carrying unrefined hydrocarbons or "sour" natural gas contain high concentrations of hydrogen sulfide (H_2S) and moisture. This harsh combination triggers a destructive chemical phenomenon known as Sulfide Stress Cracking (SSC) in standard steels, leading to brittle failure under pressure. Valves manufactured to NACE MR-0175 / ISO 15156 standards utilize specialized, heat-treated forged steel alloys with controlled hardness limits (22 HRC), along with high-alloy internal trims that resist hydrogen embrittlement and preserve structural integrity in sour service environments.

Q: How can project procurement managers and engineers coordinate factory-direct quotes?

A: Sourcing can be initiated by contacting our corporate sales division in Rajkot or Ahmedabad, Gujarat. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise nominal sizing requirements (1/4" to 2"), preferred metallurgy (A105, F22, or F316L), target pressure classification (Class 800/1500/2500), explicit chemical or steam media parameters, and unique compliance needs (NACE or BS 6364 Cryogenics)to deliver a certified technical product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a high-pressure steam trap station or upgrading a sour-gas petrochemical manifold? Contact our Rajkot sales and engineering office today to receive complete technical data sheets, certified structural blueprints, and an itemized commercial proposal.
