Industrial PTFE-Lined Plug Valves: Critical Flow Control and Material Standards

In high-integrity fluid handling, process lines often transport highly aggressive chemicals, abrasive slurries, and toxic gases. Media such as hot concentrated acids, strong alkalis, chlorinated solvents, and reactive reagents can easily degrade standard unlined valves. This degradation causes severe pitting, structural thinning, and eventual pressure boundary failure, resulting in hazardous fugitive emissions and expensive plant shutdowns.

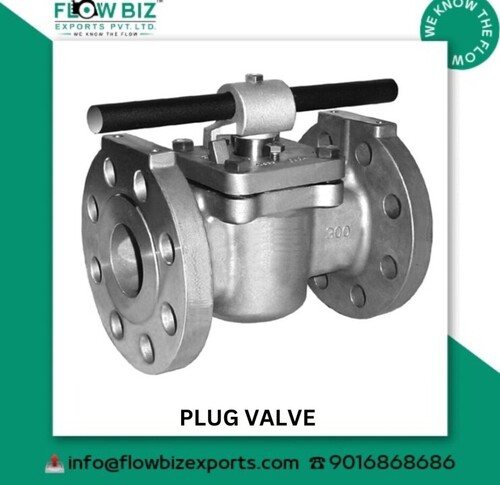

An industrial PTFE-Lined Plug Valve offers a heavy-duty, severe-service solution. Utilizing a quarter-turn tapered or cylindrical plug that rotates inside a fully encapsulated cavity, the design replaces high-wear mechanical seals with a solid, non-reactive barrier. By completely molding a thick layer of premium PTFE (Polytetrafluoroethylene) over all wetted internal surfaces and the plug itself, the underlying metal casting is completely isolated from the process stream. This configuration provides the mechanical strength of an external cast shell along with the complete chemical inertness of a fluoropolymer matrix.

                      Quarter-Turn Lined Plug Design


     [ Fluid Input ]     | PTFE-Lined Plug |     [ Fluid Output ]
     (Acids/Slurries)        | Rotates 0 to 90 |       (Bubble-Tight Shutoff)

                                        (Full Cavity Enclosure)

                           [ Molded PTFE Body Liner ]

FlowBiz Exports is an elite global fluid-handling brand and a leading PTFE Lined Plug Valve Manufacturer in India. We precision-engineer top-grade, high-integrity lined plug valves designed to deliver bubble-tight isolation, robust cavity sealing, and maintenance-free service across demanding domestic and international processing networks.

Technical Specifications & Compliance Parameters

FlowBiz PTFE-lined plug valves are cast, machined, and tested to meet strict international design and pressure containment codes, ensuring seamless integration into global industrial grids.

Core Engineering Matrix

Critical Engineering Features & Safety Benefits

1. Complete Chemical Protection & Slurry Management

The thick, molded PTFE lining serves as an impenetrable physical barrier that completely isolates aggressive chemicals from the primary valve body metal. Because PTFE features a non-reactive molecular structure, it prevents internal corrosion, pitting, and material erosion. Additionally, the straight-through, full-cavity design of the plug prevents solids from settling or packing, making it ideal for managing abrasive slurries and highly viscous fluids.

2. Full-Cavity Sealing & True Bubble-Tight Shutoff

Unlike ball or butterfly valves that rely on localized perimeter seats, a lined plug valve utilizes a large surface area interface between the plug face and the body liner. This full-cavity compression seal achieves a Class VI bubble-tight shutoff across both upstream and downstream paths. This robust configuration provides dependable leakproof isolation for hazardous or high-purity processing media.

3. High-Build Epoxy Exterior Shield

Industrial chemical facilities often expose equipment to high humidity, moisture, and aggressive atmospheric vapors. To prevent external rust and environmental wear, FlowBiz applies a durable epoxy powder coating to the valve shell. This protective layer prevents external body thinning and extends the valve's service life, especially in harsh offshore or outdoor environments.

Comprehensive Actuation & Automation Framework

The valve can be modified during fabrication to handle custom pressure differences and temperature variations. Its top bonnet layout easily integrates with a variety of manual and automated control systems to match your plant's architecture:

                      Actuation Control Flexibility



                      Top Bonnet Actuator Pad




 [ Manual Hand Lever ]    [ Pneumatic Actuator ]     [ Electric Motor Drive ]
 (Worm Gear Actuator)     (Double-Acting/Spring)     (24V, 110V, 220V AC/DC)

Strategic System & Industrial Applications

Our API 598-compliant lined plug valves provide highly reliable on-off or adjustment control at critical points across multiple industries:

• Chemical Processing Facilities: Regulating the flow of raw chemical feeds, aggressive industrial acids, caustics, and highly reactive fluids.

• Pharmaceutical & Bio-Tech Operations: Managing pure process runs and clean lines without risking metal leaching or batch contamination.

• Water Treatment & Desalination Infrastructure: Positioned along aggressive chemical dosing paths, neutralizing loops, and filtration backwash headers.

• Petrochemical & Power Plants: Controlling utility lines, sour water networks, and non-compressible hydrocarbon or chemical slurry loops.

Pan-India Supply Capabilities & Logistic Network

Operating advanced precision-machining hubs, FlowBiz maintains prompt product distribution, technical support, and comprehensive export trading services across major manufacturing zones in India:

• Gujarat Logistics: Vapi, Ahmedabad, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch.

• Maharashtra Corridors: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur.

• Central & Southern India Hubs: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and global export channels.

Frequently Asked Questions (FAQ)

Q: When should an engineer specify a PTFE-lined plug valve over a standard unlined metallic valve?

A: Standard unlined metallic valves degrade rapidly when exposed to aggressive media, which can cause high-purity batches to oxidize and ruin the process. A PTFE-Lined Plug Valve is recommended when handling highly corrosive liquids, gases, acids, alkalis, or abrasive slurries. The internal fluoropolymer liner completely protects the structural metal frame from chemical attack, ensuring long-term pipeline safety and reducing maintenance costs.

Q: What exact quality assurance steps are involved during factory leak testing?

A: To satisfy rigorous industrial safety audits, every completed valve undergoes a multi-stage testing process in strict compliance with API 598 and EN 12266 standards. This testing includes both high-pressure hydrostatic shell checks to confirm casting density and low-pressure pneumatic seat testing. These procedures verify that the plug-to-liner interface achieves a strict Class VI bubble-tight shutoff, guaranteeing zero-leakage performance under harsh field pressures.

Q: Where should these valves be installed within a chemical processing facility?

A: Lined plug valves can be installed at any point in a processing plant where absolute shutoff and control of corrosive or hazardous fluids are required. Thanks to their versatile connection optionsincluding flanged, screwed, and socket weld endsthey integrate directly into existing chemical feed headers, storage tank bottom drains, raw chemical transfer lines, or blending manifolds.

Q: How do you select the correct end connection style and actuator voltage for an automated line?

A: The selection depends on your plant's existing piping standards and control network:

• End Connections: Choose flanged, screwed, or socket weld ends that match your existing design standards, such as ANSI B16.5, DIN, or BS drilling patterns.

• Actuation Voltages: For automated systems, pneumatic actuators are ideal for high-cycle environments, while electric actuators can be configured with 24V, 110V, or 220V AC/DC options to match your facility's local electrical grid.
