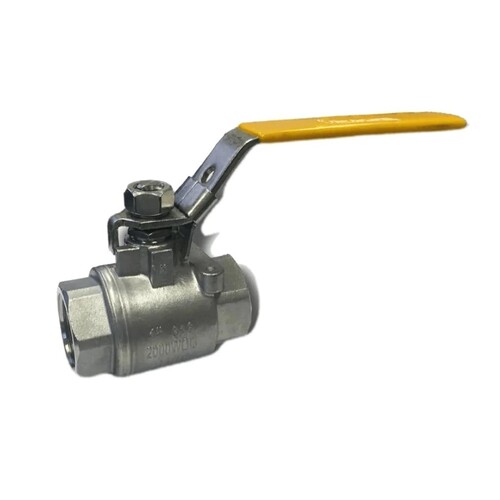

WOG-3000 High-Pressure Ball Valve Series | FlowBiz Valves

FlowBiz Valves is a premier, engineering-driven manufacturer, supplier, and global exporter of high-pressure WOG (Water, Oil, and Gas) ball valves in India. This specialized high-tensile series is low-torque engineered to excel in critical high-pressure applications where standard utility valves risk structural failure, seat deformation, or fluid weeping.

The WOG-3000 series is designed to handle demanding industrial processes across water treatment plants, petrochemical refining, gas distribution networks, and fuel transport systems. Every valve is crafted from solid, uniform metallurgies and fitted with resilient sealing components to ensure absolute pressure containment and code-compliant isolation.

From our core manufacturing bases, we maintain an active supply and logistical footprint across India, including:

• Gujarat: Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch.

• Maharashtra: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur.

• Pan-India Corridors: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and global export markets.

Technical Specifications & Compliance Standards

The WOG-3000 pressure boundary is precision-machined to ensure total mechanical uniformity and full compliance with strict international codes:

Key Mechanical Features & Structural Integrity

1. Advanced Live-Loaded Stem Seals

High-pressure lines are highly prone to sudden thermal shifts and mechanical pressure cycles, which can cause standard stem packing to loosen and create external leak paths. To prevent this, FlowBiz incorporates a live-loaded stem seal design. This arrangement utilizes a series of Belleville spring washers that constantly expand and contract to exert uniform, continuous compression down on the PTFE/RPTFE packing. This naturally self-adjusts for structural wear and maintains an uncompromised seal over thousands of operational cycles, completely eliminating manual maintenance downtime.

2. Full Port Geometry & Grounded Internals

The full port (full bore) layout means the internal diameter of the valve's ball port matches the connected pipeline diameter exactly. This allow fluids, gases, and vapors to pass through with completely negligible pressure drop (P) and zero fluid turbulence, significantly lowering pump energy costs. Additionally, the ball and stem feature integrated grounding devices to ensure absolute electrical continuity across the valve components, safely dissipating static charge build-up to eliminate spark risks in explosive gas atmospheres.

3. Sour Gas Immunity (NACE MR0175)

Essential for upstream oil & gas refining, extraction, and petrochemical tracking. The materials used in this high-pressure series undergo strict thermal and chemical validation to satisfy NACE MR0175 regulations. This ensures the valve's underlying metallurgy is completely immune to hydrogen sulfide (HS) induced stress corrosion cracking, keeping hazardous process media securely contained.

4. Specialized Actuation, Security, & Locking Handles

Manual operation is crisp and dependable via an ergonomic lever handle. Built to satisfy API 607 fire-safe handle rules, the valve features an optional integrated mechanical locking device to prevent unauthorized or accidental field operation in high-security zones. Alternatively, a spring-return lever (Deadman handle) can be specified for automatic mechanical closure upon operator release. For automated lines, integrated ISO mounting pads permit direct, bracketless mounting of pneumatic or electric actuators.

Premium Material Matrix & Surface Protection

To adapt the valve for specific chemical properties, FlowBiz offers targeted material selections:

Enclosure Metallurgies

• Stainless Steel (CF8 / CF8M / SS304 / SS316): Offers exceptional baseline mechanical yield strength and high immunity to aggressive chemical corrosion and pitting.

• Carbon Steel (WCB): Highly economical and robust for standard high-pressure hydrocarbons, oils, and gases. To defend the underlying metal from rust and atmospheric weathering, carbon steel casings receive an ultra-smooth, high-purity nickel plating or advanced epoxy powder coatings.

Replaceable Seating Trims

• Virgin PTFE: Provides absolute chemical inertness and low actuation friction for clean utilities.

• Reinforced PTFE (RPTFE): Fortified with carbon or glass fibers to provide high structural stability against cold-flowing under intense 3000 PSI pressure vectors.

• Severe-Service Metal Seats: Precision hard-faced metallic options integrated to handle abrasive suspended particulates or high-temperature steam lines.

Frequently Asked Questions (FAQs)

Q: What does the "WOG" acronym represent, and how do the pressure classes differ?

A: WOG stands for Water, Oil, and Gas, indicating that the valve is universally rated to handle non-corrosive liquid and gaseous media within its specific pressure threshold. The number prefix indicates the maximum safe cold working pressure rating in pounds per square inch (PSI). For example, a 400, 600, or 1000 WOG valve is ideal for standard industrial plumbing and light-duty utilities, whereas a WOG-3000 valve is a reinforced, high-tensile component engineered to safely contain intense industrial fluid forces up to 3000 PSI.

Q: Why is a blowout-proof stem mandatory for high-pressure installations?

A: In high-pressure piping networks, unexpected line surges or heavy fluid forces can place immense upward stress on the internal valve stem. A blowout-proof stem is designed with an internal, bottom-loading mechanical shoulder that prevents the stem from being ejected or popping out of the valve casing under pressure. This critical design feature ensures long-term operational integrity and protects on-site operators from catastrophic failure events.

Q: What connection types are available for the WOG-3000 series?

A: While standard stock units feature Threaded Ends (ASME B1.20.1 NPT) for fast, low-profile assembly in compact piping manifolds, FlowBiz also manufactures this high-pressure series with Extended Socket Weld (SW), Butt Weld (BW), or Flanged Ends (ANSI/DIN/BS) upon request. This allows project engineers to match the connection type directly to their facility's piping specifications.

Q: Why choose FlowBiz as your long-term WOG high-pressure valve partner in India?

A: FlowBiz Valves balances rigorous metallurgical engineering with strict global testing protocols like API 598. By hydrostatically proof-testing 100% of our production lines before dispatch packing, we ensure zero casting porosities and guarantee an absolute leak-proof seal in the field. Our ability to supply specialized NACE MR0175 compliant alloys, paired with live-loaded seal designs and flexible actuation top works, makes us a highly dependable supply chain partner for critical process infrastructure worldwide.
