FlowBiz Valves is a premier, engineering-driven manufacturer, supplier, and global exporter of high-performance Three-Piece Floating Ball Valves in India. Operating from our major industrial and logistical footprints in Gandhidham and Gandhinagar (Gujarat), we have established an uncompromised reputation for quality, technical innovation, and field reliability.

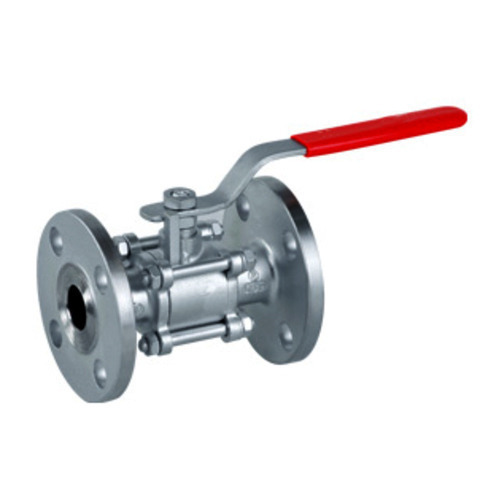

Our three-piece floating ball valves feature a highly functional modular design consisting of one central body capsule and two independent end connections. The end pieces are rigidly mounted directly to the pipeline using flanged, threaded, or welded interfaces. When routine servicing, internal cleaning, or seal replacements are required, technicians can completely slide out the central operational body section without disconnecting or unbolting the end pieces from the pipeline, completely preventing prolonged line shutdowns and lowering plant maintenance overhead.

We maintain high-volume distribution networks supplying major industrial corridors nationwide, including:

• Gujarat: Gandhidham, Kutch, Ahmedabad, Gandhinagar, Vapi, Valsad, Surat, Ankleshwar, Bharuch.

• Maharashtra: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur.

• Pan-India Footprint: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and global export markets.

Technical Specifications & Compliance Standards

Every three-piece valve is manufactured from fully certified raw alloys and checked against rigorous international safety metrics:

Strategic Engineering Features & Benefits

1. High-Performance Floating Ball Fluid Mechanics

In our three-piece design, the internal spherical ball is suspended by the stem and cradled between pre-compressed polymer or metal seats. When the valve is closed, the upstream fluid pressure pushes the ball slightly downstream against the opposite seat. This pressure-assisted sealing mechanism ensures an absolute bubble-tight seal under both positive high-pressure lines and negative vacuum systems, while naturally self-compensating for minor internal seat wear over time.

2. Redundant Double Seals & Leak-Proof Architecture

To eliminate fugitive emissions and protect against volatile fluid migration into the atmosphere, our engineering team incorporates a robust double-seal arrangement around the stem boundary. This dual-layer backup system provides ultimate structural safety in hazardous, toxic, or high-pressure environments, drastically minimizing unexpected plant downtime.

3. Integrated Anti-Blowout Stem & Fire-Safe Security

• Blowout-Proof Stem: Designed with an internal, bottom-entry mechanical shoulder. It is physically impossible for the stem to eject or pop out of the valve casing during sudden pipeline pressure surges or severe thermal expansions, maximizing operator safety.

• Fire-Safe Design (API 607): For volatile petrochemical, refinery, and fuel lines, an optional fire-safe configuration is available. If an accidental plant fire occurs and destroys the primary soft polymer seats, the ball shifts instantly to form a secure metal-to-metal contact against the casing, keeping hazardous media contained.

4. Direct Actuation & Seamless System Automation

While smaller pipelines can be operated via low-torque manual hand levers or heavy-duty mechanical gearboxes, our three-piece valves are built automation-ready. Featuring an integrated ISO 5211 top-mounting pad, the valves support direct, bracketless alignment with pneumatic cylinders or electric multi-turn actuators. This standardized layout drops installation labor costs, ensures exact stem concentricity, and permits seamless integration into centralized PLC or SCADA process loops.

Custom Sealing & Seating Configuration Matrix

Matching the internal valve seats with your exact process variables is crucial to prolonging the lifecycle of the valve trimmings:

• Virgin PTFE (Teflon): The premier choice for clean utility lines, chemical handling, and pharmaceutical loops due to its universal chemical inertness and low actuation torque.

• Reinforced PTFE (RPTFE): Fortified with glass or carbon fibers to provide elevated structural resistance against cold-flowing, mechanical deformation, and higher temperature thresholds.

• Metal-to-Metal Seating: Engineered with specialized hardfaced trims (such as Stellite or Tungsten Carbide) to survive severe-service applications involving abrasive slurries, particulates, or extreme high-temperature steam lines.

Frequently Asked Questions (FAQs)

Q: Why is a three-piece ball valve highly economical over time compared to a one-piece valve?

A: A single-piece valve features a fully welded or cast solid body. If the internal seats wear out or get scratched by pipeline scale, the entire valve must be cut or unbolted from the line and discarded. With a FlowBiz three-piece valve, you only need to loosen the body bolts, swing out the central capsule, and swap out the inexpensive internal seats and seals. The expensive end pieces remain fixed to your pipeline, drastically dropping long-term procurement and labor costs.

Q: When is it recommended to transition from a manual lever to a gear or pneumatic actuator?

A: * Mechanical Gearboxes: Strongly recommended for large-diameter lines or high-pressure loops where the physical torque required to break the valve open is too high for an operator to turn comfortably with a standard hand lever.

• Pneumatic / Electric Actuators: Indispensable for modern automated facilities requiring rapid cycling speeds, remote hands-free operation from a central control room, or automated emergency shutdown safety responses.

Q: Why is FlowBiz considered a top three-piece ball valve partner in Gandhidham and Gandhinagar?

A: FlowBiz Valves seamlessly combines world-class industrial metallurgy with strict compliance to international metrics like API 607 and ISO 9001. By rigorously hydrostatic-testing every single three-piece unit up to 1.5 times its rated pressure boundary before export packaging, we eliminate performance risks in the field. Our capability to deliver tailored sealing polymers, mixed end connections, and factory-direct pricing makes us a reliable partner for critical process installations across India and worldwide.
