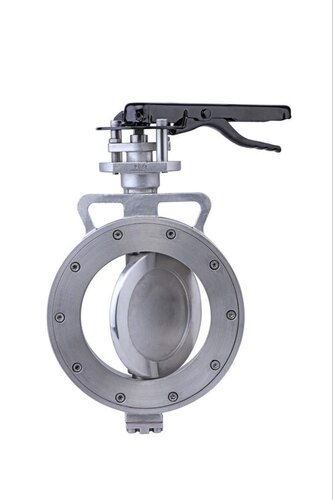

API 609 High-Performance Offset Disc Butterfly Valves FlowBiz Gandhinagar

Welcome to FlowBiz Export Private Limited, a certified global manufacturing authority for specialized thermal management valves, high-integrity fluid isolation, and heavy-duty industrial utility networks. Operating advanced investment casting lines, precision multi-axis CNC machining centers, and certified test bays in Gandhinagar and Ahmedabad, Gujarat, we stand as India's premier manufacturer, supplier, and global B2B exporter of industrial Stainless Steel Offset Disc Butterfly Valves.

Our high-performance offset disc assets are explicitly designed and manufactured to meet the rigorous demands of critical industrial processes and electrical infrastructure, such as high-capacity transformers. From our advanced production headquarters in Gujarat, we seamlessly support critical infrastructure and engineering projects across India's key industrial corridorsincluding Gandhinagar, Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur, Indore, Dewas, Bhopal, Chennai, Coimbatore, and Salembacked by fast-tracked global logistics for direct international project export.

Technical Specifications & Compliance Parameters

FlowBiz Offset Disc Butterfly Valves utilize an eccentric engineering design where the drive shaft is positioned behind the plane of the sealing surface and offset from the pipe centerline. This geometric displacement creates a cam-like action, causing the round disc to lift immediately off the seat upon opening. This design minimizes friction, drastically reduces seat wear, and ensures a secure seal capable of regulating high-temperature fluids.

Core Engineering Features & Design Advantages

1. High-Grade Stainless Steel Build for Thermal Endurance

Industrial equipment and high-capacity electrical transformers generate substantial heat and put intense thermal stress on inline fluid controls. Our offset disc butterfly valves are built from premium high-grade stainless steel, providing excellent resistance to heat, thermal expansion, and mechanical wear. The robust material composition guarantees long-term structural integrity and a dependable service life in high-temperature environments.

2. Eccentric Offset Sealing to Minimize Leakage

In conventional concentric butterfly valves, the disc continuously rubs against the seat during rotation, leading to premature scraping, tearing, and line leakage. The FlowBiz offset disc geometry ensures smooth fluid dynamics and allows the disc to seal firmly into place only at the final point of closure. This action eliminates continuous friction, reduces the torque required to cycle the valve, minimizes leakage, and extends the life of the internal sealing elements.

3. Optimal Flow Regulation with Low Pressure Loss

Featuring a precision-machined round shape and thin profile disc, this valve is optimized to deliver outstanding flow control. When fully opened, the aerodynamic disc allows process fluids or cooling oils to sweep cleanly through the line with a very small pressure loss profile. This high efficiency reduces load constraints on circulation pumps, maintaining smooth fluid dynamics and optimal system performance.

4. Dependable Manual Operation for Precise Monitoring

Equipped with an ergonomic manual notch lever or an enclosed worm gearbox, our valves offer user-friendly manual operation. A manual offset disc butterfly valve is best suited for installations where precise control and monitoring by an operator are required, especially when automated systems are not feasible or necessary. This independent manual configuration operates reliably without the need for external power grids, lowering facility maintenance costs.

Strategic Transformer & Industrial Applications

FlowBiz premium stainless steel offset disc butterfly valves are specified across demanding thermal networks:

• Electrical Transformer Cooling Lines: Regulating and isolating high-temperature transformer oils within radiator banks, conservator tanks, and oil filtration loops.

• Chemical Thermal Utilities: Managing low-to-medium pressure heat transfer fluids, industrial coolant lines, and hot wash water manifolds.

• Process Manufacturing Utilities: Sectional isolation in localized heat exchangers, cooling tower distribution lines, and industrial boiler feed grids.

• High-Temperature Fluid Logistics: Containment and flow adjustment within process lines subject to steep thermal shifts and environmental weathering.

Frequently Asked Questions (FAQ)

Q: Why is an offset disc butterfly valve preferred over a standard concentric valve for transformer oil loops?

A: Standard concentric butterfly valves use rubber liners that can rapidly degrade, harden, or swell when exposed to continuous high temperatures and chemical additives in transformer oils. A Stainless Steel Offset Disc Valve uses an eccentric cam-like movement that prevents the disc from rubbing the seat during travel, reducing wear. Combined with heat-resistant materials, it provides exceptional durability and a secure seal, which is essential for safely regulating high-temperature environments over long service lifespans.

Q: What is the correct process for field-installing an offset disc butterfly valve?

A: Proper mechanical alignment is necessary to prevent seat distortion and ensure a leak-proof fit. Technicians must align the round valve body cleanly between the matching pipeline flanges, ensuring the piping is straight and parallel. High-quality, heat-rated gaskets must be centered between the sealing faces, and standard industrial hardware bolts inserted. Operators must tighten these bolts progressively using a torque wrench in an alternating cross-star pattern to distribute clamping force evenly, achieving a reliable seal for medium-pressure applications.

Q: What are the distinct benefits of specifying a 9.0-inch butterfly valve for a system layout?

A: Pipeline layouts in processing plants and electrical substations require a careful balance between fluid velocity, spatial limitations, and flow volume. The specialized 9.0-inch size offers optimal flow control by providing a precise cross-sectional flow area that minimizes restriction during peak fluid cycles. Built with robust stainless steel construction, this size provides reliable performance, resists thermal stress, and fits cleanly into existing or new piping networks.

Q: How can an engineering team customize an offset disc butterfly valve for a specific project?

A: To order, simply contact us with your specific requirements regarding size, material, and application. Our engineering team collaborates with you to ensure the valve is customized for optimal performance tailored to your system's needs. We can adjust seat material chemistry (such as specified polymers or hard-faced metal-to-metal seating), provide custom flange bolt-hole configurations, or deliver specialized topworks extensions to match your technical process requirements perfectly.

Q: How can project procurement managers and engineers coordinate a direct factory quote?

A: Sourcing can be initiated by contacting our corporate sales division and engineering headquarters in Gandhinagar or Ahmedabad, Gujarat. As a trusted manufacturer, exporter, supplier, and trader, we provide technical expertise and a robust distribution network to support your installation. Our team will guide you through a comprehensive consultationassessing your explicit sizing criteria, operating temperature thresholds, preferred end connection styles, and fluid propertiesto deliver a certified technical product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a high-capacity electrical transformer cooling bank or upgrading a high-temperature industrial fluid loop? Contact our Gandhinagar sales and engineering office today to guide your project forward, or ask a specific question regarding your pipeline alignment below.
