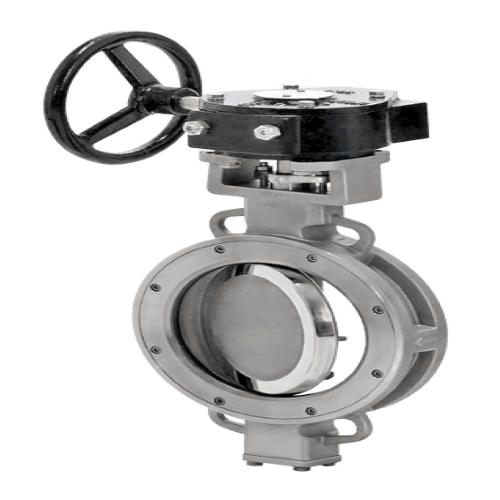

API 609 Category B Double-Offset High-Performance Butterfly Valves FlowBiz India

Welcome to FlowBiz Export Private Limited, a certified global engineering authority for high-pressure fluid containment, low-friction pipeline isolation, and heavy-duty process automation systems. Operating advanced high-tensile steel foundries, multi-axis CNC machining bays, and certified hydrostatic pressure testing labs in Rajkot and Ahmedabad, Gujarat, we are India's premier manufacturer, supplier, and global B2B exporter of heavy-duty Wafer-Type Double-Offset High-Performance Butterfly Valves.

Our specialized double eccentric eccentric-disc valves are engineered to overcome the severe seat-wear and pressure limitations of standard concentric rubber-lined valves. From our primary production complexes in Gujarat, we support critical heavy infrastructure networks across India's primary industrial corridorsincluding Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, Thane, Chennai, Coimbatore, and Salembacked by fast-tracked global maritime logistics for direct project export worldwide.

Technical Specifications & Compliance Parameters

FlowBiz Double-Offset Butterfly Valves utilize a high-precision eccentric geometry that creates a camming action during operation. As the valve opens, the disc lifts cleanly away from the sealing seat within its initial degrees of rotation, completely eliminating friction and rubbing across the remaining 90-degree stroke to maximize the service life of the internal sealing elements.

Core Engineering Features & Design Advantages

1. Advanced Double Eccentric Cam Action Sealing

Traditional zero-offset butterfly valves feature a disc that continuously rubs against a rubber liner throughout its entire 90-degree movement, leading to torn seats and inline leakage under high-cycle conditions. The FlowBiz high-performance design incorporates two distinct structural offsets:

• First Offset: The shaft axis is displaced behind the centerline of the sealing point of the disc to the seat.

• Second Offset: The shaft axis is eccentric to the horizontal centerline of the valve and pipeline.

  Together, these offsets create a true cam action that lifts the disc entirely out of contact with the seat immediately upon opening, minimizing friction, reducing operating torque, and extending the valve's lifespan.

2. High-Pressure Class 600 Structural Integrity

While standard concentric valves are limited to low-pressure utility lines, our double-offset valve bodies and discs are cast from high-tensile ASTM A216 WCB carbon steel or ASTM A351 CF8M stainless steel. This premium metallurgy enables our valves to handle severe industrial pressures up to ASME Class 600 configurations, providing safe pressure containment and reliable fluid isolation across demanding process systems.

3. API 607 Compliant Fire-Safe and Metal Seating

For volatile hydrocarbon processing lines and high-temperature utilities, our high-performance butterfly valves can be configured with specialized metal-to-metal seats or fire-safe laminated trims. If an industrial fire destroys primary polymer components, the underlying pre-loaded resilient metal seat maintains a positive, tight seal against the disc edge, preventing external leakage and ensuring critical plant safety.

4. Integrated ISO 5211 Actuation Topworks

To allow for seamless automation inside complex industrial complexes, each FlowBiz high-performance valve features an integrated ISO 5211 top mounting pad and square drive stem. This standardized layout allows for direct, bracket-free mounting of manual high-leverage handles, enclosed worm gearboxes, double-acting pneumatic cylinders, or modulating electric actuators, simplifying field integration and reducing retrofitting costs.

Strategic High-Pressure Industrial Applications

FlowBiz double-offset eccentric wafer butterfly valves are specified across primary high-velocity fluid lines:

• Oil & Gas Midstream Processing: Tank farm isolation, manifold lines, light hydrocarbon processing loops, and gas transmission utilities.

• Chemical & Petrochemical Refining: Volatile organic solvent routing, process acid isolation, and intermediate chemical batching.

• Power Generation & Steam Networks: Main condenser cooling lines, boiler feed-water isolation, low-pressure steam extraction, and co-generation grids.

• Water & Wastewater Infrastructure: High-capacity municipal water mains, reverse osmosis desalination manifolds, and high-volume lift station pumping grids.

Frequently Asked Questions (FAQ)

Q: Why is cast iron unsuited for an eccentric butterfly valve rated for Class 300 or Class 600 service?

A: Cast iron possesses a brittle crystalline structure with very low impact resistance and tensile strength. Under international pressure piping standards like ASME B16.34, cast iron is strictly limited to low-pressure Class 125/150 systems at ambient temperatures. Exposing cast iron to a Class 300 or Class 600 pressure wave could cause sudden structural fracturing or catastrophic body failure. These high-consequence process systems require high-tensile Cast Carbon Steel (WCB) or alloy steels to safely support the massive mechanical loads and pipeline stresses.

Q: What is the primary installation benefit of a wafer-type body profile?

A: A wafer-type body features an ultra-compact face-to-face dimension that allows the valve casing to slide directly between two standard pipeline flanges. Long, high-tensile stud bolts are passed through the pipe flanges, surrounding and clamping the valve tightly into place. This space-saving design drastically reduces the physical space required within piping manifolds and cuts the overall valve weight by up to 50% compared to a standard flanged valve, simplifying field handling and reducing structural pipe hanging loads.

Q: How does a Class VI leakage rating impact chemical process line performance?

A: Valve leak rates are governed strictly by codes like ASME B16.104 / FCI 70-2. While lower ratings like Class IV allow a minor, calculated internal fluid bypass during isolation, Leakage Class VI requires a bubble-tight, zero-leakage shut-off. FlowBiz high-performance valves achieve this tight seal through precision-machined eccentric discs and pre-loaded soft or metal seats, making them the standard choice for isolation where any internal product seepage could cause unsafe line conditions or chemical contamination.

Q: Why is the outer surface finished in a distinct silver-black industrial coating?

A: Heavy industrial environments and coastal manufacturing zones subject equipment to continuous moisture, chemical vapors, and humid atmospheric conditions. FlowBiz applies a heavy-duty, high-build Silver-Black Protective Coating to our outer pressure shells. This specialty layer prevents external oxidation and rust scaling, ensuring the valve maintains its structural integrity, resists external elements, and provides long-term operational reliability in severe environments.

Q: How can project procurement managers and engineers coordinate factory-direct quotes?

A: Sourcing can be initiated by contacting our corporate sales division in Rajkot or Ahmedabad, Gujarat. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise nominal pipeline diameters (2" to 48"), target pressure class (Class 150/300/600), explicit chemical or fluid media parameters, and required actuation drive optionsto deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a high-pressure water treatment manifold or upgrading a severe-service petrochemical pipeline? Contact our sales and engineering office today to receive complete technical data sheets, certified dimensional blueprints, and an itemized commercial proposal.
