Welcome to FlowBiz Export Private Limited, a globally recognized engineering authority for advanced fluid modulation, zero-friction process isolation, and heavy-duty flow control automation. Operating state-of-the-art manufacturing foundries, precision CNC machining grids, and automated hydrostatic compliance testing cells in Ahmedabad, Gujarat, we are India's leading manufacturer, supplier, and global B2B exporter of severe-service Stainless Steel Industrial Butterfly Valves.

Our high-performance quarter-turn control valves are engineered with advanced torque-reduction geometry, enabling them to modulate and guide liquids, gases, and oils with exceptional efficiency. From our manufacturing headquarters in Ahmedabad, we leverage premium logistics pipelines to support critical infrastructure networks nationwideincluding Rajkot, Jamnagar, Bhavnagar, Junagadh, Gandhidham, Vapi, Surat, Mumbai, Pune, and Chennaialongside fast-tracked international maritime freight channels for rapid global project export.

Technical Specifications & Compliance Matrix

FlowBiz Stainless Steel Butterfly Valves feature a precision-engineered, contoured disc geometry paired with an advanced tapered seat interface. This configuration achieves an absolute, bubble-tight seal at the exact point of closure, eliminating continuous frictional contact throughout the90

90 rotational stroke to significantly reduce wear.

Core Engineering Features & Design Advantages

1. Ultra-Low Operating Torque Profile

Standard concentric butterfly valves subject their elastomer seats to continuous mechanical scraping across the entire 90 travel path, resulting in high operational resistance and accelerated seat tearing. The FlowBiz design features a precision-machined contoured disc edge that eliminates frictional contact during rotation. Because frictional resistance is minimized through the stroke, the operating torque remains consistently low, regardless of whether the pipeline transports air, water, or oil.

2. Tapered Seat Design for Extended Service Life

Our valves achieve a complete, high-integrity fluid seal using a specialized tapered projection profile on the rubber seat. The stainless steel disc makes compressive contact with the seat liner only at the final degrees of closure. This localized sealing action prevents the elastomer from stretching, puckering, or suffering from compression set, extending the valve's service life and lowering maintenance overhead.

3. Native Corrosion Resistance and Material Purity

Our valve bodies and discs are cast from premium ASTM A351 CF8M (Stainless Steel 316) or CF8 (Stainless Steel 304). This high-alloy metallurgy provides excellent native resistance to localized pitting, stress-corrosion cracking, and chemical attack. This ensures long-term operational reliability when handling aggressive fluids, industrial gases, or refined oils without the risk of material degradation or fluid contamination.

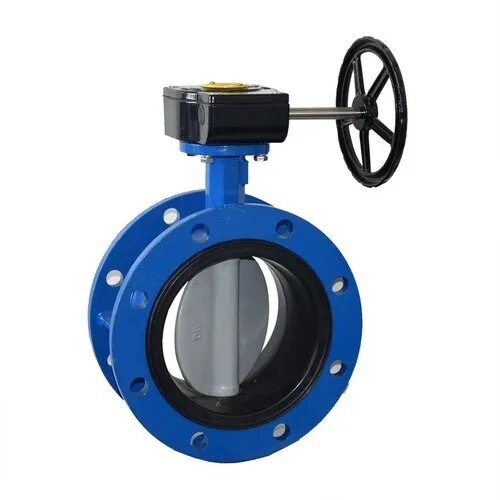

4. Robust Flanged Integration and Visual Coding

Engineered for seamless integration into structural pipeline headers, these valves feature integrated flanged end connections that ensure a highly secure, leak-resistant joint. The robust external finish, available in high-visibility industrial blue or sleek black, serves as a durable protective layer against environmental wear while helping field operators visually organize and identify separate process lines.

Strategic Cross-Industry Applications

FlowBiz high-efficiency stainless steel butterfly valves are specified across primary industrial processing loops:

• Chemical Processing Plants: Direct modulation, isolation, and routing of aggressive chemical reagents, acidic wash solutions, and volatile solvents.

• Water Treatment Facilities: High-volume raw water intake lines, industrial reverse osmosis networks, demineralized water headers, and municipal filtration loops.

• Oil Refineries & Petrochemical Lines: Secondary oil transmission headers, low-viscosity hydrocarbon fuel handling, and storage tank boundary lines.

• Energy & Power Generation Utilities: Centralized cooling tower arrays, condenser water pipelines, heat exchanger feeds, and industrial compressed air headers.

Frequently Asked Questions (FAQ)

Q: Why do high-performance industrial butterfly valves standardly begin at a 2-inch nominal size?

A: Pipelines below 2 inches (50mm) feature narrow internal cross-sectional areas. Because a butterfly valve's disc sits directly inside the middle of the fluid stream even when fully open, placing this disc and heavy-duty shaft assembly inside a micro-bore line would restrict the fluid path, creating an excessive restriction and severe pressure drop. For pipelines below 2 inches, FlowBiz Stainless Steel Ball Valves or Globe Valves are specified to preserve proper fluid velocity and pressure profiles.

Q: How does a low operating torque design affect the long-term cost of valve automation?

A: In standard butterfly valves, high frictional drag requires large, high-torque pneumatic or electric actuators to turn the disc. By eliminating seat friction through our advanced contoured disc geometry, the required operating torque is markedly reduced. This torque reduction allows plant engineers to select smaller, more compact, and more cost-effective actuator packages, which directly reduces initial capital expenditures and minimizes compressed air or electrical power consumption.

Q: What is the benefit of a double-flanged butterfly valve connection over a standard wafer style?

A: While wafer butterfly valves are clamped between two pipe flanges using long bolts that span the entire body, a Double-Flanged Connection features independent bolt holes on both sides of the valve casing. This allows the valve to bolt directly to individual pipe flanges, enabling dead-end isolation service. Plant technicians can safely disconnect downstream piping for cleaning or modifications while keeping the upstream side fully pressurized.

Q: When should an engineer choose a manual pull-lever over an enclosed worm gearbox?

A: Selection depends primarily on your pipeline size and operating pressure profile:

• Multi-Position Manual Pull-Levers: Ideal for quick quarter-turn isolation or immediate visual flow adjustments on smaller lines (Typically up to 6" / 150 mm) operating under standard medium pressures.

• Enclosed Worm Gearboxes: Recommended for larger-bore lines (above 6") or higher velocity systems. The internal gear reduction prevents the fluid velocity from forcing the valve open or closed unexpectedly, providing safe, high-leverage manual control for operators.

Q: How can project procurement managers and engineers in Ahmedabad coordinate factory-direct quotes?

A: Sourcing can be initiated by contacting our corporate sales division in Ahmedabad, Gujarat. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise nominal pipeline diameters (2

2 in to 24 in), preferred stainless steel grades (CF8 vs. CF8M), target pressure constraints, fluid properties, and automated actuation requirementsto deliver a certified technical submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you designing a high-capacity water distribution network or upgrading an automated chemical process manifold? Contact our Ahmedabad sales and engineering office today to receive comprehensive technical sheets, certified structural layouts, and an itemized commercial proposal.
