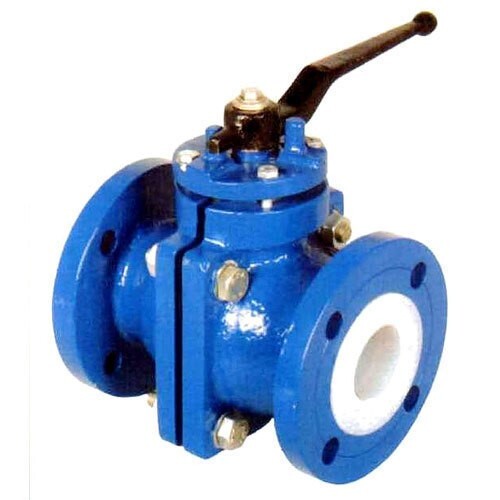

High-Performance PTFE Lined Ball Valves | FlowBiz Export Pvt Ltd

FlowBiz Export Pvt Ltd is an engineering-driven manufacturer, supplier, and global exporter of high-integrity PTFE Lined Ball Valves in India. Operating through a highly responsive national supply matrix with major production and distribution networks in Vapi, Gujarat, and pan-India, we engineer these specialized fluid-handling systems. They are built to combine heavy mechanical strength with ultimate chemical inertness, fulfilling your comprehensive process isolation needs.

Standard metallic valves suffer from rapid chemical attack, pitting, and structural degradation when handling highly aggressive media like sulfuric acid, hydrochloric acid, strong alkalis, and organic solvents. The FlowBiz PTFE Lined Ball Valve series resolves this vulnerability by completely lining the internal body cavity, ball, and stem with a thick, uniform layer of high-density fluoropolymer. This ensures that aggressive chemicals never come into contact with the underlying structural metal, delivering exceptional resistance to corrosive fluids, preventing product contamination, and maintaining leak-free operation.

Technical Specifications & Compliance Matrix

Our fluoropolymer-lined production series is precision-machined and rigorously verified to satisfy strict international safety and chemical processing standards:

Strategic Design & Chemical Protection Features

1. Multi-Layer Fluoropolymer Lining Matrix (PTFE / PFA / FEP)

To cover the full spectrum of industrial chemical severity, we offer three distinct internal lining options:

• PTFE Lining: The benchmark choice for general chemical isolation. Offers near-total chemical inertness, zero moisture absorption, and an extremely low coefficient of friction across standard acids and solvents.

• PFA Lining: Ideal for high-purity processes and severe thermal cycling. PFA exhibits superior melt-strength and resistance to stress-cracking, preventing polymer permeation under vacuum conditions.

• FEP Lining: Excellent, cost-effective alternative for moderate temperatures, delivering dense, pore-free barrier security against chemical permeation.

2. Dual-Layer Outer Casing Shielding

Our valves utilize a multi-layered approach to maximize external equipment longevity:

• Heavy-Duty Pressure Boundaries: Crafted with robust Stainless Steel or Carbon Steel outer bodies, providing high mechanical strength to handle pipeline stresses and pressure surges.

• Fusion-Bonded Epoxy Coating: The exterior metal surfaces are treated with a high-build, fusion-bonded epoxy or standard protective epoxy coating. This finish protects the exterior from harsh chemical splashes, aggressive vapors, washdowns, and outdoor environmental stress.

 FlowBiz Lined Protection Layers Exterior Shield Heavy Metal Core Internal Lining Epoxy Coating Carbon / SS Body PTFE / PFA / FEP Resists Vapors Absorbs Stresses Total Inertness

3. High-Safety Stem and Static Protection Systems

Managing aggressive chemicals in volatile chemical plants requires robust personal and operational safety boundaries:

• Anti-Static Devices: High-velocity fluid movement through fluoropolymer linings can generate significant electrostatic charges. Our integrated anti-static device maintains electrical continuity across the valve trim, safely discharging static build-up to eliminate spark risks.

• Lockable Lever Handle: Manual line regulation features a secure, lockable lever handle. This allows plant teams to padlock the valve securely in the open or closed position, preventing accidental actuation or unauthorized tampering during critical process runs.

• Advanced Actuation Readiness: Engineered for smooth, quarter-turn (90 degree) manual operation. The top works can also integrate with pneumatic or electric automated actuators to provide remote SCADA-controlled flow regulation.

Premium Internals & Sealing Trim Optimization

Achieving zero-leakage performance under chemical stress requires matching the internal metal components with the appropriate polymer sealing faces:

• Ball Configuration: Precision-machined from robust SS316 Stainless Steel or completely jacketed with a thick molded layer of PTFE/PFA, ensuring an ultra-smooth finish that minimizes seat wear.

• Stem Assembly: Machined from high-strength SS304 or SS316, providing excellent mechanical torque transmission and resistance to twisting under high-pressure cycles.

• Seat Sealing Seals: Manufactured from premium PTFE, TFM, or FEP. TFM options provide enhanced structural density, lower deformation under mechanical load, and improved performance under elevated thermal gradients.

Frequently Asked Questions (FAQs)

Q: Why is a PTFE-lined ball valve mandatory for pharmaceutical and chemical processing?

A: Standard stainless steel valves can suffer from localized pitting or micro-corrosion when exposed to highly aggressive acids and solvents. This chemical reaction introduces metallic ions into the media, leading to batch contamination. The thick, non-porous fluoropolymer lining in FlowBiz valves isolates the fluid from the metal entirely. This prevents body corrosion, maintains high product purity, and eliminates contamination risks, making it essential for strict pharmaceutical and chemical regulations.

Q: What exact quality testing confirms the zero-leakage integrity of FlowBiz lined valves?

A: Every individual lined valve undergoes a rigorous hydrostatic shell test and a pneumatic seat-leak check in strict compliance with API 598 standards. This testing verifies that the internal lining is completely free of pinholes or microscopic cracks, ensuring the assembly consistently delivers a certified Class VI bubble-tight shut-off performance before leaving our Vapi factory.

Q: What is the main advantage of a full bore, two-piece valve design?

A: A Full Bore configuration means the internal diameter through the rotating ball matches the connected pipeline exactly. When fully opened, the valve creates a smooth, completely unobstructed flow path with negligible pressure drop, which prevents media stagnation. The Two-Piece split-body structure simplifies line maintenance by allowing quick access to internal seats and trims during routine shutdowns, lowering your long-term maintenance costs.

Q: Why choose FlowBiz Export Pvt Ltd as your trusted lined ball valve partner?

A: FlowBiz Export Pvt Ltd balances advanced industrial engineering with strict compliance to global validation benchmarks like ASME B16.34 and BS EN ISO 17292. By providing traceable material grades (SS316, Carbon Steel), offering flexible sizes from 15mm up to 300mm, and applying protective fusion-bonded epoxy exterior finishes, we eliminate field reliability concerns. Our capacity to deliver customized lined valves tailored to your exact application footprint makes us a highly dependable supply chain partner across India and global export markets.

A single relevant question to help guide your system layout selection:

• What is the chemical composition and maximum operating temperature of the aggressive media in your piping system?
