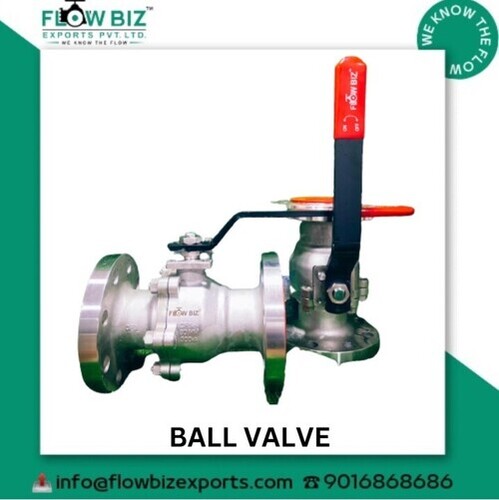

High-Performance Industrial Ball Valves | FlowBiz Exports Pvt. Ltd.

FlowBiz Exports Pvt. Ltd. is a premier manufacturer, supplier, and global exporter of high-precision industrial ball valves in India. Engineered to excel under severe operating conditions, our comprehensive ball valve portfolio delivers elite flow isolation and regulation across multiple industries.

We operate an agile, high-speed supply and distribution network serving major industrial zones, including:

• Gujarat: Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch.

• Maharashtra: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur.

• Pan-India Hubs: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and key global export markets.

Technical Specifications & Production Range

Our manufacturing infrastructure is fully equipped to produce highly diverse valve configurations tailored to your exact system requirements:

Special Engineering Features & Industrial Benefits

1. Free-Floating Ball & Seat Wear Compensation

Our advanced free-floating ball design utilizes line pressure to push the ball naturally against the downstream seat when closed. This continuous single-point contact creates a highly secure seal and automatically compensates for seat wear over time, exponentially increasing the valve's service life.

2. Certified Fire-Safe Construction

Engineered for volatile environments, our valves can be supplied with certified fire-safe designs conforming to API 607, API 6FA, and BS 6755-II. If an external plant fire destroys the primary soft seats, the ball shifts to make secondary contact with an integrated metal seat, preventing catastrophic downstream fluid leaks.

3. High-Security Blowout-Proof Stems

Operator safety is a core priority. The valve stem is designed with an internal bottom shoulder that prevents it from blowing out under extreme system pressure spikes, ensuring absolute integrity even if the packing gland is compromised.

4. Optimized Flow Dynamics & Bi-Directional Sealing

Featuring a perfectly straight-through flow path and micro-finished balls, FlowBiz valves minimize fluid turbulence and internal pressure drops (pressure difference). Additionally, their symmetric internal geometry supports full bi-directional flow, simplifying pipeline system engineering and installation.

Material Optimization Matrix

To withstand high-temperature thresholds and aggressive fluids, we offer tailored combinations of metallic bodies and heavy-duty seating materials:

Body Metallurgy

• Stainless Steel (SS304, SS316): Provides ultimate corrosion resistance for pharmaceuticals, fine chemicals, food processing, and offshore marine environments.

• Cast Carbon Steel (WCB): High mechanical tensile strength, ideal for non-corrosive high-pressure industrial utilities like oil, gas, and steam lines.

Specialized Seating Materials

• Virgin PTFE: Excellent chemical inertness and low friction; ideal for pure water and general chemical services.

• RPTFE (Reinforced Teflon): Fortified with glass fiber or carbon fillers to support higher pressure-temperature variations without cold-flowing.

• Metal-to-Metal Seating: Engineered specifically for high-temperature limits, abrasive slurries, and hard particulates that would instantly shred soft seats.

Versatile Mounting and Operation

Every FlowBiz ball valve comes standard with an integrated ISO 5211 mounting pad. This universal feature facilitates fast, bracketless coupling with multiple actuation mechanisms:

• Manual Control: Ergonomic heavy-duty levers for straightforward quarter-turn (90 degree c) hand operation.

• Mechanical Gearbox: Recommended for larger diameter valves to reduce manually required breakout torque.

• Automated Control: Seamless integration with pneumatic cylinders or electric actuators for centralized PLC automation.

Frequently Asked Questions (FAQs)

Q: What is the primary difference between a Floating and a Trunnion-Mounted ball valve?

A: In a Floating Ball Valve, the ball is suspended by the stem and moves slightly downstream under fluid pressure to compress the seat for a tighter seal; this is highly effective for low-to-medium pressure pipelines. In a Trunnion-Mounted Ball Valve, the ball is anchored at both the top and bottom by fixed bearings. The pipeline pressure pushes the seats against the ball instead, making it the required choice for large-diameter, ultra-high-pressure applications.

Q: Why is an anti-corrosive coating applied to the external valve body?

A: Harsh chemical processing units and coastal industrial regions subject external surfaces to rapid atmospheric oxidation. Our premium anti-corrosive epoxy coatings shield the carbon or forged steel housing from humidity, salt spray, and chemical fumes, protecting structural integrity and ensuring long-term aesthetic and mechanical durability.

Q: Which connection type should I choose: Threaded, Flanged, or Butt Weld?

A: * Threaded Ends: Ideal for small-bore piping systems where quick installation and low cost are prioritized.

• Flanged Ends: Preferred for large industrial pipelines because they provide easy bolt-on removal for routine plant maintenance.

• Butt Weld Ends: Selected for high-pressure, high-temperature, or critical zero-leak applications (such as steam lines) where joint integrity must be permanently fused.

Q: Why should FlowBiz be your trusted valve manufacturer in Gandhidham and globally?

A: FlowBiz Exports Pvt. Ltd. matches state-of-the-art production with rigorous QA testing protocols. Every batch of valves undergoes meticulous hydrostatic and pneumatic pressure validation to ensure absolute conformity with international codes. Our engineering team provides end-to-end technical supportfrom custom material selection to specialized automation designmaking us a highly reliable partner for domestic supply and global trade.
