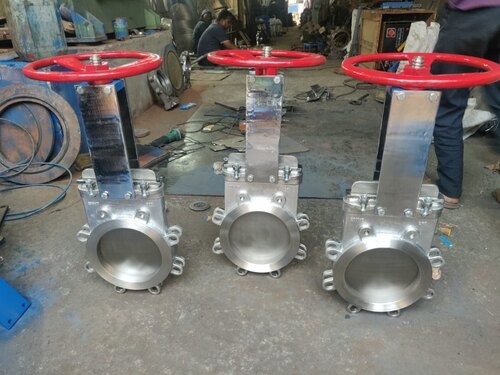

API 609 / MSS SP-81 Industrial Knife Edge Gate Valves FlowBiz Pune

Welcome to FlowBiz Export Private Limited, a certified manufacturing authority for heavy-duty slurry handling, abrasive media isolation, and high-solid utility piping networks. Operating advanced steel foundries, heavy fabrication bays, and high-precision CNC blade-grinding complexes in Pune, Maharashtra, we are India's premier manufacturer, supplier, and global B2B exporter of heavy-duty Knife Edge Gate Valves.

Our specialized linear-motion isolation assets are explicitly engineered to cut through thick slurries, dense powders, and highly viscous scale buildup where standard wedge gate valves rapidly plug and seize. From our manufacturing headquarters in Pune, we seamlessly support critical power generation, mining infrastructure, and heavy process manufacturing across primary domestic industrial zonesincluding Mumbai, Thane, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Rajkot, Ahmedabad, Chennai, and Bengalurubacked by direct maritime and overland logistics for rapid international project export worldwide.

Technical Specifications & Configuration Matrix

FlowBiz Knife Edge Gate Valves utilize a slim, space-saving wafer or lugged body architecture housing a sharp-edged internal plate. As the handwheel or actuator moves the valve through its linear stroke, the beveled edge of the blade acts as a physical guillotine, shearing cleanly through dense, settled solids to seat tightly against the internal seal ring.

Core Engineering Features & Design Advantages

1. Robust Cast Carbon Steel (WCB) and Alloy Construction

Unlike standard utility valves that degrade under the continuous friction of abrasive solids, our pressure casings are cast from high-grade ASTM A216 WCB carbon steel or austenitic stainless steel. This robust metallurgy provides the superior tensile strength and mechanical rigidity needed to resist body distortion under pipeline bending moments, guaranteeing safe pressure containment in harsh environments.

2. Precision-Ground, Beveled Knife Blade Geometry

The defining feature of the FlowBiz design is its heavy-duty stainless steel gate blade (SS304/SS316), featuring a multi-stage polished surface and a sharp, beveled bottom edge. This guillotine profile ensures that when the manual handwheel is turned, the blade effortlessly slices through packed mineral ash, wood pulps, and thick chemical slurries rather than pushing them into the seat recess, completely eliminating valve clogging and jamming.

3. Space-Saving Wafer and Full-Lugged Profiles

Standard industrial gate valves feature massive, heavy bodies that can overload pipe hangers and consume significant space in crowded line manifolds. FlowBiz Knife Edge Gate Valves utilize an ultra-slim wafer or full-lugged face-to-face body geometry. This compact design slides seamlessly between standard pipeline flanges, cutting total valve weight by up to 60%, simplifying field handling, and reducing structural footprint requirements.

4. Direct Manual Operation Optimized for Medium Pressures

Equipped with a high-leverage manual handwheel and a precision-machined rising stem, our standard 6-inch (150 NB) and custom-sized assemblies give field operators direct, reliable control under medium pressure conditions. The manual mechanism requires zero external power lines, simplifying installation in remote areas while remaining fully customizable to accept quick-acting pneumatic cylinders for automated automated plant configurations.

Strategic Severe-Service Industrial Applications

FlowBiz high-performance knife edge gate valves are specified across primary high-solid lines:

• Thermal Power Generation Utilities: Fly ash slurry pump isolation loops, bottom ash de-watering circuits, and dry fly ash silo discharge tracks.

• Mining & Mineral Processing Infrastructure: River water de-sanding manifolds, iron ore tailing lines, coal washing slurries, and thickener underflow streams.

• Pulp, Paper, & Fiber Processing: High-density wood stock lines, bleaching chemicals, recycled pulp processing tanks, and waste sludge manifolds.

• Municipal & Industrial Wastewater: Raw sewage grids, grit chamber isolation, de-watered sludge transfer lines, and anaerobic digester systems.

Frequently Asked Questions (FAQ)

Q: Why do standard wedge gate valves fail rapidly in fly ash and mining slurry systems where knife edge gate valves excel?

A: Standard gate valves utilize a deep, enclosed bottom pocket to receive the tapered wedge disc. When handling fly ash or slurries, suspended grit and hard solids drop out and pack tightly into this bottom pocket. As a result, the wedge cannot seat fully, causing major inline bypassing and rapid seat washouts. A Knife Edge Gate Valve features a cavity-free, open-bottom port. The sharp, polished blade slices cleanly through the slurry and pushes solids out of the path, allowing the valve to close fully without jamming.

Q: What is the mechanical difference between a wafer style and a full-lugged body profile?

A: Selection depends strictly on your line location and safety isolation requirements:

• Wafer Style: Features a slim casing positioned between two pipe flanges, with long stud bolts passed through the entire assembly to clamp the valve in place. It is highly cost-effective but requires the pipeline to be depressurized on both sides during maintenance.

• Full-Lugged Style: Incorporates independent threaded bolt holes cast around the body shell. This allows the valve to be securely bolted directly to one side of a pipe flange, enabling dead-end isolation service where downstream piping can be safely unbolted and serviced while upstream lines remain under pressure.

Q: How does the polished surface finish on the stainless steel blade benefit field operations?

A: A rough, unpolished blade surface creates high friction against the internal gland packing rings and chest seals, leading to rapid packing wear, high operating torque, and eventual external leakage. FlowBiz precision-grinds and fine-polishes our stainless steel plates to a mirror finish. This smooth surface minimizes mechanical resistance, ensures easy manual adjustment, and prevents sticky media, sticky resins, or dry ash particulates from adhering to the blade.

Q: What primary steps are required to place a custom configuration order with the Pune facility?

A: B2B procurement managers can initiate a custom order by contacting our application engineering division in Pune, Maharashtra. Our technical experts will evaluate your specific pipeline dimensions (50 NB to 600 NB), desired pressure ratings (Class 150/300), preferred metallurgy (WCB vs. Stainless Steel), and explicit media profiles (such as dry ash versus highly corrosive de-sanding grids). This data ensures we craft an exact product submittal data sheet and a competitive commercial proposal with factory-direct pricing.

Q: Can these manual knife edge gate valves be automated with pneumatic cylinders in the field later?

A: Yes. While our standard configurations come with high-leverage manual handwheels or chain-wheels for manual operation, the valve topworks feature an industry-standard mounting yoke pattern. If your plant processes are upgraded to automated control loops, your maintenance team can easily remove the manual stem assembly and bolt a double-acting pneumatic cylinder or electric actuator directly onto the existing frame, enabling quick automation retrofits without removing the valve body from the pipeline.

Are you optimizing a severe bottom-ash de-watering network or upgrading an abrasive river water de-sanding circuit? Contact our Pune sales and engineering office today to receive complete technical data sheets, certified dimensional blueprints, and an itemized commercial proposal.
