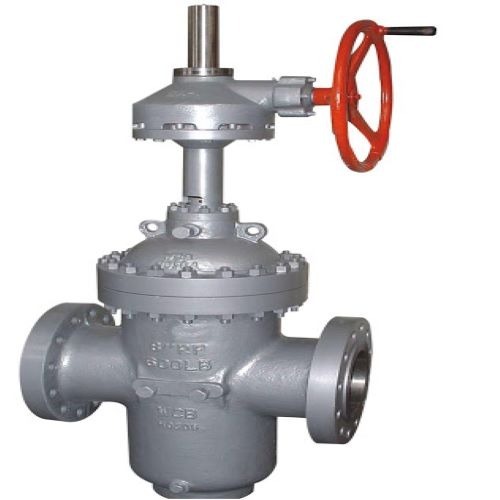

API 6D Cast Steel Pipeline Gate Valves FlowBiz Mumbai

Welcome to FlowBiz Export Private Limited, a globally recognized manufacturing authority for high-capacity oil and gas transmission, mainline pipeline isolation, and heavy-duty petrochemical processing control. Operating high-capacity investment casting foundries, heavy-duty CNC boring mills, and automated hydrostatic testing bays in Mumbai, Maharashtra, we are India's leading manufacturer, supplier, and global B2B exporter of high-integrity API 6D Cast Steel Gate Valves.

Our pipeline-grade linear-motion isolation assets are engineered to provide an absolute, bubble-tight structural shut-off under high pressures and severe operational temperatures. From our manufacturing hub in Mumbai, we leverage world-class local maritime infrastructure to handle fast-tracked domestic project supply and direct Free On Board (FOB) export shipments from Mumbai's major sea channels to global international markets.

Technical Specifications & Pipeline Compliance Matrix

FlowBiz Pipeline Gate Valves are manufactured and certified in strict compliance with the API 6D standard. Featuring a solid, flexible, or split-wedge design, these valves provide a straight-through, full-bore fluid path when completely open. This configuration minimizes line turbulence and pressure drop while allowing for the unobstructed passage of pipeline pigs during routine line maintenance.

Core Engineering Features & Design Advantages

1. Robust Cast Steel Structural Integrity

To easily withstand the high internal pressures, thermal expansion gradients, and external piping stresses common in gas transmission lines, our valve shells are cast from premium ASTM A216 WCB Carbon Steel. The heavy-walled construction provides exceptional yield strength and structural mass, preventing casing deformation and guaranteeing strict pressure boundary safety during operation.

2. Full-Bore, Pigging-Compatible Flow Profile

Our API 6D gate valves feature a true full-bore internal diameter that perfectly matches the inside diameter of your pipeline. When the wedge is lifted fully into the bolted bonnet chamber, the fluid track becomes completely unobstructed. This design provides an ultra-low pressure drop and allows operators to launch mechanical scraping, inspection, and cleaning pigs directly through the valve bore without damaging internal components.

3. API Trim No. 8 Stellited Sealing Interface

To prevent high-velocity erosion and localized wire-drawing when isolating raw oil or high-pressure gas, the seating surfaces feature a hard-faced API Trim No. 8 matrix. This combines a 13% Chrome alloy wedge face with a Stellite hard-faced body seat ring, creating an incredibly tough, wear-resistant sealing contact area that maintains a reliable metal-to-metal shut-off over long operational cycles.

4. Flanged Integration & Outside Screw & Yoke (OS\&Y) Configuration

Engineered for straightforward integration into heavy-duty industrial pipe manifolds, these valves feature integrated flanged ends machined to match ASME B16.5 specifications. The OS\&Y layout positions the rising stem threads entirely outside the fluid track, keeping them clean from process media contamination and allowing for simple, direct lubrication to ensure smooth manual operation.

Strategic High-Capacity Industrial Applications

FlowBiz full-bore API 6D cast steel gate valves are specified across primary high-pressure utility lines:

• Oil & Gas Transport Mainlines: Absolute upstream and downstream isolation within crude oil transmission lines, natural gas headers, and refinery tank farm boundaries.

• Petrochemical & Refining Processes: Direct containment and isolation of hydrocarbon products, volatile process water loops, and heavy oil transfer manifolds.

• Water Treatment & High-Pressure Infrastructure: High-capacity industrial raw water intake, municipal filtration pump stations, and deep-well wastewater disposal lines.

• Power Generation Boiler Utilities: Managing high-temperature boiler feed-water loops, auxiliary steam distribution headers, and condensate cooling manifolds.

Frequently Asked Questions (FAQ)

Q: Why do API 6D pipeline gate valves standardly begin at a 2-inch nominal size rather than 1/2 inch?

A: The API 6D standard specifically governs valves used in large-scale pipeline transportation and distribution systems. These mainlines require high fluid volume throughput and the ability to pass mechanical pipeline pigs for regular inline inspection. Small-bore lines below 2 inches (50mm) cannot be mechanically pigged and generally serve auxiliary instrument lines rather than transmission grids. For small-bore high-pressure lines from 1/2"to 2", compact FlowBiz API 602 Forged Steel Gate Valves are specified instead.

Q: What is the main operational advantage of a flexible wedge gate valve over a solid wedge design?

A: A solid wedge can suffer from "thermal binding," which happens when a valve is closed while hot; as the system cools down, the pipe contracts and clamps the wedge so tightly into the seat that it jams. A Flexible Wedge Gate Valve features a machined slot around the outer perimeter of the wedge disc. This slight structural flexibility allows the seating faces to adapt dynamically to shifting pipeline temperatures and mechanical deflection, preventing thermal binding and ensuring a low-torque opening stroke every time.

Q: Why is an API Trim No. 8 (Stellite-faced) seating matrix critical for oil and gas applications?

A: Hydrocarbon pipelines often carry micro-abrasive sand, paraffin waxes, and corrosive organic compounds at high fluid velocities. When the valve wedge is cracked open or closed, these materials can score standard metals. Hard-facing the seat rings with Stellite provides an exceptionally hard, corrosion-resistant surface that protects the valve from erosion, ensures consistent metal-to-metal sealing, and extends the asset's service life.

Q: What is the process for coordinating direct sample evaluations and FOB Mumbai maritime dispatch?

A: Sourcing is supported by an established, transparent procurement framework. To facilitate engineering review before placing large contract orders, sample availability is guaranteed from our facility. Once technical approval and payments are verified, the valves undergo 100% pressure inspection. They are then packed in seaworthy export-grade crates and moved to Mumbai's primary FOB ports for fast-tracked domestic shipping or international maritime export dispatch.

Q: How can project procurement managers and engineers coordinate a direct factory quote?

A: Sourcing can be initiated by contacting our corporate sales division in Mumbai, India. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise nominal sizing requirements (2"\ to 16"), preferred pipeline pressure class (Class 150/300/600), fluid characteristics, and maximum temperature limitsto deliver a certified technical submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a high-pressure crude oil manifold or upgrading a heavy-duty industrial water distribution station? Contact our Mumbai sales and engineering office today to receive complete technical data sheets, certified structural blueprints, and an itemized commercial proposal.
