Industrial Full-View Sight Glasses: 360-Degree Media Monitoring and Design Standards

In high-yield process lines, fluid transmission manifolds, and utility headers, maintaining real-time visual control over the internal state of a process stream is a critical operational baseline. Process operators must be able to verify flow continuity at a glance, audit product color consistency, track fluid turbidity, and spot internal phase variations. These observations allow facilities to manage fluid purity, confirm pipeline blending, and isolate line fouling early without disrupting the main process flow.

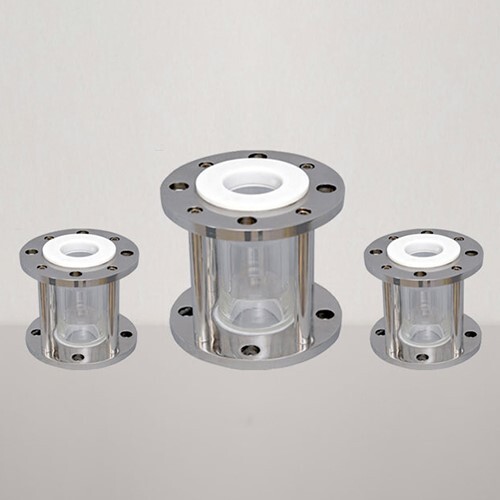

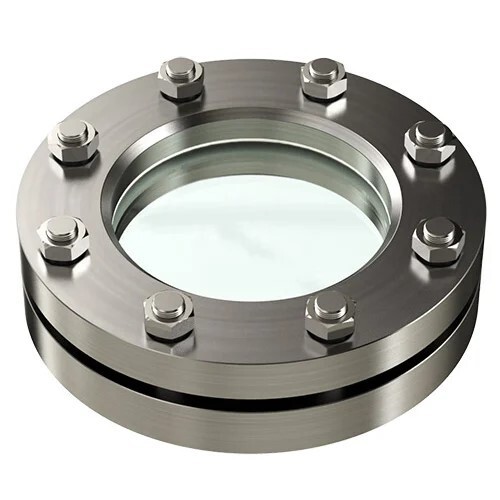

An industrial Full-View Sight Glass (or cylindrical sight flow indicator) provides a straightforward, highly reliable inline viewing layout. Unlike standard flat-window viewports that limit observation to a single angle, a full-view sight glass features a premium cylindrical glass tube secured within a heavy-duty, multi-bolt metallic tie-rod frame. This configuration provides unhindered, 360-degree panoramic visibility of the passing process media from any field position, acting as a high-integrity pressure containment boundary.

                     360-Degree Panoramic Visibility



                       Heavy Metal Flange Anchor

                                     (Structural Tie-Rod Support Frame)
         [ Fluid In ]    [ Fluid Out ]
                           360 Cylindrical        (Continuous Stream)
                           Borosilicate Tube

                                     (PTFE/Elastomeric Compression Seals)

                       Heavy Metal Flange Anchor


FlowBiz Exports is an elite global fluid-handling brand and a leading Full View Sight Glass Manufacturer in Vapi, Gujarat, India. We specialize in precision engineering rugged, high-clarity cylindrical sight flow indicators that balance structural safety with total process transparency across global industrial markets.

Technical Specifications & Pressure Metrics

FlowBiz full-view sight glasses are engineered, machined, and hydrostatically tested to comply with international piping alignment standards, including ANSI, DIN, and BS parameters.

Core Product Configuration Matrix

Parameter Profile	Technical Specifications & Engineering Limits
Brand	FlowBiz Exports
Indicator Typology	Full-View Type / Cylindrical Inline Sight Flow Indicator
Visual Range Profile	Full, Uninterrupted 360-Degree Panoramic Visibility
Glass Cylinder Core	Premium-Grade Heat-Treated Toughened Borosilicate Glass
Glass Thickness Envelope	Precision-selected from 8 mm to 25 mm based on pressure load
Material of Construction (MOC)	Cast Iron (CI), Carbon Steel (CS), or High-Grade Stainless Steel (SS)
Pressure Verification Ratings	Verified via hydrostatic testing to satisfy PN10, PN16, or higher
End Connection Styles	Flanged, Screwed (Threaded), or Socket Weld Formats
Piping Installation Layout	Fully adaptable for Vertical or Horizontal mounting orientations

Critical Engineering Features & Process Benefits

1. Uninterrupted 360-Degree Optical Transparency

The cylindrical borosilicate design removes visual blind spots, allowing operators to monitor passing liquids, gases, or steam lines from any angle. Combined with a smooth internal bore finish that minimizes residue accumulation, this indicator makes it easy to track rapid color shifts, identify entrained air pockets, and spot pipeline scaling.

2. Tailored Glass Integrity for Pressure Safety

Standard commercial glass cylinders can shatter under sudden pressure spikes or mechanical line torque. FlowBiz prevents this risk by matching glass wall thickness (from 8 mm up to 25 mm) directly to the nominal port diameter and operational pressure requirements. This engineering approach ensures optimal mechanical integrity and a dependable safety margin during continuous pressure loads.

3. Low-Maintenance, Corrosion-Resistant Build

Constructed from high-durability metals like stainless steel, carbon steel, or brass, the outer support frame resists both internal media exposure and external atmospheric corrosion. The indicator is designed for simple, user-friendly maintenance. If a glass cylinder becomes clouded or etched after long service, technicians can easily access and replace the borosilicate tube without replacing the entire metallic frame, minimizing facility downtime.

Strategic System & Industrial Applications

Our high-integrity full-view sight flow indicators operate without power or complex instrumentation, providing reliable manual observation across diverse processing environments:

• Wastewater Treatment & Effluent Processing: Tracking water clarity, sediment loading, and chemical flocking cycles in filtration loops.

• Marine & Offshore Engineering: Installed on auxiliary fuel lines, lubrication runs, and ballast water transport systems to verify flow consistency.

• Chemical & Pharmaceutical Plants: Monitoring raw liquid transfers, aggressive reagent streams, and solvent purity without risking cross-contamination.

• Textile & Dyeing Operations: Providing clear visual observation of dye baths and wash water quality to ensure precise color management.

• Nuclear Power Engineering Utilities: Installed along auxiliary liquid lines where dependable, manual verification of utility flow is mandatory.

Installation, Alignment, and Commissioning

To ensure a leak-proof installation, FlowBiz full-view sight glasses can be custom-configured for both new construction and retrofit installations:

• Piping Orientation Versatility: The symmetrical structural design functions with identical containment efficiency in both horizontal and vertical pipeline orientations, giving project layout engineers high routing flexibility.

• Interface Standards Compatibility: End connection flanges and threads can be machined to align with major international standards (ANSI, DIN, or BS drilling templates), ensuring a clean drop-in fit.

• Hydrostatic Pre-Commissioning Validation: Every completed indicator undergoes strict hydrostatic pressure testing before leaving our Vapi facility. This testing confirms structural containment up to its maximum PN10/PN16 ratings, ensuring the assembly is completely free of casting porosity or gasket leaks before being activated inline.

Frequently Asked Questions (FAQ)

Q: Why should a design engineer select a full-view sight glass instead of a double-window model?

A: The choice depends on your pressure profile and the required viewing area:

• Full-View Piston/Tubular Style: Provides an uninterrupted, 360-degree view of the fluid core, making it the preferred choice for low-to-medium pressure pipelines where checking fluid color, turbidity, and product purity is the primary goal.

• Double-Window Style: Encloses flat glass discs within a rigid metal pressure shell. While this limits visibility to a single line-of-sight path, it offers higher resistance to mechanical pipe stress, extreme temperatures, and high pressure classes.

Q: What exact maintenance steps are required to safely replace a worn glass cylinder inline?

A: Replacing a component is a straightforward process that requires following key safety steps:

1. System Isolation: Completely isolate the target pipeline section, vent all internal pressure, and drain any remaining process fluid safely.

2. Frame Disassembly: Loosen the structural tie-rod fasteners evenly to relieve compression on the glass seals.

3. Component Swap: Remove the worn or clouded borosilicate tube, fit fresh high-density gaskets, and slide the new toughened glass cylinder into place.

4. Torque Tightening: Tighten the tie-rod nuts in a cross-pattern sequence to apply uniform compression across the face seals, preventing localized glass stress and ensuring a leak-proof seal.

Q: How does a full-view sight glass improve troubleshooting efficiency in automated processing plants?

A: While modern digital mass-flow meters and turbidity sensors track digital flow metrics well, they can give false readings if their internal sensors become fouled or miscalibrated. A Full-View Sight Glass serves as an indispensable manual audit tool. It allows field technicians to visually verify process conditions instantly without relying on electrical power or instrumentation, making it easy to confirm digital sensor data and quickly troubleshoot system anomalies.

Q: What role do high-purity internal finishes play in sight glass performance?

A: Rough, unpolished inner surfaces can create micro-turbulences and catch small particles, which can lead to rapid residue buildup and cloud the window. FlowBiz full-view indicators feature a smooth internal bore finish that allows fluids to glide through cleanly. This design prevents sediment accumulation, maintains excellent long-term optical clarity, and simplifies clean-in-place (CIP) rinsing cycles during batch transitions.
