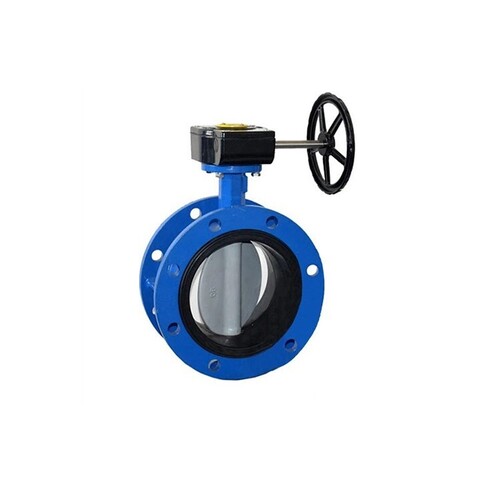

API 609 Double-Flanged Industrial Butterfly Valves FlowBiz Ahmedabad

Welcome to FlowBiz Export Private Limited, an established engineering authority for large-bore pipeline infrastructure, high-capacity fluid isolation, and heavy-duty water distribution automation. Operating state-of-the-art manufacturing cellsincluding specialized iron casting foundries, precision CNC machining centers, and automated hydrostatic compliance testing gridswe are India's premier manufacturer, supplier, and global B2B exporter of heavy-duty Double-Flanged Butterfly Valves.

Our high-performance quarter-turn isolation assets are engineered to provide reliable, long-cycle fluid modulation across large-scale municipal, industrial, and processing pipelines. From our advanced manufacturing base in Ahmedabad, Gujarat, we leverage premium industrial logistics channels to support critical infrastructure networks nationwideincluding Rajkot, Jamnagar, Bhavnagar, Vapi, Surat, Mumbai, Pune, Thane, and Chennaibacked by fast-tracked global maritime freight channels for rapid international project export.

Technical Specifications & Pipeline Parameter Grid

FlowBiz Double-Flanged Butterfly Valves are engineered in strict accordance with major international design codes. Featuring an integrally molded body seat liner and a precision-contoured disc, these valves deliver a secure, bubble-tight bi-directional seal with minimal operating torque requirements across high, medium, and low-temperature media loops.

Core Engineering Features & Design Advantages

1. Integrally Molded Body Liner with Extended Gasket Faces

Standard butterfly valves with loose boot liners are prone to stretching, bunching, and shifting under high fluid velocities, which quickly leads to seat tearing and internal pipeline leakage. The FlowBiz design features a resilient seat liner integrally molded directly into the internal body bore, providing exceptional dimensional stability. Furthermore, our engineers have extended this elastomer liner out onto the flanged contact faces, creating an integrated sealing surface that completely eliminates the need for separate pipe gaskets during installation.

2. Narrow-Land Disc Profile for Ultra-Low Operating Torque

To minimize operational drag and prolong the life of the sealing interface, our valves utilize an advanced narrow-land disc geometry. This precision-contoured edge reduces the surface area contact between the stainless steel disc and the rubber seat liner during the quarter-turn stroke. By decreasing mechanical friction, the valve requires significantly lower operating torque, allowing for smoother adjustments and noticeably lowering the sizing and capital costs of automated actuator packages.

3. Universal Body Geometry & Heavy-Wall Structural Strength

To ensure seamless integration into international retrofits and diverse B2B project layouts, our teams developed a fully universal body profile that aligns easily with companion flanges across all global standards, including ANSI, BS, DIN, JIS, and IS. The outer pressure shell is cast from high-grade FG 260 cast iron, providing superior mechanical strength and structural mass to protect your piping loops against pressure surges, water hammer, and external line stresses.

4. Multi-Position Locking and Flexible Automation Topworks

For pipelines up to6

6 in/150 mm, the manual valve is equipped with a notched indicator plate and an ergonomic hand lever that allows operators to lock the disc in 8 separate intermediate positioning steps for precise throttling, with a dedicated padlock hole for lock-out/tag-out safety. For large-bore lines up to 48

48 in/1200 mm, the valve features a high-leverage, weatherproof enclosed worm gearbox or standard ISO mounting pads for direct coupling to pneumatic or electric actuators.

Strategic Cross-Industry Applications

FlowBiz high-capacity double-flanged butterfly valves are specified across primary industrial utility lines:

• Municipal Water Distribution: Main water supply lines, high-volume pumping stations, urban water storage grids, and regional irrigation headers.

• Industrial Water Treatment Plants: High-capacity reverse osmosis networks, raw water intake channels, sludge handling manifolds, and filtration backwash loops.

• Plant Utility Management: Factory centralized cooling tower arrays, condenser water lines, heat exchanger feeds, and low-pressure air, water, or gas routing loops.

• Infrastructure Utilities: Fire protection water mains, HVAC chilled water lines, and general industrial drainage networks.

Frequently Asked Questions (FAQ)

Q: Why do double-flanged butterfly valves focus on a sizing range from 3 inches up to 48 inches?

A: Pipelines below 3 inches (80mm) carry lower fluid volumes where compact wafer or lug-style valves provide a lightweight and efficient solution. Large-bore infrastructure networks, however, route massive volumes of air, water, and gas through large-diameter headers. Our double-flanged body casing is explicitly engineered to handle these high-capacity networks, scaling securely up to 48 inches (1200mm) to provide an incredibly stable, rigid, and pressure-resistant isolation asset for heavy transmission mainlines.

Q: What is the primary operational advantage of a double-flanged butterfly valve over a standard wafer style?

A: A wafer butterfly valve is clamped between pipe flanges using long bolts that span the entire width of the valve casing, meaning it cannot be unbolted without completely draining both sides of the line. A Double-Flanged Connection incorporates independent bolt circles on both sides of the body shell. This allows the valve to be bolted securely to individual pipe flanges, enabling dead-end isolation service. Plant technicians can safely disconnect downstream piping for cleaning or modifications while keeping the upstream side fully pressurized.

Q: How does the integrally molded seat liner help reduce plant maintenance costs?

A: In standard utility valves, loose rubber seats can easily pucker, slip, or deform when exposed to vacuum lines, high fluid velocities, or sudden flow reversals, resulting in accelerated seal wear. By integrally molding the elastomer seat directly into the cast iron body, FlowBiz permanently locks the seal in place. This design prevents liner displacement, guarantees absolute seat tightness, and significantly extends the operational lifespan of the valve, reducing routine maintenance downtime.

Q: When should a project engineer specify an enclosed worm gearbox over a manual hand lever?

A: Selection is governed primarily by your pipeline size and fluid velocity profile:

• Manual Hand Levers: Highly effective for swift, straightforward quarter-turn isolation or intermediate throttling on smaller line sizes (typically up to 6") where manual torque is easily managed by operators.

• Enclosed Worm Gearboxes: Mandated for larger-bore lines (above 6") and high-velocity systems. The internal gear reduction multiplies the operator's physical turning force and prevents the fluid velocity from forcing the valve open or closed unexpectedly, providing safe, controlled manual operation.

Q: How can project procurement managers and engineers in Ahmedabad coordinate a direct factory quote?

A: Sourcing can be initiated by contacting our corporate sales and engineering office in Ahmedabad, Gujarat. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise nominal pipeline diameters (3" to 48"), preferred metallurgy (Stainless Steel vs. Cast Iron), target system pressure profiles (PN10/PN16), and automated actuation topworks specificationsto deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you designing a high-capacity water distribution station or upgrading a large-scale municipal pumping pipeline? Contact our Ahmedabad sales and engineering office today to receive comprehensive technical sheets, certified structural layouts, and an itemized commercial proposal.
