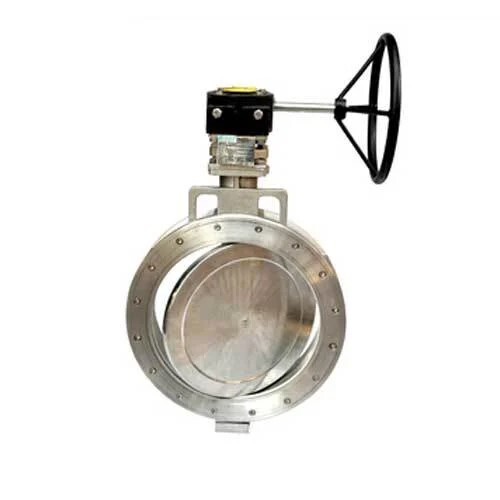

API 609 Double-Offset High-Performance Butterfly Valves FlowBiz Ahmedabad

Welcome to FlowBiz Export Private Limited, a certified manufacturing authority for high-frequency fluid isolation, critical gas regulation, and heavy-duty pipeline automation. Operating advanced metallurgical foundries and precision CNC machining cells in Ahmedabad, Gujarat, we are India's leading manufacturer, supplier, and global exporter of high-integrity Double-Offset Eccentric Disc Butterfly Valves.

Our high-performance quarter-turn assets are engineered to provide tight mechanical isolation and long service life under high velocities, thermal gradients, and fluctuating pipeline pressures. From our manufacturing hub in Ahmedabad, we seamlessly satisfy critical infrastructure projects across Indiaincluding Vapi, Surat, Gandhidham, Kutch, Ankleshwer, Bharuch, Mumbai, Pune, Thane, and Chennaialongside fast-tracked international maritime freight lines for global project export.

Technical Specifications & Compliance Architecture

FlowBiz Double-Offset Butterfly Valves are engineered strictly in accordance with API 609 Category B (High-Performance) and AWWA C504 specifications. The dual eccentric geometry minimizes seat friction during operation, significantly reducing the torque required to stroke the valve and extending the operational life of the elastomeric or polymer seal.

Core Engineering Features & Design Advantages

1. Cam-Action Double Eccentric Disc Geometry

Standard concentric butterfly valves suffer from continuous friction between the disc edge and the soft seat across the entire 90 travel path, which leads to localized seat tearing and regular pipeline leakage. The FlowBiz Double-Offset Design features two distinct structural offsets:

• First Offset: The shaft centerline is displaced behind the horizontal sealing plane of the valve seat.

• Second Offset: The shaft centerline is offset laterally from the vertical centerline of the pipe bore.

This double eccentric configuration creates a true cam-action travel path. The disc lifts cleanly out of the seat within the first few degrees of rotation, completely eliminating sliding friction, lowering operating torque, and maximizing seal longevity.

2. High-Performance Lip Seal & Replaceable Seat Matrix

Our high-performance valves feature an advanced lip seal design. This profile uses internal line pressure to mechanically energize the sealing lip against the disc edge, achieving a tight shut-off at both low and high differential pressures. The seats are fully replaceable, allowing plant maintenance teams to renew the sealing element without scrapping the entire valve assembly, reducing long-term maintenance costs.

3. Cryogenic and Thermal Versatility

From high-temperature processing loops up to 10 bar to specialized sub-zero cryogenic valve application states, our advanced stainless steel casings maintain structural elasticity and tensile mass. Sourcing specialized polymers like Viton, Silicon, or reinforced PTFE allows these assets to function reliably across severe temperature fluctuations, preventing thermal locking and safeguarding process continuity.

4. Flexible Actuation Topworks with 12-Month Warranty

FlowBiz butterfly valves feature an integrated ISO structural topworks platform. For standard manually operated loops, the valve can be equipped with an ergonomic multi-notch Hand Lever or a fully enclosed weather-proof Worm Gearbox. For automated systems, the valve direct-couples to Pneumatic Actuators or high-torque Electric Motors. Each unit is backed by a 12-month factory warranty, ensuring robust after-sales support and technical assistance.

Strategic Industrial Processing Applications

FlowBiz double-offset eccentric butterfly valves are specified across high-velocity processing networks:

• Industrial Manufacturing & Chemical Processing: Regulating and isolating aggressive process water, chemical reagents, wash solvents, and neutral fluid lines.

• Water Treatment & Distribution Utilities: High-capacity municipal water distribution, industrial reverse osmosis networks, and wastewater treatment filtration loops.

• Cryogenic & Gas Utility Manifolds: Safe isolation and control of low-temperature liquified gases, compressed utility air, and nitrogen headers.

• HVAC & Plant Cooling Water Loops: Managing high-volume condenser water loops, cooling tower basins, and commercial facility climate management headers.

Frequently Asked Questions (FAQ)

Q: Why do industrial high-performance butterfly valves start at a 2-inch nominal size rather than smaller options?

A: Small-bore pipelines (below 2 inches) feature very narrow internal cross-sectional areas. Because a butterfly valve's disc sits directly inside the middle of the fluid stream even when fully open, putting a disc and heavy-duty shaft assembly inside a micro-bore line would restrict the fluid path and cause massive head loss. For pipelines below 2 inches (50mm), FlowBiz Full-Bore Stainless Steel Ball Valves or Globe Valves must be selected to preserve proper fluid velocity and pressure profiles.

Q: What is the primary functional benefit of an offset disc design over a standard wafer butterfly valve?

A: Standard concentric wafer valves keep the disc in continuous mechanical contact with the rubber seat during operation, which creates high friction, causes rapid wear, and increases operating torque. An Offset Disc High-Performance Valve lifts the disc out of the seat almost instantly upon opening due to its dual eccentric design. This cam-action movement eliminates sliding wear, yields a reliable tight seal, lowers the required manual torque, and enables the valve to safely handle higher pressure classes (such as Class 150# and 300#).

Q: How do engineers choose between Wafer and Lug-type body connection configurations?

A: Selection depends entirely on your mechanical pipeline layout and maintenance requirements:

• Wafer Profile: The slimmest, most lightweight design. It is held in place clamped between two pipeline flanges using long all-thread bolts that span the entire width of the valve body, making it ideal for compact spaces.

• Lug Profile: Incorporates independent threaded metal casings matching the bolt pattern of the pipe flange. This allows for dead-end service, meaning plant technicians can isolate and disconnect the downstream piping for maintenance while keeping the upstream side fully pressurized.

Q: Why is Stainless Steel (CF8M/SS316) preferred over standard Carbon Steel for chemical and utility water lines?

A: Standard carbon steel is highly effective for dry gases and oils but will rust and pit quickly when exposed to moisture, aerated water, or chemical vapors. ASTM A351 CF8M Stainless Steel contains chromium, nickel, and molybdenum. This metallurgy provides superior resistance to localized pitting, galvanic corrosion, and scaling, ensuring that the valve body and internal disc remain smooth and structurally sound over decades of service.

Q: How can project engineering and procurement teams in Ahmedabad coordinate a bulk factory quote?

A: Sourcing can be initiated by contacting our corporate sales headquarters in Ahmedabad, India. Our application engineering division will guide you through a comprehensive technical consultationassessing your precise nominal pipeline diameters (2" to 24"), preferred end connection profiles, operating temperature spectrums, fluid properties, and actuation needsto deliver a certified technical submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you designing a high-velocity utility water matrix or upgrading an automated chemical process manifold? Contact our Ahmedabad sales and engineering office today to receive comprehensive technical sheets, certified structural layouts, and an itemized commercial proposal.
