High-Performance Severe-Service Metal-Seated Ball Valves | FlowBiz Valves

FlowBiz Valves is a premier, engineering-driven manufacturer, supplier, and global exporter of high-precision Metal-Seated Ball Valves in India. Operating from our core commercial and logistical hub in Mumbai, Maharashtra, we engineer these heavy-duty valves specifically for critical process applications, high-temperature loops, aggressive chemical corrosion, high-velocity particulate abrasion, and thick slurry handling.

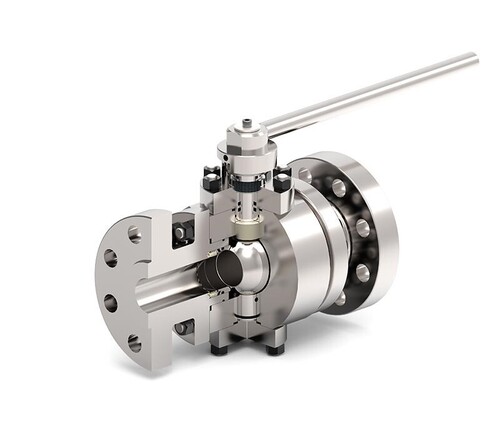

When standard soft-seated valves fail due to thermal degradation or mechanical tearing, plant safety, productivity, and profitability are heavily compromised. The FlowBiz metal-seated ball valve line is engineered to outshine in these demanding environments, utilizing robust metal-to-metal contact between a micro-polished ball and hard-faced metallic seats to maintain an absolute tight seal under severe industrial conditions.

Technical Specifications & Compliance Matrix

Our severe-service metal-seated series is precision-machined from fully certified alloys and verified against strict international engineering codes:

Advanced Metal Seat Surface Engineering

Direct metal-to-metal contact under high pressures and extreme temperatures naturally risks mechanical galling, binding, and rapid friction wear. To eliminate this issue and achieve extreme hardness, FlowBiz coats the internal trim parts with advanced thermal spray materials:

1. Tungsten Carbide & Stellite Hard-Facing

The sealing interfaces of the ball and seat rings are fused with advanced alloys such as Tungsten Carbide, Stellite, or Alloy 6. Applied using automated high-velocity oxygen fuel (HVOF) or plasma arc welding systems, these overlays elevate the surface hardness up to an exceptional 60 HRC (Rockwell C).

2. High Abrasion & Slurry Immunity

This ultra-hard metallic shell provides an impenetrable barrier against high-velocity scrubbing action, pipeline scale, and suspended catalyst particulates. Instead of eroding the seating line, the valve shears through thick slurries, viscous oils, and aggressive chemical crystal build-ups without damaging the underlying substrate.

3. Matched Mechanical Lapping

Following the coating process, each individual ball and matching seat ring are meticulously lapped together as a unique matched set. This eliminates microscopic surface imperfections, ensuring smooth turning mechanics, low breakout torque, and a reliable Class VI bubble-tight seal for water, oil, gas, and chemicals.

Integrated Safety & Enclosure Engineering

Fire-Safe Containment & Anti-Static Performance

Essential for petrochemical, refinery, and fuel-transfer loops handling volatile or flammable media. If a major facility fire breaks out, our fire-safe construction ensures complete process isolation is maintained even under intense flame exposure. Furthermore, the internal components are fitted with anti-static grounding devices to safely dissipate friction-induced electrostatic charges, preventing accidental sparks.

Anti-Blowout Stem Architecture

To safeguard on-site operators, the valve stems are engineered with an internal, bottom-entry mechanical shoulder. Under sudden pressure spikes, fluid surges, or severe thermal expansion up to 425C, it is physically impossible for the stem to eject or blow out from the valve casing.

Protective External Shields

Before final factory clearance, the outer raw valve boundaries are treated with advanced chemical-resistant finishesincluding high-durability epoxy powder coatings, specialized high-temperature paints, or surface passivation. This barrier insulates the valve against atmospheric oxidation, coastal salt humidity, and corrosive chemical vapors, maximizing the equipment's overall working life.

Flexible Configuration & Operational Controls

• Bore Layout Optimizations: Choose Full Bore to ensure an unrestricted, straight-through fluid path with negligible pressure drop (P)essential for thick slurries or viscous fluids. Choose Reduced Bore for clean utility lines where minor flow restriction is acceptable, helping optimize space, component weight, and procurement costs.

• Versatile Connectivity: Easily integrates with varied international piping standards via Flanged Raised Face (RF), Ring Type Joint (RTJ), Threaded/Screwed, Socket Weld (SW), or Butt Weld (BW) end connections.

• Modular Top Works: Built ready to interface with manual hand levers, heavy-duty mechanical gearboxes, or automated pneumatic and electric actuators for remote SCADA monitoring and quick plant shutdowns.

Frequently Asked Questions (FAQs)

Q: Why is a Class VI leakage certification critical for metal-seated ball valves?

A: Leakage Class VI represents the highest standard of manufacturing shut-off integrity, requiring an absolute bubble-tight seal with zero measurable fluid weepage. In high-pressure, severe-service processing lines handling toxic chemicals or high-temperature gases, achieving a Class VI seal prevents internal cross-contamination between different process segments, protects downstream operators, and eliminates expensive product loss.

Q: When should I select a Trunnion-Mounted ball configuration over a Floating type?

A: * Floating Ball Type: Best suited for low-to-medium pressure applications in smaller line sizes. The ball is supported by the seats and shifts slightly downstream under pressure to seal against the downstream seat.

• Trunnion-Mounted Type: Mandatory for high-pressure systems, larger sizes, or lines with heavy thermal cycling. The ball is rigidly anchored by top and bottom bearings, which absorb the heavy fluid thrust. This protects the internal seats from deformation and significantly reduces the torque required to operate the valve.

Q: What is the benefit of an epoxy powder-coated finish for industrial valves?

A: Industrial processing plants often expose equipment to harsh atmospheric conditions, ambient chemical fumes, and regular washdowns. An epoxy powder coating is electrostatically applied and cured under heat to form a thick, resilient outer shield. This layer offers superior chip, scratch, and corrosion resistance compared to standard paint, preventing rust and keeping the valve body sound over years of service.

Q: Why choose FlowBiz as your trusted metal-seated ball valve partner in Mumbai?

A: FlowBiz Valves balances rigorous metallurgical precision with strict compliance to global testing standards like API 598, FCI-702, and BS EN 12266-1. By verifying 100% of our production lines for zero-leakage pressure containment before export packing, we eliminate reliability concerns in the field. Our capacity to handle specialized hardfacings like Tungsten Carbide and Stellite, paired with flexible end connection options, makes us a highly dependable supply chain partner for critical process installations worldwide.
