FlowBiz Valves is a globally recognized manufacturer, supplier, and exporter of high-performance Multiport Ball Valves in Gandhidham, Gujarat, India. Engineered to manage intricate fluid routing with precision, our multiport series eliminates the need for multiple independent shutoff valves and redundant piping configurations.

By integrating multi-directional flow channels into a single high-efficiency unit, FlowBiz multiport ball valves streamline system design, reduce spatial footprints, and drastically lower overall engineering procurement costs.

We maintain high-volume inventory and rapid distribution lines across major economic hubs, including:

• Gujarat: Gandhidham, Kutch, Ahmedabad, Vapi, Valsad, Surat, Ankleshwar, Bharuch.

• Maharashtra: Mumbai, Pune, Thane, Nashik, Aurangabad, Satara, Sangli, Nagpur, Kolhapur.

• Pan-India & Global Markets: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and major export destinations worldwide.

Technical Specifications & Manufacturing Range

Our Gandhidham manufacturing plant utilizes advanced metallurgy and strict geometric tolerances to deliver one of the most versatile multiport valve lines in the industry:

Flow Configurations: Understanding 3-Way and 4-Way Fluid Routing

Multiport valves are highly sophisticated flow-diversion instruments. FlowBiz offers distinct internal ball drillings to achieve specific directional processes:

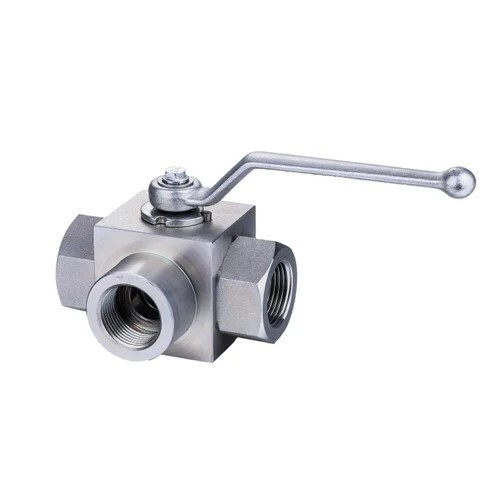

3-Way Flow Control

• L-Port (Diverting Valve): Commonly used to divert flow from a single common inlet port to one of two alternative outlet pipelines. It can isolate one line completely while opening the other, but cannot connect all three ports simultaneously.

• T-Port (Mixing or Blending Valve): Highly versatile; it can connect all three ports together to mix two different media streams into a single outlet, split a single stream across two lines simultaneously, or act as a standard straight-through block valve.

4-Way Flow Control

• Ideal for complex processing circuits requiring simultaneous media block-and-bleed configurations, loop reversals, or shifting fluid streams across four independent pipelines (e.g., swapping back-and-forth between dual filtration loops without halting production).

Key Advantages of FlowBiz Multiport Valves

1. Modular Architecture & High Component Interchangeability

FlowBiz design philosophy prioritizes plant cost-efficiency. Our multiport valves feature highly convertible internal components. Seats, seals, and stem assemblies can be swapped across matching sizes and models, minimizing spare-parts inventory overhead for your maintenance teams.

2. High Corrosion Resistance & Mirror Polished Finish

Every stainless steel or nickel-alloy valve body receives a precision mechanical polish or protective finish. Paired with high-grade virgin or reinforced PTFE seats, our valves are highly resilient against aggressive industrial acids, raw hydrocarbons, moisture, and chemical washes under normal operating temperature limits.

3. Reduced Piping Complexity & Friction Profile

By executing multi-way transitions within a single valve body, you remove extra T-junctions, elbows, and secondary block valves from the pipeline. This reduces the number of potential external leak paths and lowers overall fluid turbulence. Full bore options ensure the internal diameter matches your pipe perfectly, maintaining optimal flow kinetics and minimizing pressure drops.

4. Simplified Mounting & Automation Compatibility

Every multiport valve is manufactured with an integrated top-works mounting pad conforming to ISO 5211 standards. This features standardized bolt configurations for quick, direct coupling with manual levers, mechanical gear operators, pneumatic cylinders, or electric automated control systems.

Frequently Asked Questions (FAQs)

Q: What is the main structural difference between a block-style full port and a standard port multiport valve?

A: A block-style full port valve features an internal ball bore that matches the connected pipe's interior diameter exactly, ensuring zero flow restrictionideal for high-viscosity fluids or heavy volumetric lines. A standard port valve features an internal bore that is slightly smaller than the pipe diameter; this creates a compact, lightweight, and economical valve footprint that is perfect for compressed air, gases, and clean utility lines where minor pressure variations are acceptable.

Q: Can FlowBiz customize different end connections on a single multiport valve?

A: Yes. This is a unique advantage offered by FlowBiz Valves. For example, if your process system transitions from a flanged manifold down to a threaded utility line, we can manufacture a single 3-way valve featuring one flanged inlet and two threaded outlets, eliminating the expense of extra adapter fittings.

Q: What routine field maintenance is required to ensure a Class VI bubble-tight seal?

A: Because multiport valves manage intersecting flow channels, maintaining clean internal surfaces is critical. We recommend periodic visual inspections of the polished exterior, checking body bolt torques, and occasionally flushing the line to remove trapped particulates. Proper lubrication of moving mechanical parts ensures the quarter-turn (360 degree) action remains smooth and low-torque.

Q: Why is FlowBiz considered a leading multiport valve manufacturer in Gandhidham?

A: FlowBiz Valves blends regional manufacturing agility in Gandhidham with rigid global quality assurance frameworks. Every single multiport valve is subjected to exhaustive hydrostatic, pneumatic, and multi-directional seat validation testing according to API 6D and BS 5351 prior to packaging. Our capacity to cast advanced alloys like high-nickel steel and process custom sizing configurations up to 24 inches makes us a highly reliable supply chain partner for both domestic infrastructure and international heavy-industry contracts.
