API 609 Industrial Ductile Iron Butterfly Valves FlowBiz Bhavnagar

Welcome to FlowBiz Export Private Limited, a globally recognized engineering authority for space-saving fluid isolation, high-volume flow regulation, and durable utility pipeline networks. Operating precision automated foundries, multi-axis CNC machining complexes, and certified hydrostatic compliance test bays in Bhavnagar and Ahmedabad, Gujarat, we stand as India's premier manufacturer, supplier, and global B2B exporter of industrial Ductile Iron Butterfly Valves.

Our high-performance quarter-turn rotary butterfly valves are made with state-of-the-art engineering to replace bulky gate and globe valves, offering multiple ON/OFF or throttling operations in more extensive pipelines. From our primary coastal production and logistics center in Bhavnagar, we seamlessly support critical processing networks across India's key industrial corridorsincluding Rajkot, Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur, Indore, Dewas, Bhopal, Chennai, Coimbatore, and Salembacked by immediate access to maritime shipping networks for streamlined global project export.

Technical Specifications & Compliance Parameters

FlowBiz Butterfly Valves utilize a central disc element that rotates 90 degrees around a high-tensile internal shaft. The disc opens and closes with a low-torque rotation of 90 degrees and works for any compatible application. Because the disc takes up minimal face-to-face space compared to parallel wedges, our butterfly series tends to cost less and is lighter in weight, making it the preferred selection across global utility layouts.

Strategic Engineering Advantages of FlowBiz Valves

• Compact Design & Reduced Footprint: Our high-performance compact design requires considerably less space compared to other valves like gate or globe configurations. This makes them ideal for tight utility manifolds, structural modular skids, and narrow pipeline corridors.

• Light in Weight: The slim face-to-face dimension ensures each unit is highly cost-effective and light in weight. This drastically cuts down on the need for heavy, expensive structural pipe hangers and simplifies field handling for maintenance technicians.

• Quick & Efficient Operation: Featuring an optimized quarter-turn configuration, this quick operation requires less time to open or close compared to slow multi-turn valves. This enables rapid line isolation during critical process updates or emergency plant shutdowns.

• Massive Scale Options: Sourced directly from our automated foundry networks, our valves are available in huge sizes to support large-scale water treatment loops, cooling system headers, and raw civic intake lines without sacrificing structural performance.

Core Engineering Features & Design Advantages

1. Robust Ductile Iron Body Construction

To meet demanding industrial demands and ensure reliable quality, our valve bodies are cast from high-grade ductile iron. This material provides excellent tensile strength, high toughness, and superior resistance to physical impacts or water hammer when compared to standard gray cast iron. This robust build guarantees that each valve withstands medium pressure and harsh operating conditions without cracking under pipeline stress.

2. High-Visibility White Finish for Easy Inspection

Industrial facilities can be dark and crowded, making it difficult to spot pipeline issues early. Our valves are finished with a specialized, high-durability white finish that facilitates easy inspection. This clean background makes it easy for plant technicians to quickly spot external leaks, chemical deposits, or atmospheric corrosion during routine walkthroughs, supporting safer and more efficient maintenance routines.

3. Exceptional Wear and Corrosion Resistance

Our round-shaped rotary valves feature premium stainless steel or treated ductile iron disc blades paired with integrally molded elastomeric seat liners (such as EPDM, Nitrile, or Viton). This choice of materials eliminates metal-to-metal rubbing along the sealing boundary, providing excellent resistance to wear and corrosion. This is crucial for maintaining uninterrupted industrial operations and preventing internal process fluid bypass.

4. Direct Manual Operation for Reliable Flow Control

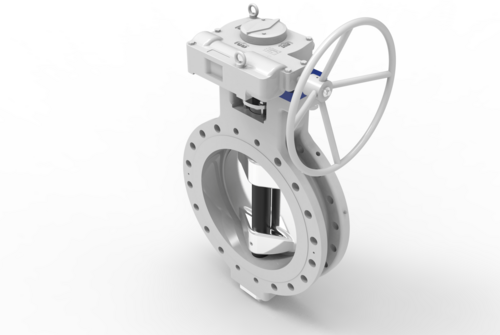

Equipped with an ergonomic manual hand lever or an enclosed worm gearbox, our valves offer simple, reliable manual operation. The manual power source allows for quick and precise control without reliance on external energy or complex automated air lines. This independent mechanical drive lowers your initial capital costs and provides full operational control during power outages.

Strategic Cross-Industry Applications

FlowBiz high-performance ductile iron butterfly valves are specified across primary industrial loops:

• Water Management Infrastructure: Municipal water supply systems, reverse osmosis (RO) pre-filtration arrays, water treatment facilities, and agricultural irrigation networks.

• Process Manufacturing Industries: Coolant water supply lines, factory utility wash headers, non-corrosive chemical processing units, and food processing lines.

• Pneumatic Utility Air Systems: Central compressed air headers, large-bore blower distribution paths, low-pressure ventilation systems, and industrial exhaust ducts.

• Bulk Processing Operations: Conveying non-potable utility fluids, tank farm distribution grids, and wastewater treatment discharge pipelines.

Frequently Asked Questions (FAQ)

Q: When should an engineer specify a ductile iron butterfly valve over a standard cast iron valve?

A: Standard cast iron is strong under compression but can be brittle under high mechanical shock, severe pipe vibration, or rapid thermal shifts, which can cause the metal to crack. Ductile iron is recommended for applications requiring strength, toughness, and corrosion resistance. Its internal graphite structure is spherical rather than flake-form, allowing the metal to bend slightly without fracturing under pressure. This makes it highly suitable for medium-pressure environments and critical industrial settings where long-term durability is paramount.

Q: What advantages does a manual quarter-turn valve offer over an automated control valve?

A: Manual butterfly valves are simple to operate and maintain. They require no external electrical wiring, positioners, or compressed air supplies, which eliminates instrument calibration concerns and lowers ongoing upkeep costs. They can be quickly adjusted by an operator, making them the ideal choice for utility lines, bypass arrays, and applications where control is occasionally needed but high automation is unnecessary.

Q: What is the step-by-step manufacturing process for a FlowBiz butterfly valve in Bhavnagar?

A: Our butterfly valves are manufactured using precision casting and machining of ductile iron in our automated foundries. The cast bodies are precision-machined on advanced CNC equipment to guarantee tight sealing tolerances. The components are then treated with our signature high-durability white finish coating and assembled with premium elastomeric seats and shafts. Finally, each valve undergoes rigorous leak-proof hydrostatic and pneumatic testing before supply to ensure absolute field reliability.

Q: What is the recommended method for installing a wafer or lugged butterfly valve between flanges?

A: Proper mechanical alignment is essential to prevent pinching the seat liner:

• Clean the matching pipeline flanges thoroughly to remove dirt, grit, and welding slag.

• Turn the manual lever slightly to leave the valve disc partially open, keeping it safe inside the body shell during installation.

• Slide the round body cleanly between the pipe flanges, ensuring the extended seat face lines up perfectly with the pipe diameter without separate gaskets.

• Insert standard industrial bolts and tighten them progressively using a torque wrench in an alternating cross-star pattern to distribute clamping forces evenly, achieving a secure and leak-proof fit.

Q: How can project procurement managers and engineers coordinate factory-direct quotes?

A: Sourcing can be initiated by contacting our corporate sales division and engineering headquarters in Bhavnagar, India. Partnering with us ensures a reliable supply, consistent quality, competitive pricing, and comprehensive customer support. Our technical application staff will guide you through a comprehensive selection processassessing your precise line sizing requirements (from 2" up to huge large-bore arrays), required pressure classification, wetted process fluid chemistry, and preferred manual drive (Gear vs. Handle)to deliver a certified product submittal data sheet and an itemized commercial proposal with factory-direct B2B pricing.

Are you optimizing a large-scale municipal water treatment plant or upgrading a medium-pressure utility line in a chemical facility? Contact our Bhavnagar sales and engineering office today to guide your project forward, or ask a specific question regarding your piping configuration below.
