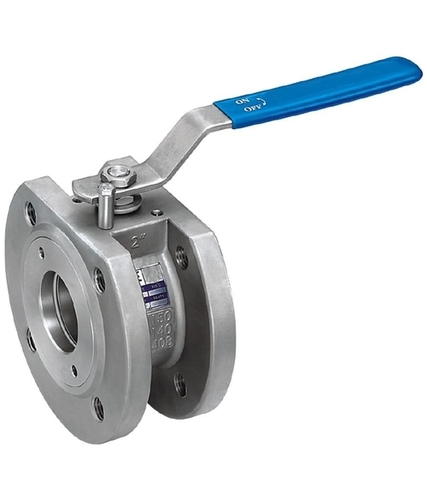

FlowBiz High-Performance Wafer-Type & Flanged Ball Valves Compact Pipeline Isolation

Welcome to the engineering authority for space-saving fluid containment, low-profile process routing, and high-integrity pipeline isolation. Operating advanced multi-axis CNC turn-mill centers, precision spherical-lapping cells, and certified pressure-boundary validation corridors, FlowBiz Exports specializes in manufacturing premium-grade Stainless Steel Wafer-Type and Flanged Ball Valves.

Engineered primarily for reliable, rapid ON/OFF fluid interruption rather than continuous throttling control, our stainless steel ball valves are designed to completely cut off or open the flow of liquids and gases within tight piping footprints. By clamping directly between matching pipeline flanges, the ultra-slim wafer body profile eliminates excess structural weight, minimizes face-to-face space requirements, and provides a dependable, leak-proof seal across demanding processing grids.

Technical Specifications & Compliance Parameters

Every FlowBiz production lot is precision-machined and subjected to 100% rigorous high-pressure hydrostatic shell testing, pneumatic seat leakage profiling, and anti-static torque calibration under global validation benchmarks.

Kinematics & Advanced Stem Safety Mechanics

The performance edge of the FlowBiz stainless steel ball valve relies on advanced internal safety engineering and a highly streamlined sealing profile:

1. Anti-Blowout Stem Structural Safety

Traditional stems inserted from the top works can become a safety hazard if internal pipeline pressure spikes unexpectedly, potentially launching the stem out of the packing box. FlowBiz eliminates this risk by using an Anti-Blowout Stem design. The stem is inserted from the inside of the valve cavity, featuring an integral, oversized machined shoulder base. If internal line pressures rise sharply, the pressure pushes the shoulder up against the internal body casting, forming a tighter mechanical seal and preventing the stem from blowing out.

2. Zero Holdup Cavity Optimization

Standard ball valves feature large internal voids around the spherical core where stagnant process fluids can pool, settle, or ferment. In our specialized zero holdup layouts, the cavity surrounding the ball is filled with form-fitting polymer seats. This configuration ensures that media flows straight through without collecting or degrading inside the valve body, making it ideal for paints, resins, and food-grade processes.

          OPEN POSITION (STRAIGHT-THROUGH CLEARWAY)          CLOSED POSITION (ANTI-BLOWOUT SHOULDER SECURE)

                       [ ISO 5211 ACTUATOR PAD ]                      [ INTEGRAL BLOWOUT SHOULDER ]
                                    ||                                             ||
                                    \/                                             \/
                        +------------------------+                     +------------------------+
                        | Internal Bottom Entry  |                     | Internal Bottom Entry  |
                        | Anti-Blowout Stem Axis |                     | Anti-Blowout Stem Axis |
                     +--+------------------------+--+                 +--+------------------------+--+
                     |  [ ZERO HOLDUP HOUSING ]   |                 |  [ COMPRESSED SEALS TIGHT ]|
                     |       /---|  |---\        |                 |     /================\   |
 ===================>|      | Polished   |       |================>|====>| Polished Solid |<====| High-Pressure Gas
 Process Liquid /    |      | Bore Core  |       | Minimal Drop    |     | Sphere turned  |     | Completely Held
 Gas Inflow Stream   |       \---|  |---/        | Straight Flow   |     | 90 Degrees     |     | Bubble-Tight
                     +----------------------------+                 +-----+----------------+-----+
                        | Ultra-Slim Wafer Shell |                     | Ultra-Slim Wafer Shell |
                        +------------------------+                     +------------------------+

Core Engineering Features & Plant Benefits

• Interchangeability of Spares: Internal componentsincluding our polished stainless steel balls, anti-blowout stems, thrust washers, and soft seatsare fully standardized. This allows maintenance teams to quickly swap out worn parts on-site, minimizing spare parts inventories and reducing plant downtime.

• Compact, High-Strength Design: The ultra-slim wafer body profile fits snugly between standard pipeline flanges. This design minimizes structural face-to-face dimensions, cuts down overall system weight, and simplifies installation in tight piping manifolds.

• Wide Thermal Operational Window: Built with premium-grade stainless steel castings and high-purity polymer liners, these valves retain high mechanical strength and sealing integrity from -40F up to 392F.

• Excellent Corrosion Resistance: The high-purity stainless steel alloy body resists pitting, crevice corrosion, and chemical oxidation, ensuring a long, reliable service life even when handling aggressive industrial fluids.

Strategic Industrial Application Sectors

• Chemical Processing & Fine Reagents: Controlling the interruption of organic solvents, dilute acids, process water loops, and volatile chemical mixtures.

• Water Treatment & Desalination Infrastructure: Managing high-velocity utility pump lines, filtration backwash grids, and municipal distribution loops.

• Air, Gas, & Nitrogen Utility Systems: Providing reliable bubble-tight shut-off for compressed plant air, nitrogen gas blanketing, and vacuum service networks.

• Process Industries & Pigment Blending: Handling viscous fluids, light paint slurry batches, and media where raw materials cannot be allowed to trap or settle.

Frequently Asked Questions (FAQ)

Q: How can I select the right wafer type ball valve for my application?

A: Choosing the appropriate valve requires matching the process mediawhether it is air, liquid, or gaswith your pipeline's maximum operating pressure and thermal profile. You must also verify chemical compatibility between the fluid and the valve components. Our technical sales team is available to help you select the ideal combination of stainless steel alloys and specialized seat materials for your project.

Q: What are the primary benefits of using stainless steel wafer type ball valves?

A: Stainless steel provides outstanding resistance to chemical corrosion, scaling, and environmental weathering, while maintaining high structural integrity under intense mechanical stress. The ultra-slim wafer layout provides a light, space-saving valve configuration that lowers piping strain and cuts down overall installation and material costs.

Q: Where can these wafer type ball valves be installed?

A: These valves can be installed across any industrial pipeline requiring reliable, rapid fluid isolation. They are widely used in chemical refineries, wastewater treatment facilities, food processing plants, and commercial HVAC building loops. Their compact design lets them bolt directly between standard pipeline flanges, making them easy to integrate into tight spaces and complex equipment skids.

Q: What is the manufacturing process for these valves?

A: Production begins with sourcing high-grade, certified stainless steel casting heats. The valve components are precision-machined on multi-axis CNC tooling centers to ensure tight, repeatable tolerances. Once assembled, every single valve undergoes strict hydrostatic shell testing and pneumatic seat containment validation to guarantee full compliance with global API and ASME quality standards.

Q: When is routine maintenance required for these ball valves?

A: We recommend setting up a schedule for periodic visual checks and manual cycling, especially in lines facing high fluid velocities, abrasive particulates, or continuous thermal cycling. Routine maintenance typically involves checking for external weeping at the packing box, verifying body-flange joint seals, and confirming that the manual lever or automated actuator operates smoothly.

Q: How are these valves used in different types of media control?

A: These valves are designed to completely shut off or fully open the flow path inside a pipeline via a quick quarter-turn handle or automated actuator. While they are highly effective for rapid isolation, they are generally not recommended for precise, continuous throttling, as prolonged partial opening can cause high-velocity media to erode the soft polymer seats.

Are you designing a compact chemical process manifold that requires an ASME Class 150 wafer ball valve with an anti-blowout stem, or retrofitting a gas utility header in Kheda that demands an ultra-slim stainless steel configuration with zero cavity holdup? Contact our technical sales division in Kheda, India today to secure a factory-direct quote, or ask a single relevant question regarding your specific line pressure or fluid velocity parameters below to guide the conversation forward.
