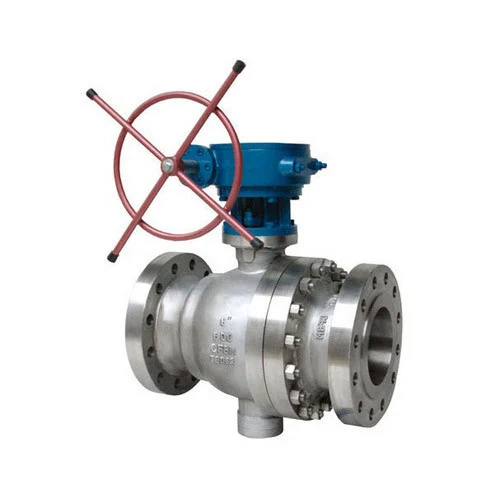

FlowBiz Severe-Service Trunnion-Mounted Ball Valves High-Pressure Isolation

Welcome to the engineering authority for severe-service fluid containment, automatic overpressure management, and high-differential mainline isolation. Operating advanced multi-axis CNC horizontal machining complexes, precision spherical-lapping cells, and API-certified high-pressure test corridors, FlowBiz Exports specializes in manufacturing premium-grade Trunnion-Mounted Ball Valves.

When pipelines experience massive pressure shocks, deep thermal cycling, or high-velocity flows, traditional floating ball valves can experience excessive operating torque and seat distortion. The FlowBiz Trunnion-Mounted Ball Valve resolves these issues by anchoring the polished sphere on fixed upper and lower mechanical bearings. This layout absorbs the pipelines kinetic energy and fluid thrust directly through the valve frame, allowing the valve to open smoothly even under full differential line pressure, with minimal downstream pressure.

Technical Specifications & Compliance Parameters

Every FlowBiz trunnion production block is subjected to 100% rigorous high-pressure hydrostatic testing, DBB verification audits, and API-compliant fire-safe certification checks before factory release.

Kinematics & Severe-Service Trunnion Mechanics

The operational reliability of our trunnion-mounted valve relies on splitting pipeline loads between fixed mechanical bearings and floating, pressure-energized seat rings:

 OPEN FLOW POSITION (FIXED AXIS CORE) CLOSED SHUT-OFF STATE (TRUNNION LOAD TRANSFER) [ ISO 5211 TOP FLANGE ] [ EMERGENCY SEALANT PORT ] \/ \/ +------------------------+ +------------------------+ | Pressure-Energized Stem| | Double Body Joint Seals| +--+------------------------+--+ +--+------------------------+--+ | [ FLOATING SEAT RINGS ] | | [ LINE FORCES ABSORBED ] | | /---| |---\ | | /================\ | ===================>| | Fixed Upper| |================>|====>| Seat presses | | Upstream Fluid High-Velocity Line | | Trunnion | | Full-Bore Flow | | into ball; core| | Drives Floating Fluid Inflow Stream | | Bearing | | Zero Pocket Drop| | held rigid by | | Seat Ring into | \---| |---/ | | | lower bearing | | Bubble-Tight Seal +-------------------------+ +-----+==============+-----+ | Fixed Lower Trunnion | | Lower Anchor Bearing | +------------------------+ +------------------------+

• Internal Trunnion Bearing Anchoring: The ball core features integrated upper and lower shaft stems that rotate inside heavy-duty, low-friction sleeve bearings. Because the ball is held rigidly in place along its vertical axis, the incoming fluid pressure cannot push it downstream. This prevents high torque spikes and keeps the valve easy to cycle under full high-pressure differentials.

• Spring-Loaded, Pressure-Energized Seats: Unlike floating ball valves where the ball shifts against the seats, a trunnion design features spring-loaded seat assemblies that float independently. At low line pressures, mechanical coil springs push the seat rings firmly against the ball. As line pressure rises, the fluid flows behind the seat ring, utilizing the pipeline pressure to automatically tighten the seal against the ball.

• True Double Block and Bleed (DBB) Performance: When the ball is closed, both the upstream and downstream seats seal independently against the ball core. Trapped fluid inside the center body cavity can be safely drained or vented through an integrated port. This allows operators to confirm seal integrity or inspect the line safely while the pipeline remains under full operational pressure.

• Emergency Sealant Injection Ports: For critical services, the body housing is equipped with auxiliary check-valves and channels that trace directly to the stem and seat rings. If internal scaling or debris accidentally score the primary sealing faces during an emergency, maintenance crews can inject synthetic sealant directly into the ports to establish a temporary bubble-tight backup seal.

Core Engineering Features & Plant Benefits

• Double Seals on Body Joints: Utilizes a dual-layer sealing system (such as an elastomeric O-ring paired with a secondary fire-safe graphite gasket) across all body-to-end-cap connections to completely eliminate external leak paths.

• Integrated Anti-Static Devices: Built-in grounding springs maintain permanent electrical continuity between the body, ball, and stem, preventing static electricity discharge hazards when routing volatile gases or fuels.

• Wide Thermal Tolerance Window: Specially engineered to function efficiently across severe thermal shifts from -40F up to 392F without experiencing mechanical binding or seal breakdown.

• Durable Plain Surface Matrix: The clean, smooth exterior finish resists chemical pitting and prevents atmospheric contaminants from building up, simplifying wash-downs and routine pipeline maintenance.

Strategic Industrial Application Sectors

Our High-Performance Trunnion-Mounted Ball Valves provide critical containment across high-pressure utility and process networks:

• Petrochemical Refineries & Mainlines: Controlling long-distance hydrocarbon pipelines, storage tank farms, and high-velocity oil transmission headers.

• Chemical Processing Complexes: Isolating high-pressure chemical feedstocks, volatile intermediate reagents, and aggressive acid lines.

• Water Treatment & High-Pressure Pumping: Managing high-capacity water transport systems, municipal pump stations, and reverse osmosis desalination manifolds.

• Gas Transmission & Utility Distribution: Regulating high-pressure natural gas headers, compressed air lines, and processing grids.

Frequently Asked Questions (FAQ)

Q: How are trunnion mounted ball valves beneficial for handling wide temperature ranges?

A: Thanks to their heavy-duty stainless steel build, precision-machined trunnion shafts, and independent floating seats, these valves handle thermal expansion and contraction well. This design prevents internal components from jamming or losing seal tension, ensuring reliable operation across extreme thermal cycles from -40F to 392F.

Q: What is the process for installing a trunnion mounted ball valve with flanged ends?

A: Installation is clean and straightforward. The valves integrated flanged ends are aligned squarely with the pipelines companion flanges, a high-pressure gasket is centered between the faces, and high-tensile studs are tightened in an alternating cross-pattern. This creates a secure, leak-proof mechanical joint that distributes line stresses evenly.

Q: Where can these valves be effectively used?

A: These valves are designed for critical, high-pressure utility and process loops routing air, water, liquids, and gases. They are widely specified across oil and gas transmission headers, petrochemical processing lines, chemical refinery manifolds, and large-scale water treatment facilities.

Q: When is it recommended to choose a stainless steel trunnion mounted ball valve?

A: A trunnion-mounted stainless steel valve should be chosen when your application involves high pressure, wide temperature shifts, or corrosive fluids that would quickly wear out common floating valves. They are highly recommended for severe services requiring consistent low operating torque, fire-safe backup seals, and a true Double Block and Bleed configuration.

Q: What are the main benefits of choosing a flanged end connection?

A: Heavy-duty flanged ends provide a rigid connection that stands up well to inline vibration, high working pressures, and thermal stresses. The bolted flanged assembly also simplifies routine maintenance or line updates, as the entire valve can be unbolted and removed without cutting into the pipeline.

Q: How does this valve handle multiple media types?

A: Built with premium-grade stainless steel castings and high-purity internal trims, our trunnion valves offer exceptional resistance to chemical pitting and erosive wear. This robust material selection ensures the valve can safely isolate water, gases, fuels, and chemical solutions without risking material breakdown or seal failure.

Are you updating a high-pressure petrochemical manifold that requires an ASME Class 300 trunnion-mounted ball valve with an integrated ISO 5211 actuator mounting pad, or configuring a gas transmission line in Kheda that demands an API 6D double block and bleed setup? Contact our technical sales and engineering division today to secure a factory-direct quote and quick pricing, or ask a single relevant question regarding your specific system pressure or flow velocity parameters below to guide the conversation forward.
