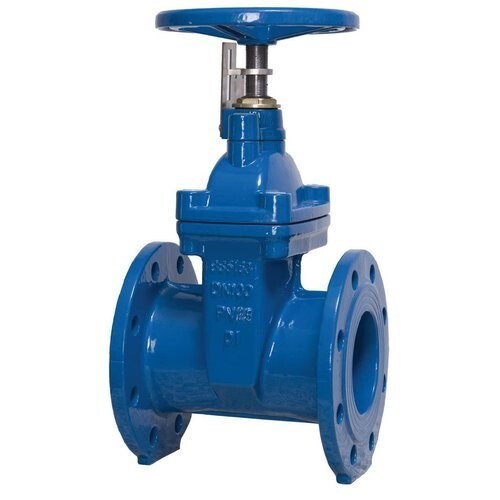

Sluice Gate Valve

What Is a Sluice Valve?

A Sluice Valve, often referred to interchangeably as an industrial gate valve, is a heavy-duty linear-motion isolation device designed to control the flow of media by lifting or lowering a wedge-shaped or solid gate disc perpendicular to the fluid stream.

When the sluice valve is cycled into a fully open position, the gate retreats completely into the valve bonnet, leaving the internal channel unobstructed. Because the disc is entirely removed from the flow stream, it provides near-zero structural resistance, zero boundary turbulence, and minimal pressure drop (P ) across the line.

FlowBiz brand sluice gate valves are engineered specifically for process plants, municipal networks, and heavy utility loops where reliable, straight-through on-off isolation is required.

Technical Specifications & Parameter Matrix

FlowBiz sluice gate valves are cast, machined, and verified to meet strict international standards, ensuring consistent performance in demanding industrial environments.

Salient Engineering Features & Structural Anatomy

1. Full-Bore Design & Cavity-Free Flow

The internal flow channel features a complete, unhindered bore structure. This ensures that thick slurries, waste fluids, and high-velocity process water pass through the valve without hitting internal restrictions. This straight pattern eliminates localized media accumulation and lowers structural friction overheads.

2. High-Temperature Outside Screw & Yoke (O.S. & Y.) Design

Featuring an O.S. & Y. rising spindle architecture with a bolted bonnet layout, the operating threads are kept entirely outside the valve body. This design protects the critical driving threads from corrosive line fluids, sticky media, or extreme thermal loads up to 425C ensuring smooth operation over a long service life.

3. Extra Deep Packing Box with Backseat Facility

To minimize fugitive emissions and keep utility environments clean, the valve features an extra deep packing box that maintains liquid tightness under varying system cycles. Additionally, an integrated backseat facility allows maintenance crews to safely replace the gland packing rings while the valve remains fully open under system pressure, eliminating plant downtime.

Strategic Applications: Why On-Off Isolation Only?

Sluice gate valves are strictly engineered for fully open or fully closed operations and must not be used for fluid throttling or flow regulation.

If a sluice valve is left partially open to restrict flow, high-velocity fluid slams directly against the bottom edge of the suspended gate. This causes severe component vibration ("chatter") and heavy noise, which quickly erodes the fine-lapped sealing faces and ruins the valve's ability to achieve a bubble-tight closure. For continuous fluid regulation or throttling, a specialized globe or triple-offset butterfly valve should be specified.

Comprehensive Quality Validation and National Supply Grid

Operating out of our advanced production facility in India, FlowBiz Exports Pvt. Ltd. serves as a trusted manufacturer, supplier, and exporter worldwide. Every single production lot undergoes strict quality testing at our in-house testing facilityincluding material trace validation, high-pressure hydrostatic shell validation, and pneumatic seat diagnosticsto guarantee excellent performance before field dispatch. We manage swift shipments directly to major industrial hubs, including:

• Gujarat: Mehsana, Rajkot, Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch

• Maharashtra: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, Kolhapur

• Pan-India Corridors: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and all major industrial zones.

Frequently Asked Questions (FAQs)

Q: Why is ductile iron specified over standard gray cast iron for industrial sluice valves?

A: Gray cast iron is brittle and can crack under sudden hydraulic pressure surges or high mechanical stresses. Ductile iron is treated with a magnesium alloy additive during casting, which gives it high tensile strength, elasticity, and impact resistance. This allows the valve body to absorb water hammer shocks and high piping loads safely without risking a catastrophic body fracture.

Q: What is the recommended step-by-step process for installing a flanged sluice valve?

A: 1. Thoroughly clean the faces of both the valve flanges and the pipeline flanges to remove dirt, scale, or welding slag.

2. Align the pipeline piping to ensure it sits parallel with the valve face, preventing alignment stresses.

3. Place a compatible industrial gasket concentrically between the sealing faces.

4. Pass high-tensile fasteners through the bolt holes and tighten the nuts progressively in an alternating star-pattern sequence using a torque wrench to ensure uniform gasket compression and a leak-proof mechanical joint.

5. Manually cycle the handwheel to verify smooth, unhindered operation.

Q: How does the blue polished finish benefit plant operations?

A: Heavy industrial environments feature vast, complex networks of pipelines carrying different media. Coating our high-strength ductile iron valves in a polished blue finish helps field technicians easily identify water handling lines and check compliance with industrial safety codes at a glance.

Q: What routine maintenance maximizes the operational life of an O.S. & Y. sluice valve?

A: Plant technicians should periodically check the tightness of the gland packing nuts to prevent minor weeping, apply a thin layer of high-temperature grease to the exposed rising stem threads to keep the mechanism turning smoothly, and fully cycle the valve open and closed on a regular schedule to clear away scale or sediment accumulation.

Q: What is the process for requesting a technical quotation or ordering custom batches from India?

A: Procurement teams and project managers can contact our sales and engineering desk directly through our official lines. Share your specific project criteriaincluding nominal pipe sizes, fluid chemical composition, operating pressure differentials, temperature variations, and preferred connection profilesto receive a comprehensive, competitive price quotation tailored to your timeline.
