About Single Window Sight Glass

Industrial Single-Window Sight Glasses: Design Dynamics and Quality Standards

In high-pressure utility circuits, refining headers, and continuous chemical processing lines, maintaining an immediate visual audit over internal fluid behavior is a core operational requirement. Field technicians and process engineers must regularly verify fluid presence, check for inline turbidity, note color shifts, and monitor for phase transitions (such as liquid-to-vapor flashing). Visual confirmation serves as an indispensable baseline for verifying automated sensor metrics, diagnosing line fouling, and ensuring steady-state production safety.

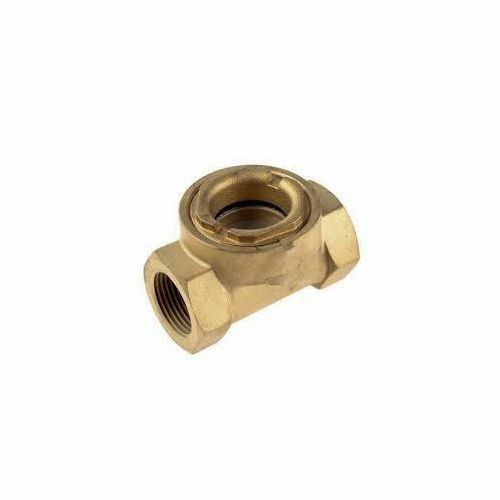

An industrial Single-Window Sight Glass Indicator offers a compact, high-integrity viewport design optimized for localized, unidirectional process observation. Unlike full-view cylindrical indicators that expose a 360-degree glass boundary to external plant impacts, a single-window model houses a heavy, flat glass disc securely inside a rugged metal pressure shell. This setup provides high structural durability and accurate dimensions, shielding the transparent glass element from mechanical pipeline torque and external impacts while delivering excellent visibility.

 Single-Window Fluid Inspection Path [ Pipeline Fluid ] [ Downstream Flow ] (Water/Chemicals) Heavy Metallic Pressure Shell (Verified Continuity) [ Toughened Glass Disc ] (Unidirectional Inspection Viewport) [ Safe Manual Observation ]

FlowBiz Exports is an elite global fluid-handling brand and a trusted Single Window Sight Glass Manufacturer in Gandhidham, Gujarat, India. We focus on precision engineering compact, high-durability viewports designed to deliver reliable performance, leakproof sealing, and long-term process monitoring across heavy global industries.

Technical Specifications & Performance Profiles

FlowBiz single-window sight glasses are cast, machined, and hydrostatically tested to comply with strict international quality norms and pressure-containment frameworks.

Core Product Parameters

Parameter Profile	Technical Specifications & Design Limits
Brand	FlowBiz Exports
Indicator Typology	Single-Window Sight Flow Indicator / Flat Disc Viewport
Internal Metal Component	High-Grade SS 304 Stainless Steel Support Discs
Glass Window Crystal	Heavy-Wall, Heat-Treated Toughened Borosilicate Glass
Thermal Operating Envelope	High-integrity structural safety at temperatures up to 200C
Pressure Containment Profile	Built to satisfy demanding high-pressure process requirements
Dimensional Metrics	Precision-machined for an accurate dimension and a better fix
Customization Framework	Fully customizable port sizes tailored to client pipeline blueprints
Design Configuration	Compact, high-durability manual inspection fitting

Critical Engineering Features & Operational Benefits

1. Robust Single-Window Containment Architecture

By mounting a single, thick toughened glass disc inside a heavy-duty metallic frame, the single-window configuration minimizes the total surface area of glass exposed to the line. This compact structural design delivers exceptional resistance to mechanical line shocks, physical external impacts, and high operational pressures. This provides an extra layer of safety for plant operators compared to fragile full-view indicators.

2. High Corrosion Resistance with SS 304 Discs

Internal process fluids, including high-temperature water loops, hydrocarbons, and aggressive chemical feed streams, can cause rapid surface pitting and oxidation in standard cast metals. FlowBiz addresses this vulnerability by utilizing premium SS 304 stainless steel discs. This high-alloy core provides excellent structural strength, resists chemical attack, and keeps the viewing port free of rust scale, prolonging the operational lifespan of the sight glass.

3. Thermal Shock Resiliency up to 200C

Rapid clean-in-place (CIP) steam purges or sudden process chemical shifts can cause steep thermal gradients inside a pipeline. Our heavy-wall borosilicate inspection windows are engineered to withstand extreme thermal shocks and continuous operating temperatures up to 200C without cracking, ensuring reliable and safe functioning under harsh conditions.

 Strategic Process Deployment High-Integrity Pipeline Installations [ Chemical Processing ] [ Petroleum Refineries ] [ Nuclear Power Skids ] (Reagent Clarity Audits) (Hydrocarbon Color Checks) (Auxiliary Loop Monitoring)

Strategic System & Industrial Applications

Our high-temperature single-window sight glasses provide straightforward, zero-power manual inspection across severe-service sectors:

• Chemical & Petrochemical Processing Facilities: Providing safe visual verification of corrosive chemical lines, aggressive reagents, and raw acid feeds.

• Petroleum Refineries & Oil Headers: Monitoring oil clarity, tracking condensate return flow, and detecting fluid turbulence inside refinery lines.

• Power Generation & Boiler Utilities: Positioned along boiler feed pipelines, cooling loops, and water treatment runs up to 200C.

• Nuclear Power Operations & Infrastructure: Installed on critical auxiliary loops where dependable, manual verification of fluid movement is required.

• Water Processing & Management Plants: Providing clear inspection windows along high-volume intake headers and chemical dosing circuits to track fluid purity.

Frequently Asked Questions (FAQ)

Q: How is the port size of the single-window sight glass customized for existing skids?

A: To ensure a clean drop-in fit and optimal integration with your existing infrastructure, FlowBiz custom-tailors the port sizes and end connections of each unit based on your specific application requirements. Sourcing teams provide their nominal line diameters and flange ratings (such as ANSI or DIN) during the ordering process, and our Gandhidham engineering division precision-machines the housing to ensure an accurate dimension and a better fix.

Q: When is it ideal to select a single-window sight glass over a full-view tubular design?

A: The choice is driven by your system's pressure profile and the required structural durability:

• Single-Window Sight Glass: Features a flat glass disc heavily bolted inside a compact metal casing. It is the preferred choice for high-pressure lines, severe thermal cycles up to 200C, and environments prone to external impact, where maximum structural safety is the priority.

• Full-View Tubular Sight Glass: Provides 360-degree visibility but has a larger exposed glass surface area, making it better suited for low-to-medium pressure pipelines requiring panoramic flow inspection.

Q: Why is manual operation and visual inspection considered highly reliable in modern automated facilities?

A: While digital flow meters, mass sensors, and online turbidity meters track digital flow data well, they can give false readings if their internal elements become fouled or miscalibrated. A manual Single Window Sight Glass requires no electrical connections, wiring runs, or complex software. It provides field technicians with an instant, direct visual audit tool to verify fluid movement, color, and purity in real time, making it an indispensable asset for daily process troubleshooting.

Q: What specific indicators show that an inspection window disc needs to be replaced?

A: Maintenance teams should visually audit pipeline viewports during routine facility walk-throughs. A toughened borosilicate glass disc should be scheduled for immediate replacement if it shows any signs of internal clouding, surface scoring, deep chemical etching, edge chipping, or micro-fractures. Swapping out worn glass discs early maintains high optical clarity, preserves leakproof system integrity, and prevents sudden pressure boundary failures.
